On-Cloud Recording

This document describes how to enable on-cloud recording of TUICallKit to help you archive and review important calls. Here, two schemes are provided: automatic recording and RESTful API-based recording.
Note:
TUICallKit integrates multiple basic Tencent Cloud PaaS services, and its audio/video capabilities rely on TRTC. To use the on-cloud recording feature of TUICallKit, you need to configure it in the TRTC console .

Scheme 1. Automatic Recording (Recommended)

We recommend you use the automatic recording scheme. In this scheme, recording is not manually started or stopped by you. Instead, recording tasks are managed on the TRTC backend, and a call will be recorded automatically when there is an audio/video stream being upstreamed. You can integrate it quickly and easily as follows:
1. Find the application of the target SDKAppId in Application Management in the TRTC console and enter the Advanced Feature page.
2. In the Advanced Function configuration page, you can see the option for On-cloud recording configuration. Click on Global Auto-Recording to enter the configuration popup window.



3. We recommend the following configuration parameter settings for audio/video call business scenarios such as one-to-one and group calls. You can also customize the recording template as needed.



Note:
Global recording can mix the streams of up to eight users. If a call involves more than eight users (including the local user), the stream of the last user cannot be recorded.
After the global automatic recording feature is enabled, when a call is answered and there is audio/video being upstreamed, a recording task will be triggered automatically, and recording will stop automatically when the call ends. If a user leaves the room due to poor network conditions or other exceptions, the recording backend will automatically stop the recording task based on the configured MaxIdleTime value (maximum idle time, which is five seconds by default) to avoid incurring unnecessary fees.
4. After the template is created, select Global Auto-Recording.

Scheme 2. RESTful API-Based Recording

If the automatic recording scheme doesn't meet your needs, you can also use the more flexible RESTful API-based recording scheme. In this scheme, you can record and subscribe to a specified anchor in the room, customize the layout of mixed streams, and update the layout and subscription during recording. However, using its features requires using it together with the business backend service and performing complex integration operations:
1. Find the application of the target SDKAppId in Application Management in the TRTC console and enter the Advanced Feature page.
2. In the Advanced Function configuration page, you can see the option for On-cloud recording configuration. Click on Global Auto-Recording to enter the configuration popup window. Manual custom recording, i.e., the RESTful API-based recording mode, is selected by default.



3. Then, you can call the RESTful API CreateCloudRecording to start on-cloud recording. Here, we recommend you listen on the notification event of TUICallObserver to start recording when an audio/video call starts. Below is the Java code sample:
TUICallEngine.createInstance(context).addObserver(new TUICallObserver() {
    @Override
    public void onCallBegin(TUICommonDefine.RoomId roomId, TUICallDefine.MediaType callMediaType, TUICallDefine.Role callRole) {
        // Tell your business backend to start a recording task by using the relevant RESTful API.
    }
});
4. Because a call may be hung up on the client due to an exception such as poor network conditions or process termination, to stop recording, we recommend you subscribe to the callback for the TRTC room status (for more information, see Event Callbacks) and call the RESTful API DeleteCloudRecording to stop the on-cloud recording task when receiving the callback for TRTC room dismissal.

FAQs

1. How do I view the detailed recording durations?

You can view the detailed recording durations on the On-Cloud Recording page in the TRTC console.

2. How do I view recorded files?

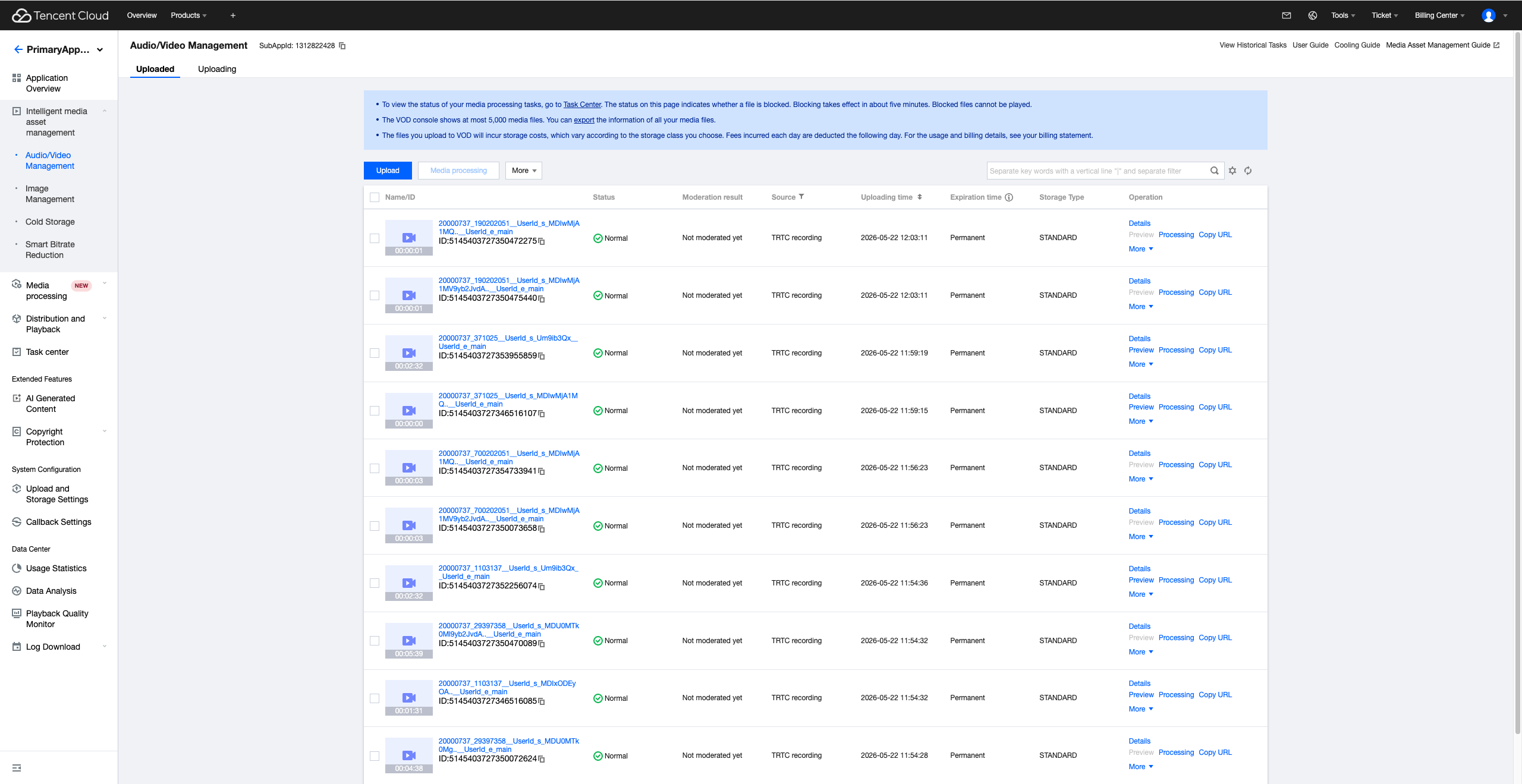

Log in to the VOD console, select Video/Audio Management on the left sidebar, click Search by prefix above the list, select Search by prefix, and enter the keyword in the search box. The recording filenames are in the following formats:
The filename format of an MP4 single-stream recording file: <SdkAppId>_<RoomId>_UserId_s_<UserId>_UserId_e_<MediaId>_<Index>.mp4
The filename format of an MP4 mixed-stream recording file: <SdkAppId>_<RoomId>_<Index>.mp4
