Custom Definition Click Redirect

Feature Overview

Custom click actions let you pass specific parameters (like custom payload fields) in push notifications, so your app can perform targeted navigation—such as deep linking to specific pages or triggering specific features. This guide covers support for custom click actions across different push notification channels and implementation details.

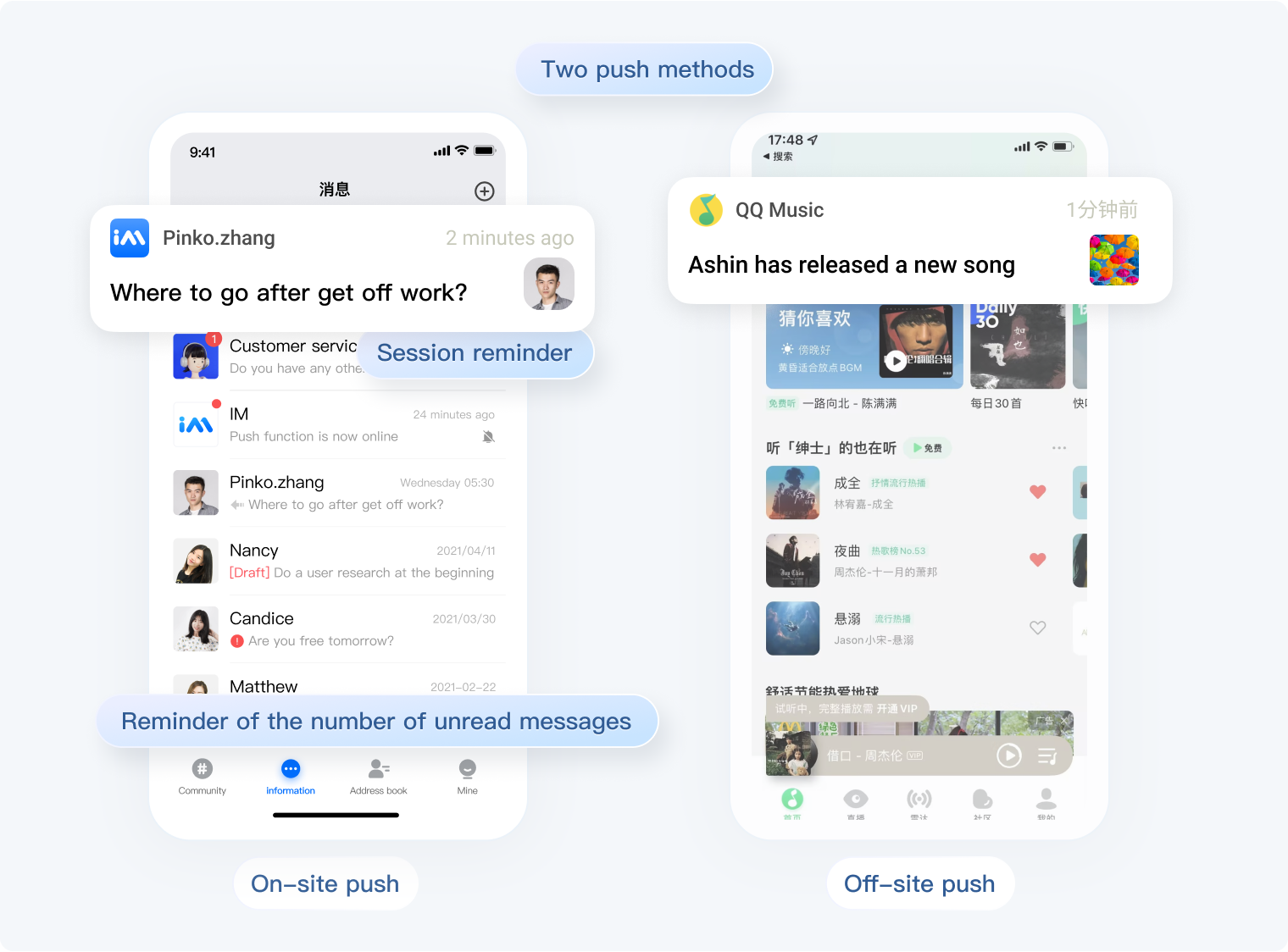

Effect Example



Vendor Channel Support

Device type.
Whether custom redirect is supported
iOS
Supported
Huawei
Supported
Honor
Supported
Xiaomi
Supported
vivo
Supported
OPPO
Supported
Meizu
Supported
FCM
Supported

Implementation

Android
iOS
Flutter

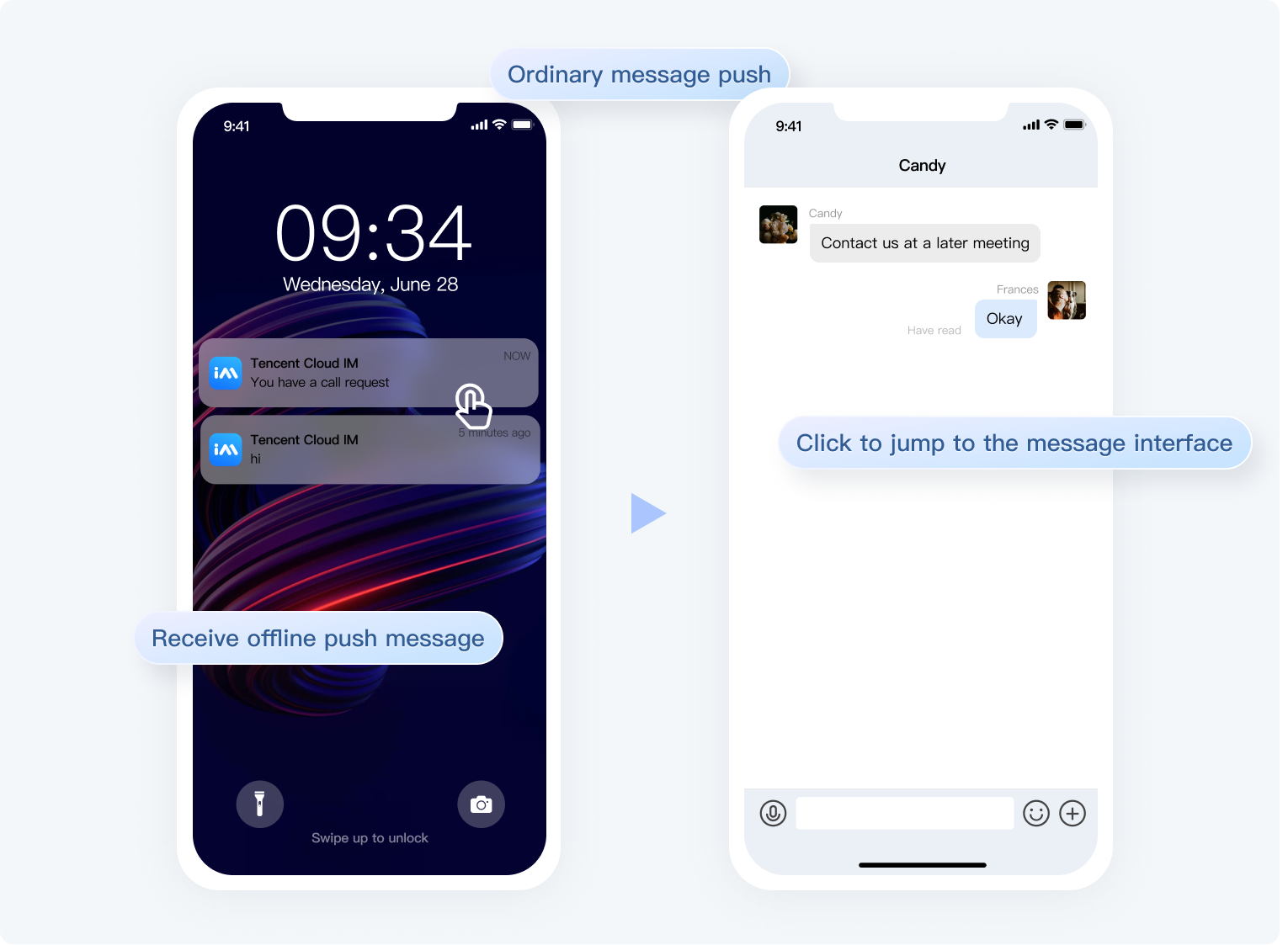

After receiving an offline push, the notification bar will display the push message as shown. Clicking on the notification bar can custom open the application interface.

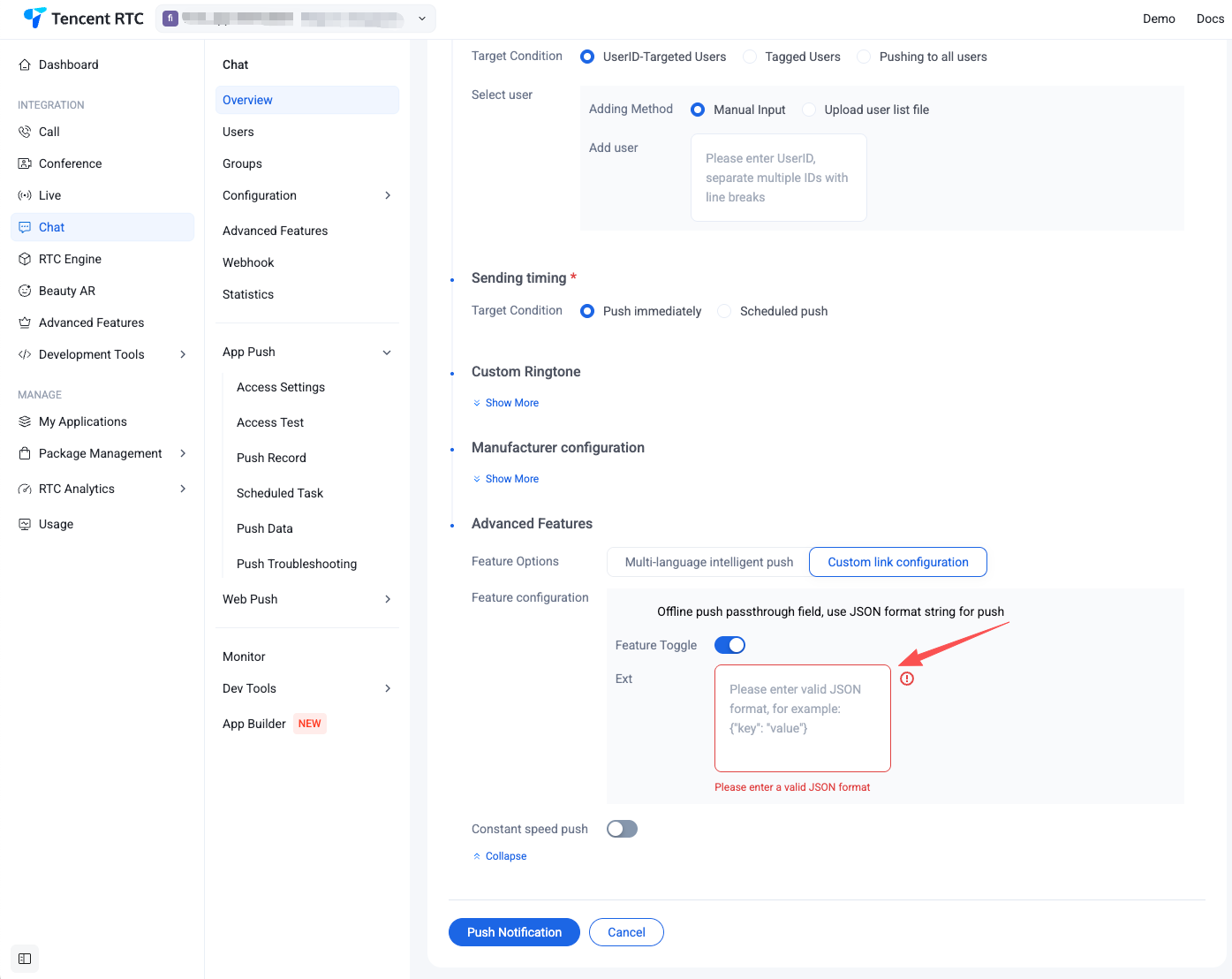

1. For console configuration, click on 'Subsequent Actions' and configure as follows, choose Open the specified interface within the app, and the plugin users will by default fill in the jump parameters.

2. Send message fill pass-through parameter
restAPI
SDK API
Console
{
    "MsgBody": [...] // Related description here
    "OfflinePushInfo": {
        "PushFlag": 0,
        "Title":"Offline Push Title"
        "Desc": "offline push content"
        "Ext": "{\"entity\":{\"key1\":\"value1\",\"key2\":\"value2\"}}" // passthrough field, push uses string in json format
    }
}
V2TIMOfflinePushInfo v2TIMOfflinePushInfo = new V2TIMOfflinePushInfo();
v2TIMOfflinePushInfo.setTitle("Push Title");
v2TIMOfflinePushInfo.setDesc("push content");

OfflinePushExtInfo offlinePushExtInfo = new OfflinePushExtInfo();
offlinePushExtInfo.getBusinessInfo().setSenderId("senderID");
offlinePushExtInfo.getBusinessInfo().setSenderNickName("senderNickName");
if (chatInfo.getType() == V2TIMConversation.V2TIM_GROUP) {
    offlinePushExtInfo.getBusinessInfo().setChatType(V2TIMConversation.V2TIM_GROUP);
    offlinePushExtInfo.getBusinessInfo().setSenderId("groupID");
}
// Pass-through field fill
v2TIMOfflinePushInfo.setExt(new Gson().toJson(offlinePushExtInfo).getBytes());

final V2TIMMessage v2TIMMessage = message.getTimMessage();
String msgID = V2TIMManager.getMessageManager().sendMessage(v2TIMMessage, isGroup ? null : userID, isGroup ? groupID : null,
    V2TIMMessage.V2TIM_PRIORITY_DEFAULT, false, v2TIMOfflinePushInfo, new V2TIMSendCallback<V2TIMMessage>() {
        @Override
        public void onProgress(int progress) {

        }

        @Override
        public void onError(int code, String desc) {
            TUIChatUtils.callbackOnError(callBack, TAG, code, desc);
        }

        @Override
        public void onSuccess(V2TIMMessage v2TIMMessage) {
            TUIChatLog.v(TAG, "sendMessage onSuccess:" + v2TIMMessage.getMsgID());
            message.setMsgTime(v2TIMMessage.getTimestamp());
            TUIChatUtils.callbackOnSuccess(callBack, message);
        }
    });

3. After receiving the push message, clicking the notification bar will trigger the component to callback the click event and pass through the offline message.
Custom click redirect implementation
Custom click redirect implementation (old solution)
Note:
It is recommended to place the registration callback timing in the onCreate() function of the application.
TIMPushManager.getInstance().addPushListener(new TIMPushListener() {
    @Override
    public void onNotificationClicked(String ext) {
        Log.d(TAG, "onNotificationClicked =" + ext);
        // Getting ext for Definition redirect

        // Example: navigate to the corresponding chat interface
        OfflinePushExtInfo offlinePushExtInfo = null;
        try {
            offlinePushExtInfo = new Gson().fromJson(extString, OfflinePushExtInfo.class);
            if (offlinePushExtInfo.getBusinessInfo().getChatAction() == OfflinePushExtInfo.REDIRECT_ACTION_CHAT) {
                String senderId = offlinePushExtInfo.getBusinessInfo().getSenderId();
                if (TextUtils.isEmpty(senderId)) {
                    return;
                }
                TUIUtils.startChat(senderId, offlinePushExtInfo.getBusinessInfo().getSenderNickName(), offlinePushExtInfo.getBusinessInfo().getChatType());
            }
        } catch (Exception e) {
            Log.e(TAG, "getOfflinePushExtInfo e: " + e);
        }
    }
});
The component will notify the application in the form of a callback or broadcast, and the application can configure the app's page jump in the callback.
Note:
It is recommended to place the registration callback timing in the onCreate() function of the application.
1. The callback method is as follows:
TUICore.registerEvent(TUIConstants.TIMPush.EVENT_NOTIFY, TUIConstants.TIMPush.EVENT_NOTIFY_NOTIFICATION, new ITUINotification() {
        @Override
        public void onNotifyEvent(String key, String subKey, Map<String, Object> param) {
            Log.d(TAG, "onNotifyEvent key = " + key + "subKey = " + subKey);
            if (TUIConstants.TIMPush.EVENT_NOTIFY.equals(key)) {
                if (TUIConstants.TIMPush.EVENT_NOTIFY_NOTIFICATION.equals(subKey)) {
                    if (param != null) {
                        String extString = (String)param.get(TUIConstants.TIMPush.NOTIFICATION_EXT_KEY);
                        // Getting ext for Definition redirect

                    }
                }
            }
        }
    });
2. The broadcast method is as follows:
// Dynamic Broadcast Registration
IntentFilter intentFilter = new IntentFilter();
intentFilter.addAction(TUIConstants.TIMPush.NOTIFICATION_BROADCAST_ACTION);
LocalBroadcastManager.getInstance(context).registerReceiver(localReceiver, intentFilter);

// Broadcast Receiver
public class OfflinePushLocalReceiver extends BroadcastReceiver {
    public static final String TAG = OfflinePushLocalReceiver.class.getSimpleName();

    @Override
    public void onReceive(Context context, Intent intent) {
        DemoLog.d(TAG, "BROADCAST_PUSH_RECEIVER intent = " + intent);
        if (intent != null) {
            String ext = intent.getStringExtra(TUIConstants.TIMPush.NOTIFICATION_EXT_KEY);
            // Getting ext for Definition redirect

        } else {
            Log.e(TAG, "onReceive ext is null");
        }
    }
}
If you need to customize the parsing of received remote push notifications, you can implement it as follows:
1. Send message fill pass-through parameter
restAPI
SDK API
Console
{
    "MsgBody": [...] // Related description here
    "OfflinePushInfo": {
        "PushFlag": 0,
        "Title":"Offline Push Title"
        "Desc": "offline push content"
        "Ext": "{\"entity\":{\"key1\":\"value1\",\"key2\":\"value2\"}}" // passthrough field, push uses string in json format
    }
}

#import <TUICore/OfflinePushExtInfo.h>

V2TIMOfflinePushInfo *pushInfo = [[V2TIMOfflinePushInfo alloc] init];
pushInfo.title = @"Push Title";
pushInfo.desc = @"push content";
BOOL isGroup = groupID.length > 0;
NSString *senderId = isGroup ? (groupID) : ([TUILogin getUserID]);
NSString *nickName = isGroup ? (conversationData.title) : ([TUILogin getNickName] ?: [TUILogin getUserID]);

OfflinePushExtInfo *extInfo = [[OfflinePushExtInfo alloc] init];
OfflinePushExtBusinessInfo * entity = extInfo.entity;
entity.action = 1;
entity.content = @"push content";
entity.sender = senderId;
entity.nickname = nickName;
entity.faceUrl = [TUILogin getFaceUrl] ?: @"";
entity.chatType = [isGroup ? @(V2TIM_GROUP) : @(V2TIM_C2C) integerValue];
entity.version = kOfflinePushVersion;
// Pass-through field
pushInfo.ext = [extInfo toReportExtString];

2. Click the offline push message, and the component will Webhook the click event and pass-through fill parameters.
Custom click redirect implementation
Custom click redirect implementation (old solution)
Note:
It is recommended to place the registration callback timing in the didFinishLaunchingWithOptions function of the AppDelegate.
- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
    [TIMPushManager addPushListener:self];
    return YES;
}
#pragma mark - TIMPushListener
- (void)onNotificationClicked:(NSString *)ext {
        // Getting ext for Definition redirect
}
You need to implement the - onRemoteNotificationReceived method in the AppDelegate.m file.
#pragma mark - TIMPush

- (BOOL)onRemoteNotificationReceived:(NSString *)notice {
    //- If YES is returned, TIMPush will not execute the built-in TUIKit offline push parsing logic, leaving it entirely to you to handle.
    //NSString *ext = notice;
    //OfflinePushExtInfo *info = [OfflinePushExtInfo createWithExtString:ext];
    //return YES;

    //- If NO is returned, TIMPush will continue to execute the built-in TUIKit offline push parsing logic and continue to callback - navigateToBuiltInChatViewController:groupID: method.
    return NO;
}

Step 1: Manufacturer Configuration

For console configuration, click on 'Subsequent Actions' and configure as follows, choose Open the specified interface within the app, and the plugin users will by default fill in the jump parameters.


Step 2: Client Code Configuration

Refer to Client Code Configuration, complete the configuration.

Step 3: Handle Message Click Callback and Parse Parameters

If you need to customize the parsing of received remote push notifications, you can implement it as follows:
Custom click redirect implementation
Custom click redirect implementation (old solution)
Note:
It is recommended to register the callback in the main() function at the program entry.
TIMPushListener timPushListener = TIMPushListener(
      onNotificationClicked: (String ext) {
        debugPrint("ext: $ext");
        // Getting ext for Definition redirect

      }
    );
tencentCloudChatPush.addPushListener(listener: timPushListener);
Please define a function to accept push message click callback events.
Define the function with the parameter format {required String ext, String? userID, String? groupID}.
Among them, the ext field carries the complete ext information specified by the sender. If not specified, there is a default value. You can parse this field to navigate to the corresponding page.
The userID and groupID fields are automatically parsed by the plugin from the ext JSON String to get the single chat userID and group chat groupID information. If you do not customize the ext field, the ext field is specified by the SDK or UIKit by default, and you can use this default parsing. If parsing fails, it will be null.
You can define a function to receive this callback and use it to navigate to the corresponding Session Page or your Business Page.
Example below:
void _onNotificationClicked({required String ext, String? userID, String? groupID}) {
  print("_onNotificationClicked: $ext, userID: $userID, groupID: $groupID");
  if (userID != null || groupID != null) {
    // Redirect to the corresponding Message page based on userID or groupID.
  } else {
    // Based on the ext field, write your own parsing method to redirect to the corresponding page.
  }
}
Please note, do not call in the main method of the Flutter program entry.
After successfully calling the TencentCloudChatPush().registerPush method, you can receive offline push notifications.
TencentCloudChatPush().registerPush(
    onNotificationClicked: _onNotificationClicked,
    sdkAppId: Your sdkAppId,
    appKey: "client key",
    apnsCertificateID: Your configured Certificate ID);
