Run Sample Demo

This guide walks you through getting started with the TUILiveKit Flutter Demo in just 10 minutes. Experience a fully featured UI for video live streaming and voice chat room scenarios.
Prerequisites
Enable the Service
Refer to Enable the Service to obtain a TUILiveKit trial version. Then, go to the Console for application management, and get the following:
SDKAppID: Application identifier (required). Tencent Cloud uses SDKAppId for billing and details.
SDKSecretKey: Application secret key, used to initialize the configuration file with secret information.
Environment Preparation
Ensure your development environment meets the following requirements before running the demo:
Platform
Description
Flutter
Flutter: Version 3.27.4 or later
Dart: Version 3.6.2 or later
Android
Android Studio: Version 3.5 or later
Android OS: Devices running Android 5.0 or later
iOS
Xcode: Version 15 or later
iOS: Devices running iOS 13.0 or later
CocoaPods: CocoaPods environment installed. If not installed, see the CocoaPods Official Installation Guide.
IDE Environment Configuration
For efficient Flutter development, we recommend using Visual Studio Code as your IDE, as suggested in the Flutter documentation. See Visual Studio Code for setup instructions.
Instructions
Get the Demo
1. Download the Source Code: Download the TUILiveKit source code from GitHub, or run the following command in your terminal:
git clone https://github.com/Tencent-RTC/TUILiveKit.git﻿
2. Install Dependencies: Use the terminal to navigate to the directory containing the pubspec.yaml file for the example project, then run flutter pub get to install dependencies:
# The pubspec.yaml file for the example project is located at TUILiveKit/Flutter/livekit
cd TUILiveKit/Flutter/livekit/example
# Install dependencies
flutter pub get
After completing these steps, open the TUILiveKit/Flutter/livekit directory in Visual Studio Code.
Setup
1. Configure SDKAppID and SDKSecretKey: In the livekit project, enter your SDKAppID and SDKSecretKey in the example/lib/debug/generate_test_user_sig.dart file:
﻿
Note：
In this demo, authentication is handled by configuring the SecretKey in the client code. The SecretKey can be decompiled and compromised. If leaked, attackers can steal your Tencent Cloud traffic. This approach is only suitable for local demo runs and feature debugging.
For production, generate the UserSig on your server. When a UserSig is required, your app should request a dynamic UserSig from your backend for authentication. See Generating UserSig on the Server for details.

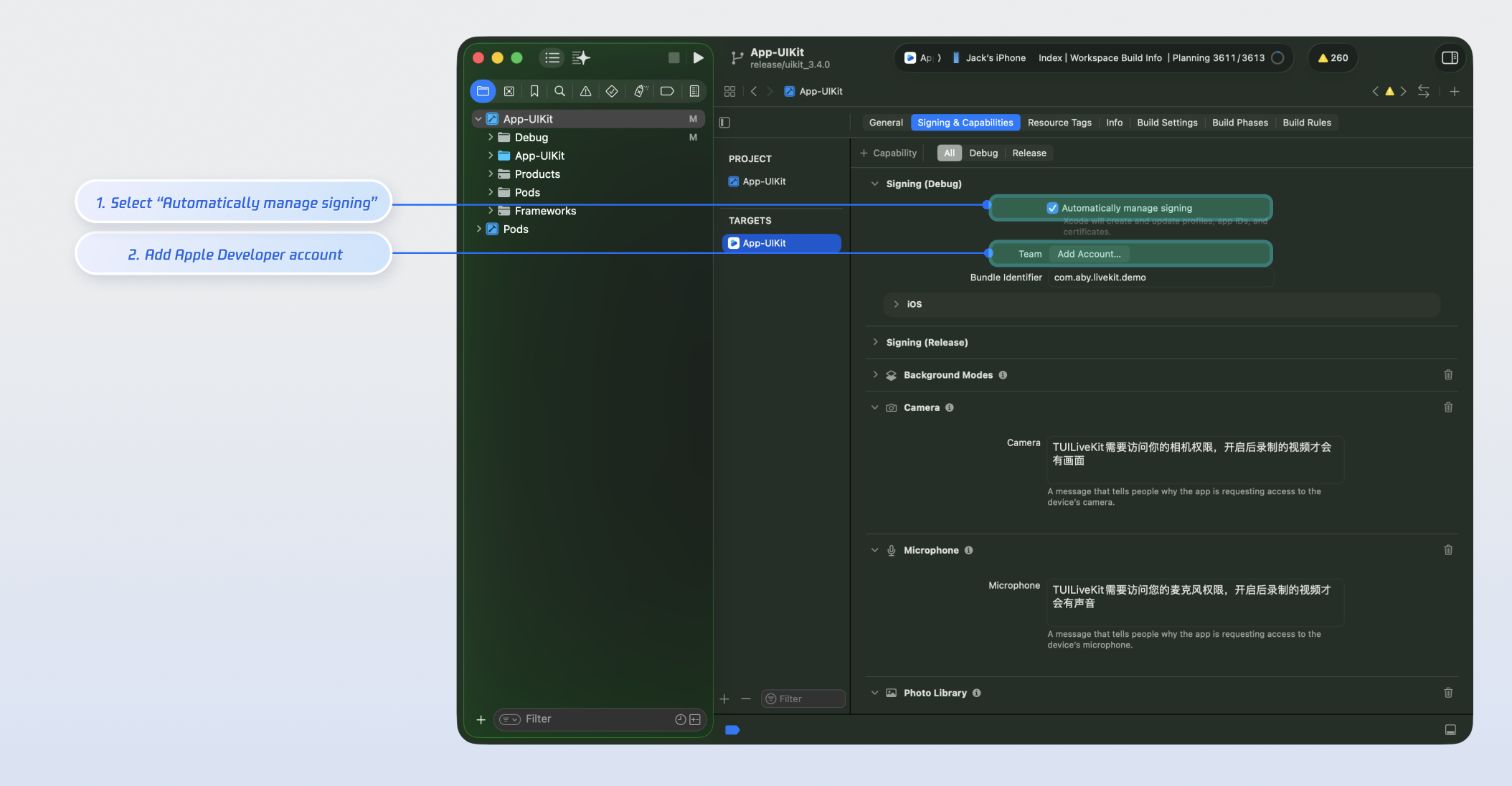

2. Configure Apple Developer Signing: In the project's TARGETS under the Signing & Capabilities tab, select Automatically manage signing and configure your Apple Developer account and Bundle Identifier:
﻿
Build and Run the Demo
Live streaming requires camera and microphone access. We recommend running and debugging the demo on a physical device.
Select Target Device
When you open a Flutter project in VS Code, the status bar displays Flutter-specific items, including the Flutter SDK version and device name (or "No Devices" if none are detected):
﻿
Note：
If you do not see the Flutter version or device information, your project may not be recognized as a Flutter project. Ensure the VS Code Workspace Folder contains a pubspec.yaml file.
If the status bar shows No Devices, Flutter has not detected any connected iOS or Android devices or emulators. Connect a device or launch an emulator.
The Flutter extension automatically selects the last connected device. If you have multiple devices or emulators connected, click the device name in the status bar to select your preferred device for running or debugging.

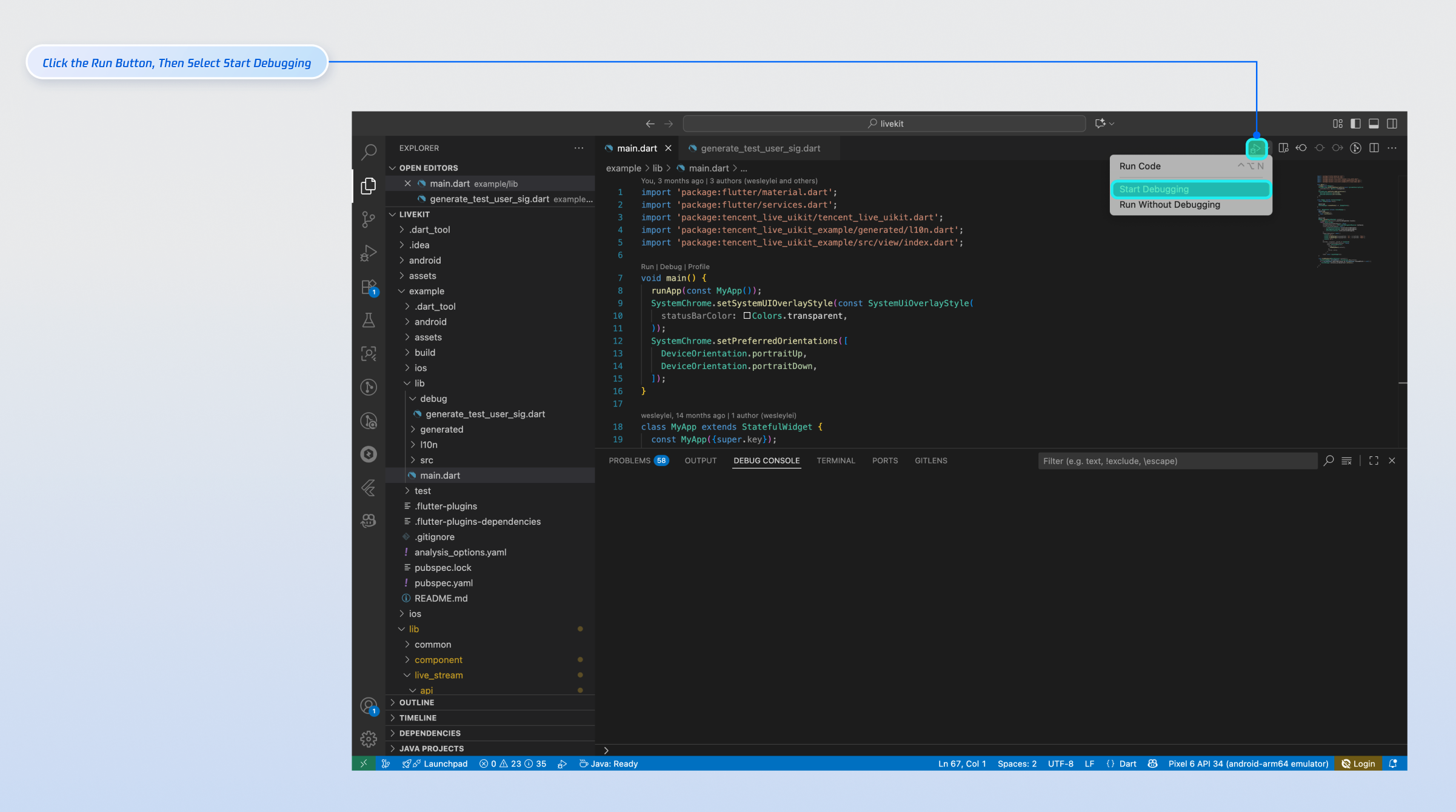

Run
﻿
Note：
For a complete live streaming experience, run the demo on two devices and log in with two different users (for example, one as the host and one as the audience).
Experience the Basic Features

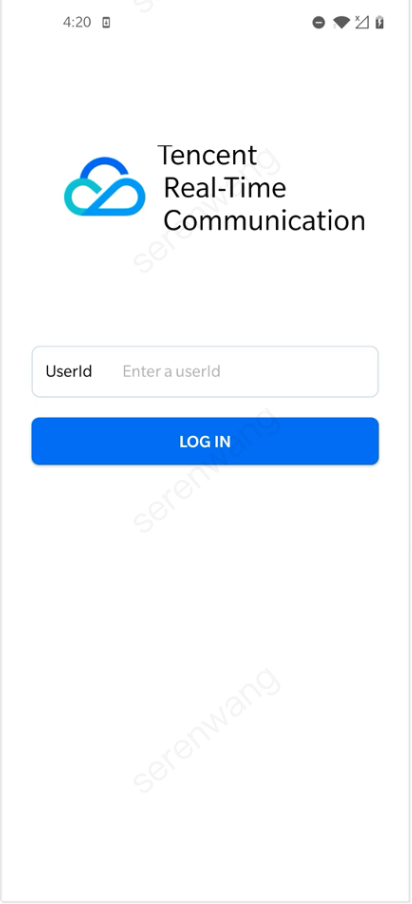

1. Login & Registration

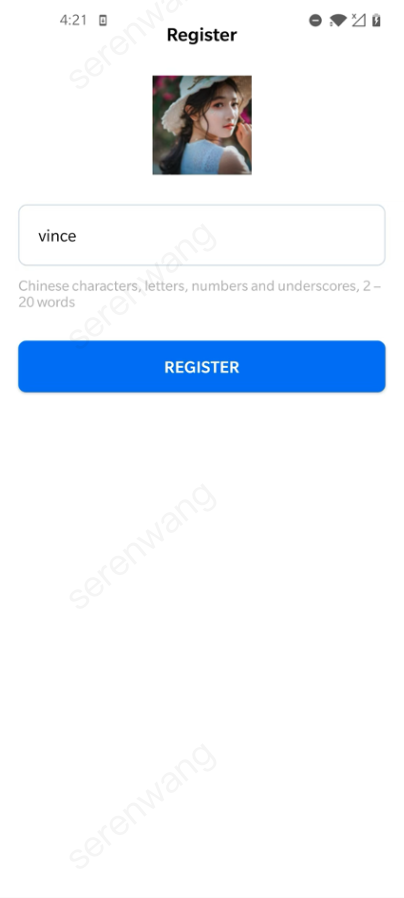

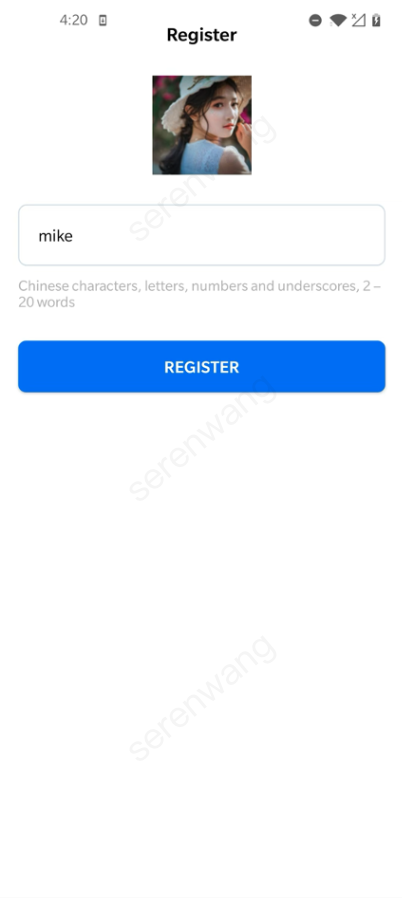

Enter your ID in the UserID field. If the UserID has not been used before, you’ll be redirected to the registration page to set your avatar and nickname.
Anchor（mike）
﻿
Audience（vince）
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
Note：
Do not use simple UserIDs such as "1", "123", or "111".
TRTC does not support multi-end login for the same UserID, and these simple UserIDs are likely to be used by others during collaborative development, which can cause login failures. Use distinctive UserIDs during debugging.
2. Video Live Streaming
Click Live > Video Live to start a video live streaming session.
Live Streaming List

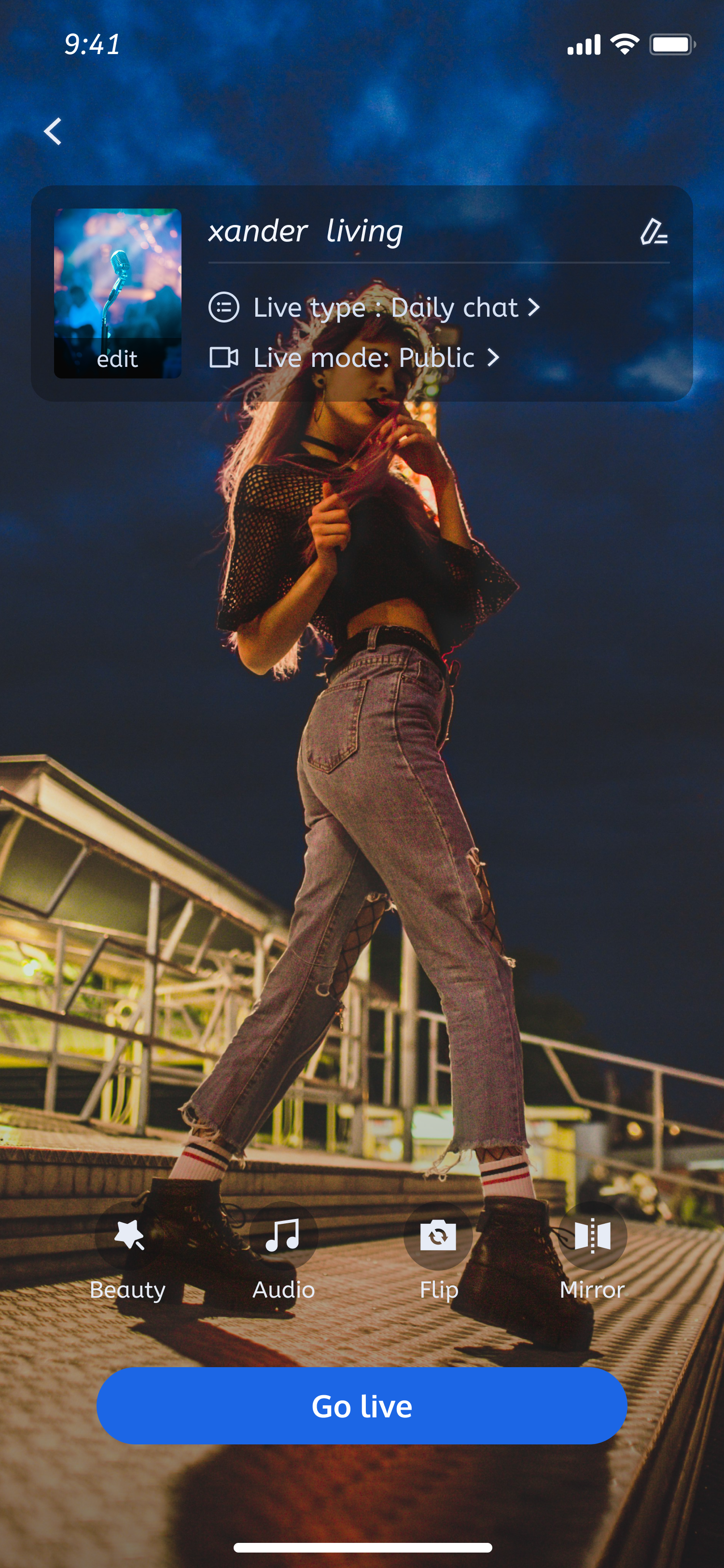

Host Preview Before Going Live

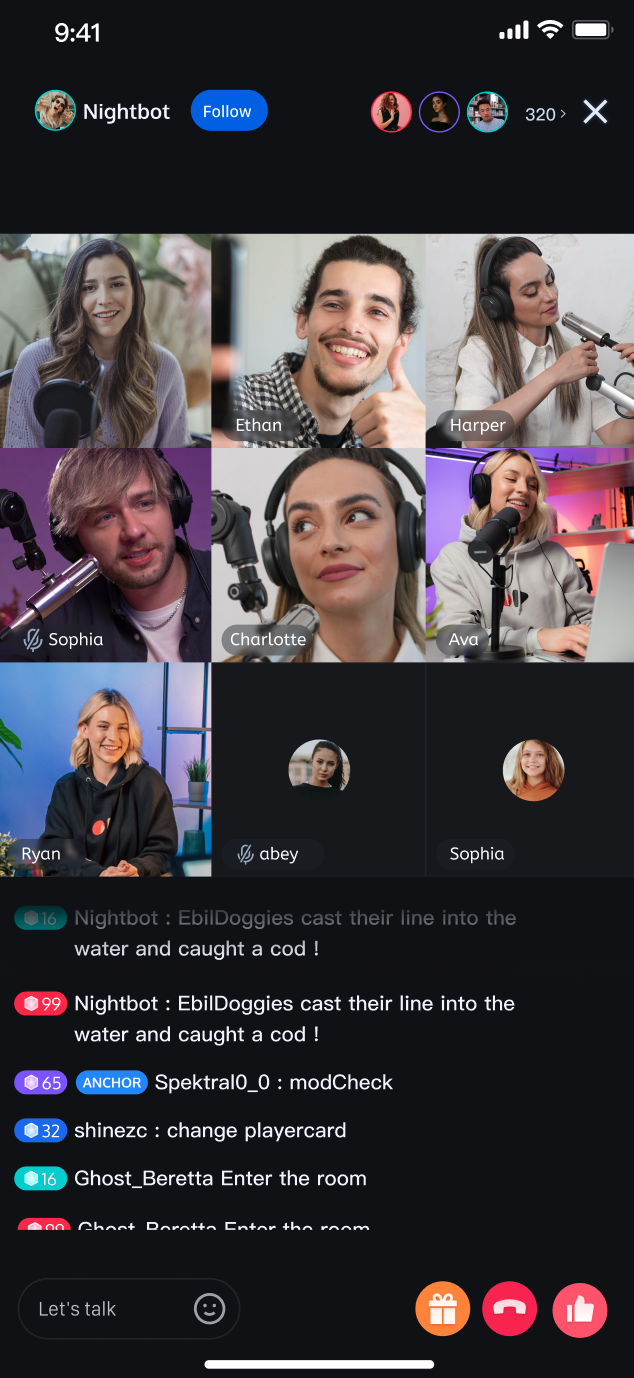

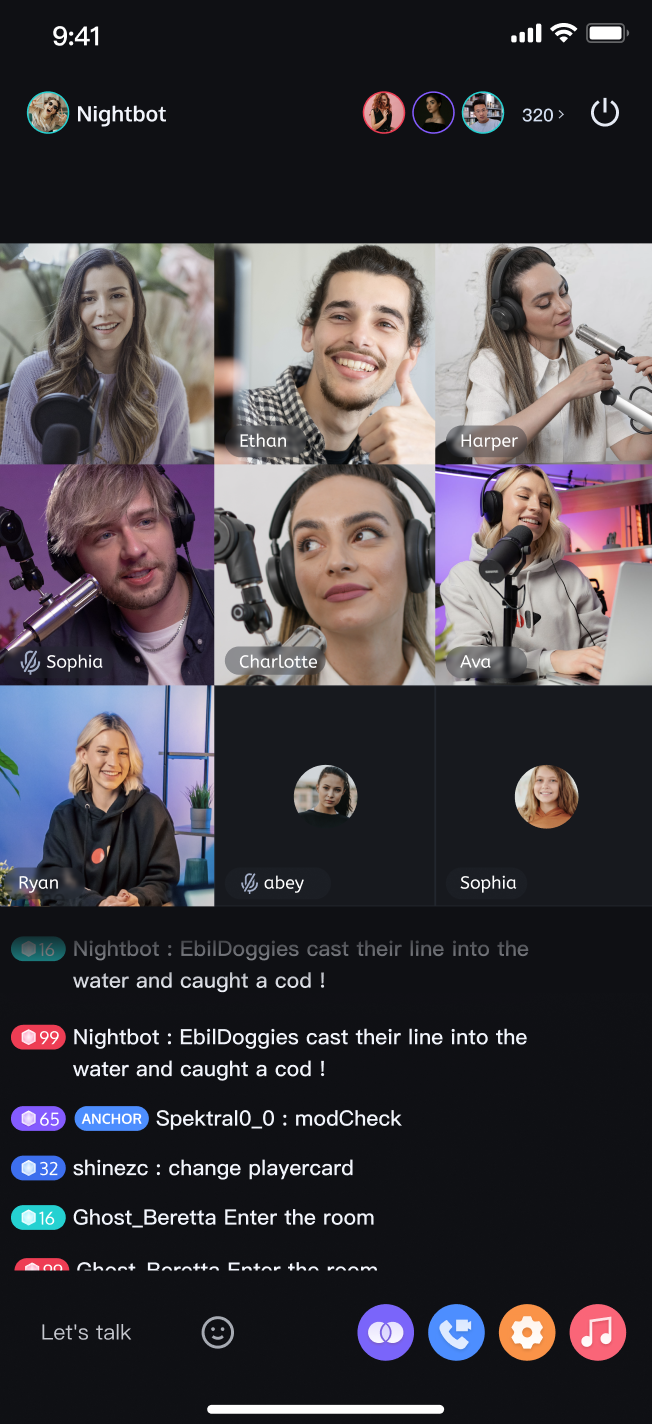

Host Starts Video Live Streaming
Audience Watches Live Stream
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
3. Voice Chat Room
Click Live > Voice Room to start a voice chat session.

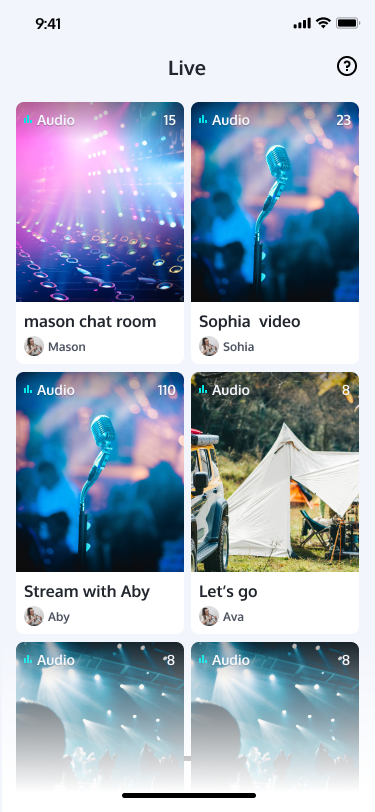

Live Streaming List

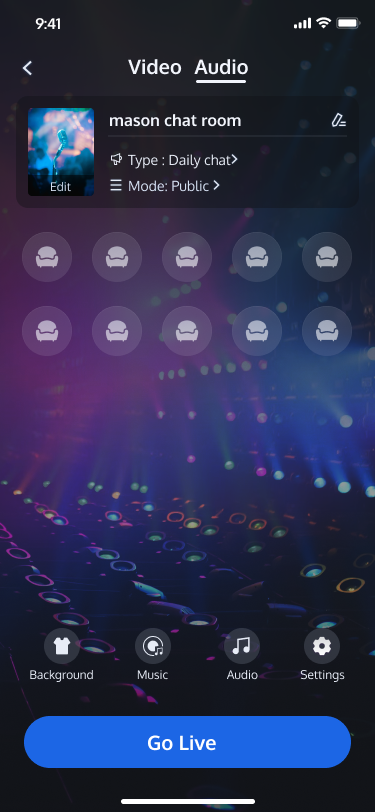

Host Preview Before Going Live

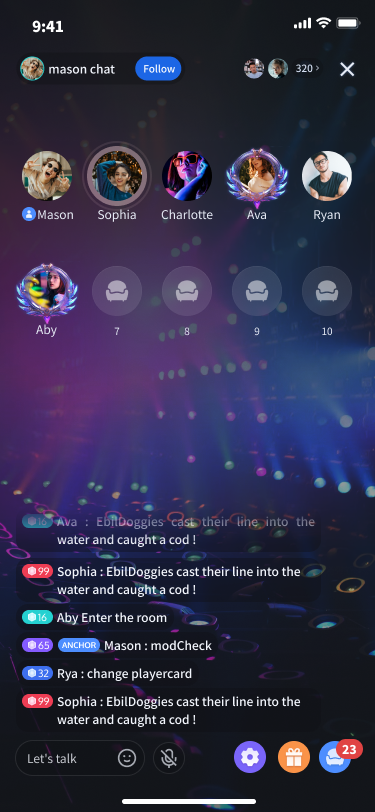

Host Starts Voice Chat Live

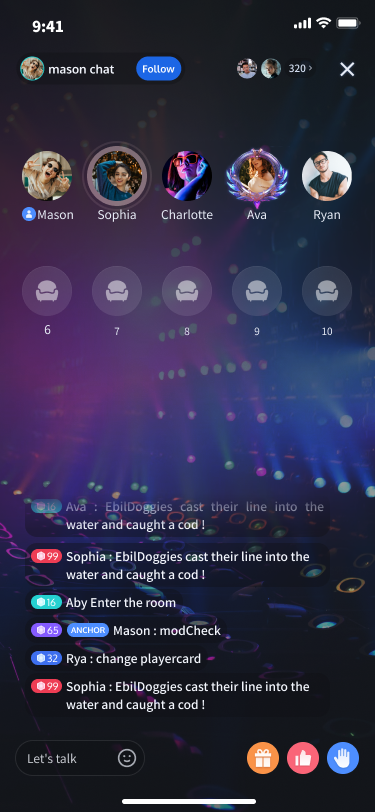

Audience Joins Voice Chat Room
﻿
﻿
﻿
﻿
﻿
﻿
Next Steps
After running the Demo, refer to the following integration guides to add these features to your own project:
﻿
Description
Integration Guide
Video Live Streaming
Supports ultra-low latency HD streaming, multi-user co-hosting/PK, real-time beauty filters, bullet comments, and gift interactions—enabling you to build interactive video live streaming scenarios.
﻿Integration Guide﻿
Voice Chat Room
Delivers ultra-clear audio quality, supports multi-user co-hosting, seat management, and real-time text chat—ideal for KTV, social, or gaming-themed rooms.
﻿Integration Guide﻿
FAQs
CocoaPods Installation Method
Install CocoaPods using gem: Run sudo gem install cocoapods in your terminal.
Tip：During sudo gem install cocoapods, you may be prompted for your computer password. Enter your administrator password as instructed.
Real Device Debugging
Enable developer mode to run on a real device.
iOS: Connect your device to your computer, then go to Settings > Privacy & Security > Developer Mode and enable developer mode.
Android: Enable developer mode by tapping the build number multiple times in settings. If you cannot find it, refer to your device's official website or search online for instructions.
Get a signature error or login failure when running the demo
Verify that the SDKAppID and SDKSecretKey entered in example/lib/generate_test_user_sig.dart are correct and match the values from the Tencent Cloud Console Application Management page.
Encounter error code "-3301" with the message "Services are not available in your region" after entering the room
If you receive this error code, contact us for support.
Contact Us
If you have questions or need support during integration or usage, join the Telegram Technical Group, or contact us.
