Broadcaster Streaming Page

Feature Overview
The Live Stream Publishing Page enables features like audience mic connection, anchor connection, cross-room PK, live room information, audience list, gift display, and bullet screen after the anchor starts streaming. This document describes how to complete the access work within 10 minutes.

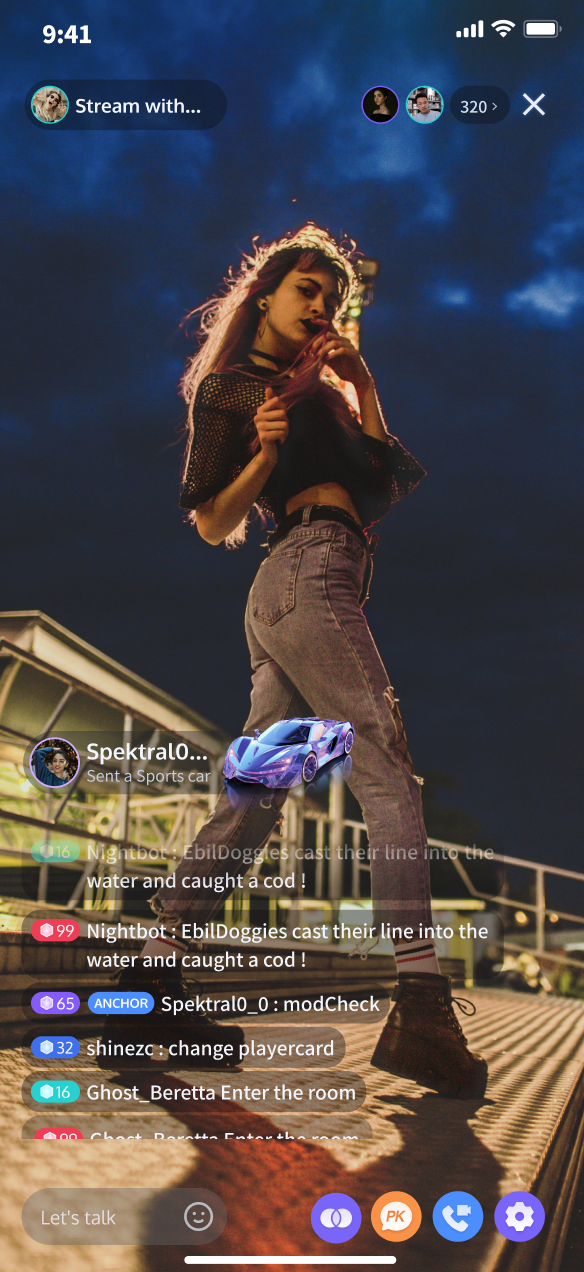

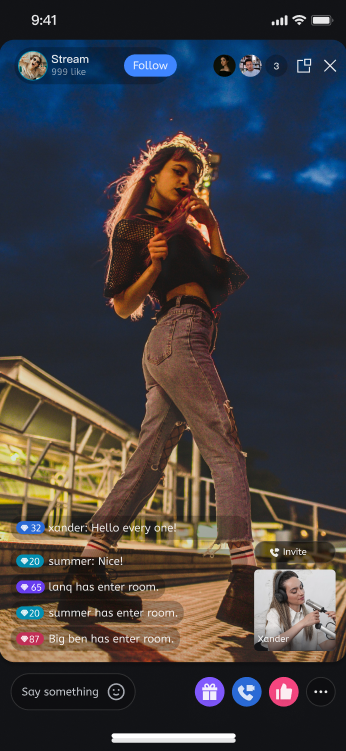

Live stream in progress

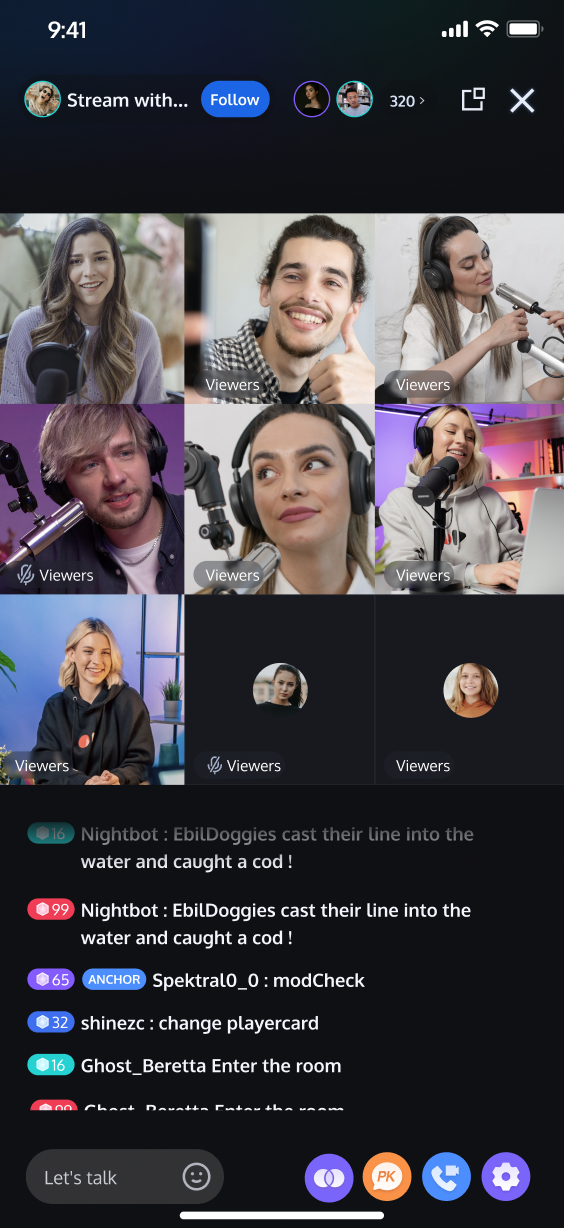

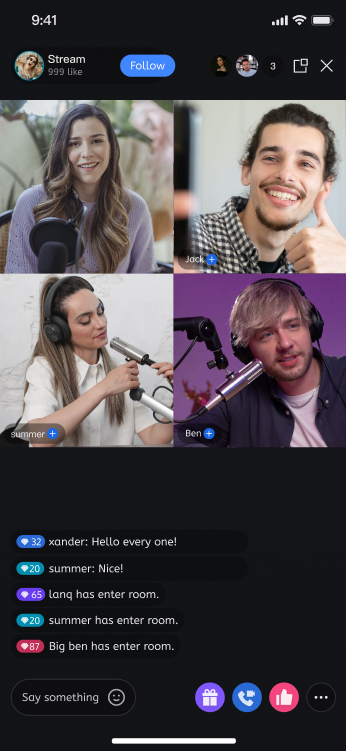

Anchor in co-anchoring
﻿
﻿
Feature Integration
Note:
Before completing the feature integration, you must finish the integration steps in the overview.
Creating Live Stream Publishing Page View and Initializing
Swift
var liveInfo = LiveInfo()
liveInfo.roomId = roomId
liveInfo.name = state.roomName
liveInfo.coverUrl = state.coverUrl
liveInfo.isPublicVisible = state.privacyMode == .public
﻿
let anchorView = AnchorView(liveInfo: liveInfo, coreView: self.coreView, behavior: .createRoom)
anchorView.delegate = self
Load the Live Stream Publishing Page Into ViewController
Swift
public override func loadView() {
    view = rootView
}

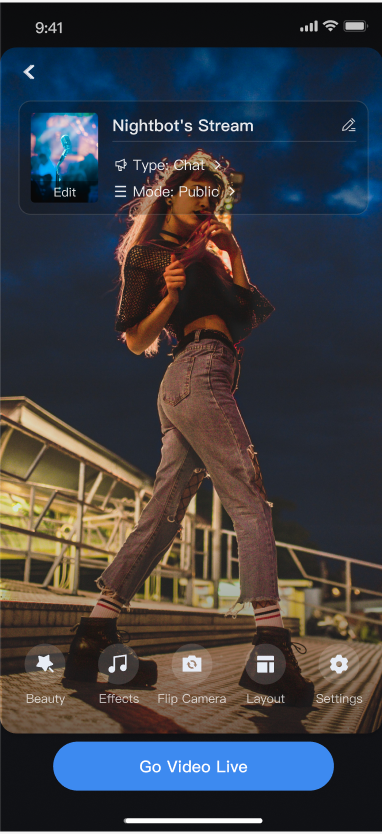

Listening for the Go Live Button Click Event
Swift
extension TUILiveRoomAnchorViewController: AnchorViewDelegate {
    public func onClickFloatWindow() {

    }

    public func onEndLiving(state: AnchorState) {
﻿
    }
}
Feature Customization
Hide the Operation Section at the Top of the Host Page
Swift
anchorView.disableHeaderLiveData(true)

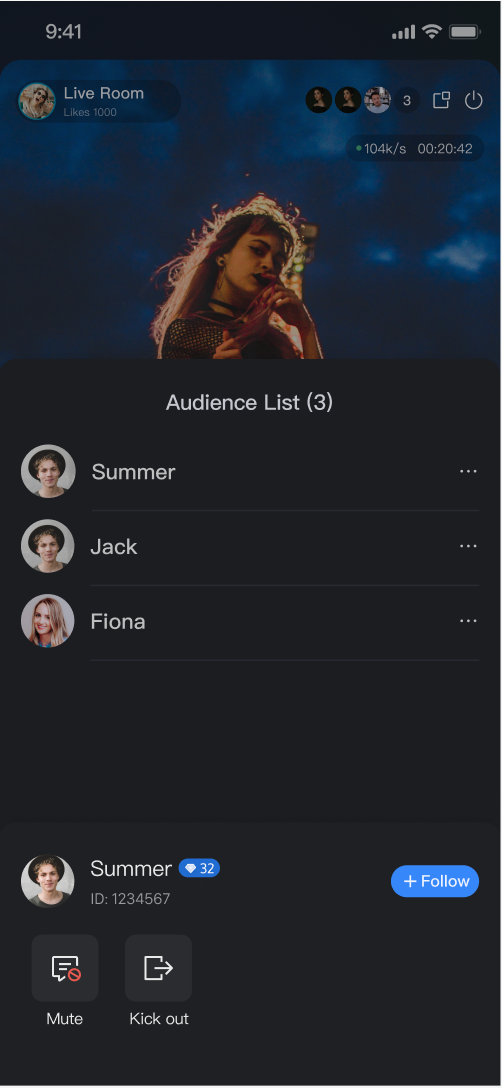

Hide the Audience List Feature in the Top Operation Section
Swift
anchorView.disableHeaderVisitorCnt(true)
Hide the Co-Anchoring Function in the Bottom Operation Section
Swift
anchorView.disableFooterCoGuest(true)
Hide the Connection Feature in the Bottom Operation Section
Swift
anchorView.disableFooterCoHost(true)
Hide the PK Feature in the Bottom Operation Section
Swift
anchorView.disableFooterBattle(true)
Hide the Sound Effect Feature in More Settings Panel
Swift
anchorView.disableFooterSoundEffect(true)
﻿
﻿
