Virtual Gifts

GiftStore is a dedicated module within AtomicXCore for managing live room gifting features. It enables you to build a complete gifting system for your live streaming application, supporting robust monetization and interactive experiences.

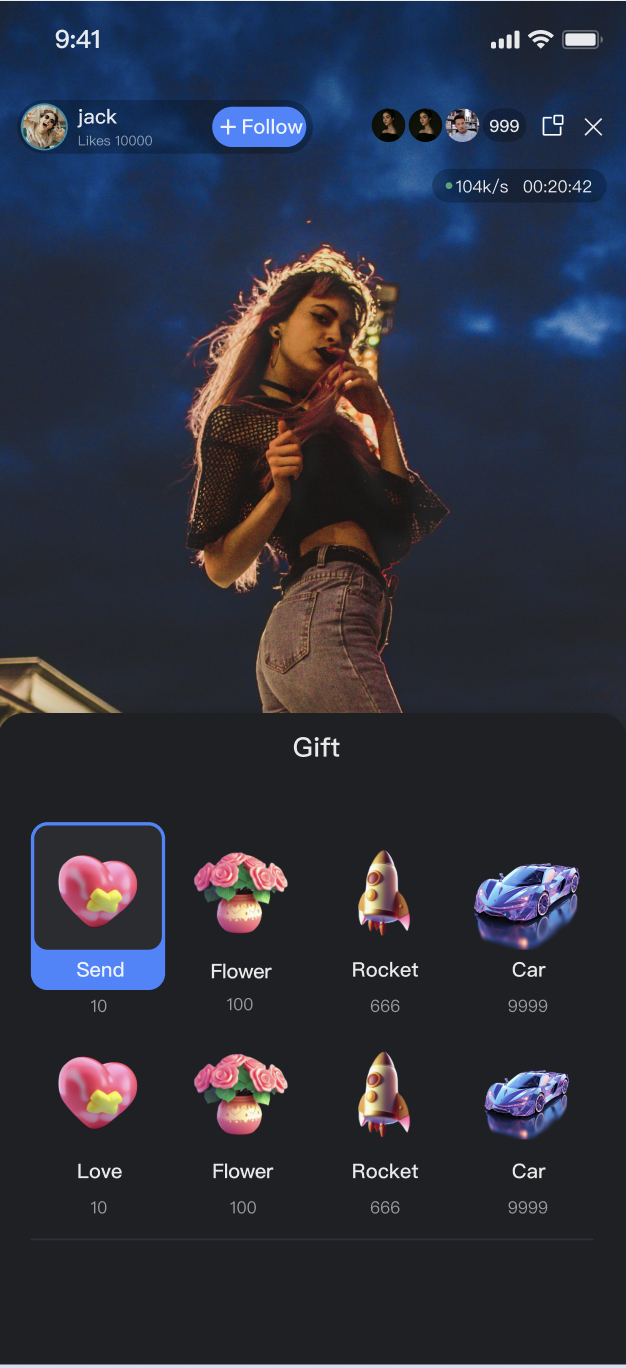

Gift Panel

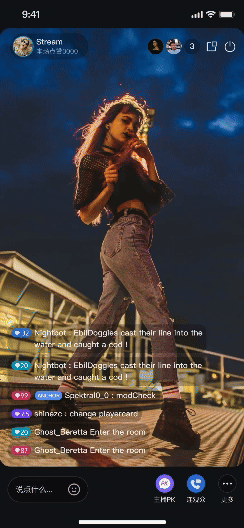

Barrage Gift
Full-Screen Gift










Core Features

Gift List Retrieval: Retrieve gift panel data from the server, including gift categories and details.
Send Gift: Viewers can send virtual gifts to the host.
Gift Event Broadcasting: Real-time synchronization of gift events across all clients in the room to trigger animations and barrage notifications.

Core Concepts

Core Concept
Type
Core Responsibilities & Description
Gift
struct
Represents a gift data model, including ID, name, icon URL, animation resource URL (resourceURL), price (coins), and more.
GiftCategory
struct
Represents a grouping of gifts (e.g., "Popular", "Luxury").
Contains a category name and an array of Gift objects.
GiftState
struct
Represents the current state of the gift module.
The core property, usableGifts, is a StateFlow containing the full gift list from the server.
GiftEvent
enum
Defines the event listener for gift events in the live room. Currently, only onReceiveGift is available. This event is broadcast to all users in the room (including the sender) whenever a gift is successfully sent.
GiftStore
class
The core management class for gift features.
Used to fetch gift lists, execute send requests, and listen for global gift events.

Implementation

Step 1: Component Integration

Video Live Streaming: Please refer to Quick Start to integrate AtomicXCore.
Voice Chat Room: Please refer to Quick Start to integrate AtomicXCore.

Step 2: Initialize and Listen for Gift Events

Obtain a GiftStore instance and set up subscribers to receive gift events and gift list updates.

Implementation

1. Get Instance: Call GiftStore.create(liveID:) to obtain a GiftStore instance bound to the current live room.
2. Subscribe to Events: Subscribe to giftStore.giftEventPublisher to receive .onReceiveGift events.
3. Subscribe to State: Subscribe to giftStore.state to obtain the usableGifts gift list.

Code Example

import Foundation
import AtomicXCore
import Combine

class GiftManager {
private let liveId: String
private let giftStore: GiftStore
private var cancellables = Set<AnyCancellable>()
// Expose gift events for the UI layer to subscribe and trigger animations
let giftEventPublisher = PassthroughSubject<GiftEvent, Never>()
// Expose gift list externally
let giftListPublisher = CurrentValueSubject<[GiftCategory], Never>([])

init(liveId: String) {
self.liveId = liveId
// 1. Obtain GiftStore instance using liveId
self.giftStore = GiftStore.create(liveID: liveId)
subscribeToGiftState()
subscribeToGiftEvents()
}

/// 2. Subscribe to gift events
private func subscribeToGiftEvents() {
giftStore.giftEventPublisher
.receive(on: DispatchQueue.main)
.sink { [weak self] event in
// Forward the event to the UI layer for handling
self?.giftEventPublisher.send(event)
}
.store(in: &cancellables)
}
/// 3. Subscribe to gift list state
private func subscribeToGiftState() {
giftStore.state
.subscribe(StatePublisherSelector(keyPath: \GiftState.usableGifts))
.receive(on: DispatchQueue.main)
.assign(to: \.value, on: giftListPublisher)
.store(in: &cancellables)
}
}

Gift List Struct Parameters

GiftCategory Parameter Description
Parameter
Type
Description
categoryID
String
Unique ID of the gift category.
name
String
Display name of the gift category.
desc
String
Description of the gift category.
extensionInfo
[String: String]
Extension information field.
giftList
Array of Gift objects contained in this category.
Gift Parameter Description
Parameter
Type
Description
giftID
String
Unique ID of the gift.
name
String
Display name of the gift.
desc
String
Description of the gift.
iconURL
String
Gift icon URL.
resourceURL
String
Gift animation resource URL.
level
UInt
Gift level.
coins
UInt
Gift price.
extensionInfo
[String: String]
Extension information field.

Step 3: Retrieve Gift List

Call the refreshUsableGifts method to fetch gift data from the server.

Implementation

1. Call API: Call giftStore.refreshUsableGifts (typically after entering the room).
2. Handle Callback: Handle the completion block for error checking.
3. Receive Data: Upon success, the data flows automatically through the giftListPublisher set up in Step 2.

Code Example

extension GiftManager {
/// Refresh the gift list from the server
func fetchGiftList() {
giftStore.refreshUsableGifts { result in
switch result {
case .success:
print("Gift list fetched successfully")
// On success, data is automatically updated via the state subscription
case .failure(let error):
print("Failed to fetch gift list: \(error.localizedDescription)")
}
}
}
}

Step 4: Send Gift

Trigger the sending logic when a user interacts with the gift panel.

Implementation

1. Prepare Data: Retrieve the selected giftID and quantity (count) from your UI.
2. Call API: Call giftStore.sendGift(giftID:count:completion:).
3. Handle Result: Use the completion block only to handle failures (e.g., balance errors). Successful sends are handled via the global .onReceiveGift event listener to ensure consistency.

Code Example

extension GiftManager {
/// User sends a gift
func sendGift(giftID: String, count: UInt) {
giftStore.sendGift(giftID: giftID, count: count) { result in
switch result {
case .success:
print("Gift \(giftID) sent successfully")
// After a successful send, everyone in the room, including the sender, will receive the onReceiveGift event
case .failure(let error):
print("Failed to send gift: \(error.localizedDescription)")
// Prompt the user, e.g., "Insufficient balance" or "Network error"
}
}
}
}

sendGift API Parameters

Parameter Name
Type
Description
giftID
String
The unique ID of the gift to send.
count
UInt
The number of gifts to send.
completion
CompletionClosure?
Callback after sending is complete.

Advanced Features

The GiftStore module is designed to work seamlessly with your backend infrastructure. This section outlines how to configure assets and integrate advanced playback features.

Gift Asset Configuration

You can fully customize your gift inventory (names, icons, prices, animations) to match your branding.

Implementation

1. Server-Side Configuration: Use the LiveKit server REST API to manage gift information, categories, and multi-language support. See the Gift Configuration Guide.
2. Client Fetch: On the client, call refreshUsableGifts to retrieve configuration data.
3. UI Display: Use the retrieved List<GiftCategory> to render the gift panel.

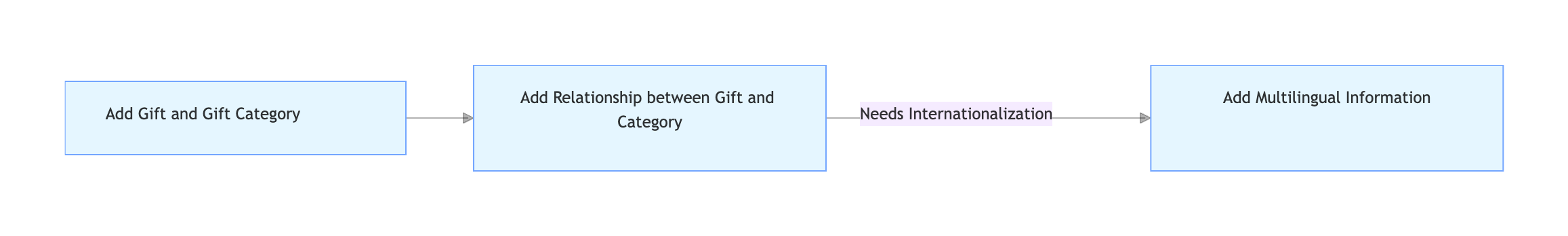

Configuration Sequence Diagram



Related REST API Interfaces Overview

Interface Category
Interface
Request Example
​Gift Management
Add Gift Information
Example
Delete Gift Information
Example
Query Gift Information
Example
Gift Category Management
Add Gift Category Information
Example
Delete Specific Gift Category Information
Example
Get Specific Gift Category Information
Example
Gift Relationship Management
Add Relationship between a Specific Gift Category and Gift
Example
Delete Relationship between a Specific Gift Category and Gift
Example
Get Gift Relationships under a Specific Gift Category
Example
Gift Multi-language Management
Add Gift Multi-language Information
Example
Delete Specific Gift Multi-language Information
Example
Get Gift Multi-language Information
Example
Add Gift Category Multi-language Information
Example
Delete Specific Gift Category Multi-language Information
Example
Get Gift Category Multi-language Information
Example

Billing and Gift Deduction Process

AtomicXCore delegates the billing logic to your backend to ensure security and flexibility.

Workflow

1. Backend Callback Configuration: Configure your billing system's callback URL in the LiveKit backend. See Callback Configuration Documentation.
2. Client Request: The client calls sendGift.
3. Backend Verification: The LiveKit backend calls your callback URL; your billing system processes the deduction and returns the result.
4. Result Synchronization: If succeeds, AtomicXCore broadcasts the onReceiveGift event; if fails, the completion callback of sendGift receives an error.

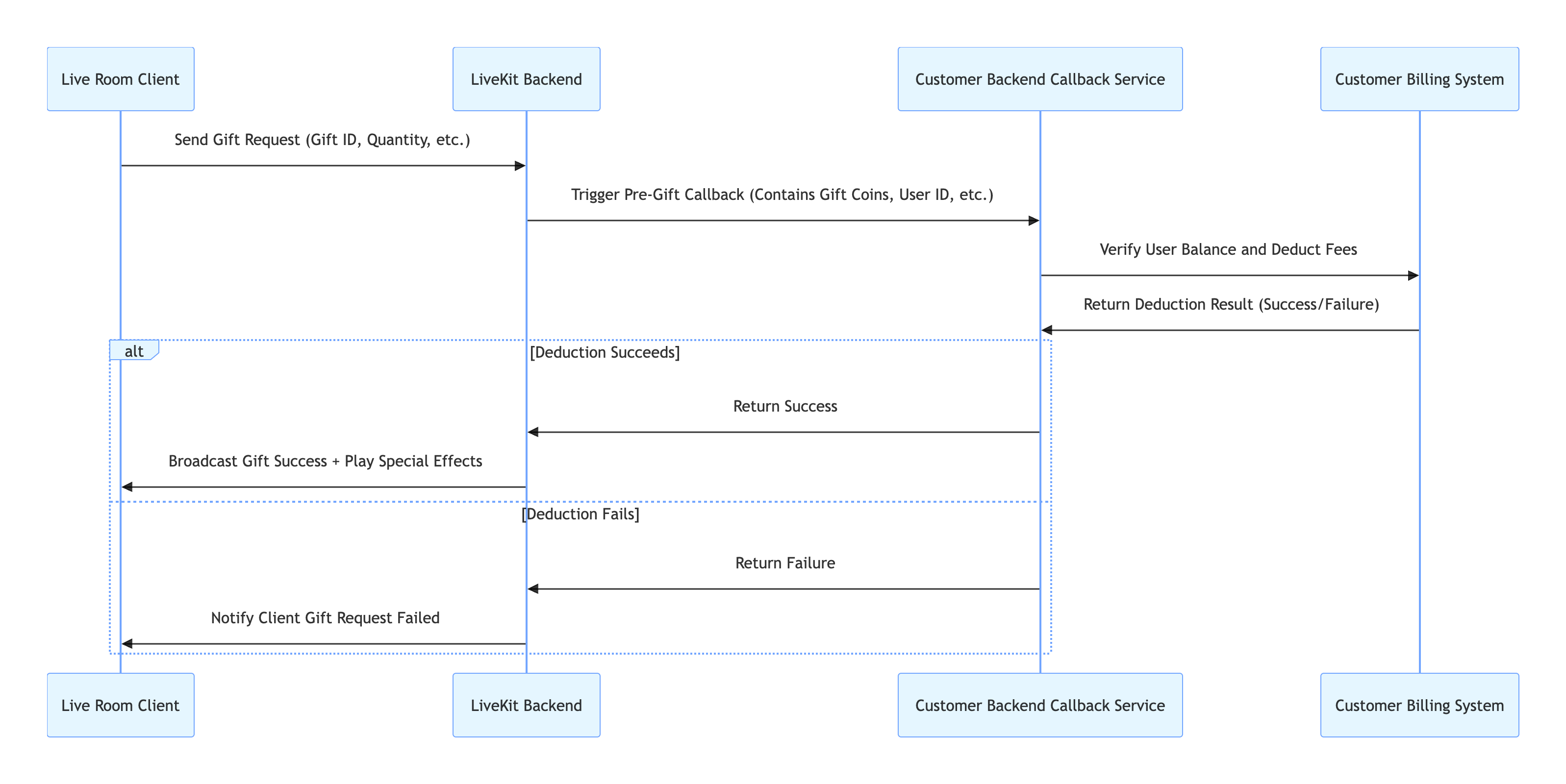

Call Flow



Related REST API Interfaces Overview

Interface
Description
Request Example
Callback Configuration - Callback before sending a gift
Pre-gifting validation hook.
Allows your backend to intercept gift requests to perform necessary checks (e.g., sufficient balance, risk control) before the gift is processed.
Example

Full-Screen Animation (SVGA Integration)

When a user sends a luxury gift (e.g., "Rocket", "Carnival"), play a full-screen animation (such as SVGA) to enhance engagement.

Implementation

AtomicXCore does not include a built-in gift animation player. Integrate a third-party library based on your requirements. Below is a comparison of two options:
Comparison Item
Basic Solution (SVGAPlayer-Android)
Advanced Solution (TCEffectPlayerKit)
Billing
Free (open source)
Paid (License Required). See Billing Guide
Integration Method
Manual integration via Gradle
Requires additional integration and authentication
Formats
SVGA only
SVGA, PAG, WebP, Lottie, MP4, and more
Performance
Good for files < 10MB
Optimized for large assets & complex layering
Recommended Scenario
Uniform SVGA format, controllable file size
Multiple formats or higher performance/device compatibility needs
This section demonstrates the basic solution. For the advanced solution, see the TCEffectPlayer Integration Guide.

Basic Solution Implementation: Using SVGAPlayer

1. Integrate SVGAPlayer: In your Podfile, add the dependency for SVGAPlayer and run pod install in the terminal.
target 'YourApp' do
# ... other pods
pod 'SVGAPlayer'
end
2. Listen for Gift Events: Subscribe to GiftStore's giftEventPublisher.
3. Parse and Play: When receiving an .onReceiveGift event, check if gift.resourceURL is valid and points to an SVGA file. If so, use SVGAParser to parse the URL and pass the parsed SVGAVideoEntity to the SVGAPlayer instance for playback.

Code Example

import UIKit
import AtomicXCore
import Combine
import SVGAPlayer // 1. Import

class LiveRoomViewController: UIViewController, SVGAPlayerDelegate {
private var giftManager: GiftManager!
private var cancellables = Set<AnyCancellable>()
private let svgaPlayer = SVGAPlayer() // 2. Prepare instance
private let svgaParser = SVGAParser()

override func viewDidLoad() {
super.viewDidLoad()
setupSVGAPlayer()
}

private func setupSVGAPlayer() {
svgaPlayer.delegate = self
svgaPlayer.loops = 1 // Play once by default
svgaPlayer.clearsAfterStop = true // Automatically clear after playback
view.addSubview(svgaPlayer)
svgaPlayer.frame = view.bounds // Full screen by default
svgaPlayer.isHidden = true
}

func setupGiftSubscription(liveId: String) {
self.giftManager = GiftManager(liveId: liveId)

giftManager.giftEventPublisher
.sink { [weak self] event in // 3. Listen for events
guard case .onReceiveGift(_, let gift, _, _) = event else { return }

if !gift.resourceURL.isEmpty, let url = URL(string: gift.resourceURL) { // 4. Parse and play
self?.playAnimation(from: url)
}
}
.store(in: &cancellables)
}

private func playAnimation(from url: URL) {
svgaParser.parse(with: url, completionBlock: { [weak self] videoItem in
guard let self = self, let videoItem = videoItem else { return }
DispatchQueue.main.async {
self.svgaPlayer.videoItem = videoItem
self.svgaPlayer.isHidden = false
self.svgaPlayer.startAnimation()
}
}, failureBlock: { error in
print("Failed to parse SVGA animation: \(error?.localizedDescription ?? "unknown error")")
// Add retry or error reporting logic as needed
})
}

func svgaPlayerDidFinishedAnimation(_ player: SVGAPlayer!) { /* ... Handle end of playback ... */ }
}

Display Gift Notifications in Barrage

Enhance social interaction by displaying a system notification in the public barrage (chat) area whenever a gift is sent (e.g., "[User] sent [Gift] x [Count]").

Implementation

1. Listen for Events: Subscribe to giftStore.giftEventPublisher.
2. Extract Information: After receiving the .onReceiveGift event, extract the sender, gift, and count.
3. Get Barrage Store: Use BarrageStore.create(liveID:) to get the instance bound to the current room.
4. Compose Message: Create a Barrage struct, set messageType = .text, and set textContent to the composed string (e.g., "[sender.userName] sent [gift.name] x [count]").
5. Insert Locally: Call barrageStore.appendLocalTip(message: giftTip) to insert the message into the local list.

Code Example

// In LiveRoomManager or a similar top-level manager
private func setupGiftToBarrageFlow() {
giftStore.giftEventPublisher
.receive(on: DispatchQueue.main)
.sink { [weak self] event in // 1. Listen for events
guard case .onReceiveGift(_, let gift, let count, let sender) = event else { return } // 2. Extract information

guard let self = self else { return }
// 3. Get BarrageStore (assume barrageStore is already initialized)

// 4. Compose message
let tipText = "\(sender.userName) sent \(gift.name) x \(count)"
var giftTip = Barrage()
giftTip.messageType = .text
giftTip.textContent = tipText
// Optional: set a special sender

// 5. Insert locally
self.barrageStore.appendLocalTip(message: giftTip)
}
.store(in: &cancellables)
}

API Documentation

For complete details on all public interfaces, properties, and methods of GiftStore and related classes, see the official API documentation for AtomicXCore. Key stores referenced in this guide include:
Store/Component
Feature Description
API Documentation
GiftStore
Fetch gift list, send/receive gifts, listen for gift events (including sender and gift details).
BarrageStore
Send text/custom barrage, maintain barrage list, listen to barrage status in real time.

FAQs

The gift list in GiftStore is empty. What should I do?

You must call refreshUsableGifts(completion) to fetch gift data from your backend. Ensure your backend is configured with gift data via the server REST API.

How do I implement multi-language display for gifts (e.g., Chinese, English)?

Use the GiftStore.setLanguage(language: String) API before calling refreshUsableGifts, passing the target language code (e.g., "en" or "zh-CN"). The server will return gift names and descriptions in the specified language.

I called sendGift, but the gift animation plays twice. Why?

The onReceiveGift event is broadcast to all room members, including the sender. If you update the UI both in the sendGift completion callback and in the onReceiveGift event, the animation will play twice.
Best Practice: Only update the UI (e.g., play animations, show barrage) in the onReceiveGift event handler. Use the sendGift completion callback only for handling failures (such as "Send failed" or "Insufficient balance").

Where is the gift deduction logic implemented?

Gift deduction is handled entirely by your billing system. AtomicXCore integrates with your billing system via a backend callback. When the client calls sendGift, your backend performs the deduction. After returning the result to the AtomicXCore backend, it determines whether to broadcast the gift event.

Will gift notifications be blocked by mute or message frequency controls?

No. Gift notifications (onReceiveGift events) are not affected by mute or frequency controls and are always delivered reliably.

What should I do if gift animation playback stutters?

Check your SVGA file size; the basic player recommends files no larger than 10MB. For large or complex animations, consider integrating the advanced effects player provided by TUILiveKit for improved performance.
