Live Stream List（React Native）

LiveListState is the central module in AtomicXCore for managing the live stream room list, creating and joining rooms, and maintaining room state. With LiveListState, you can implement full live stream lifecycle management within your application.


Core Features

Live Stream List Retrieval: Retrieve the current list of all public live stream rooms, with support for paginated loading.
Live Stream Lifecycle Management: Access a comprehensive set of interfaces to handle every stage of a live stream, including room creation, start, join, leave, and end.
Live Stream Information Update: Hosts can update public room information at any time, such as cover images, announcements, and more.
Real-Time Event Listening: Listen for key events like stream ending or users being removed from a room.
Custom Business Data: Flexible metadata (metaData) lets you store and synchronize any business-relevant information in a room, such as live stream status, music details, custom roles, and more.

Implementation Steps

Step 1: Component Integration

Live streaming: Refer to Quick Access for seamless integration with AtomicXCore and service access.
Voice chat room: Refer to Quick Access for integration with AtomicXCore and access completed.

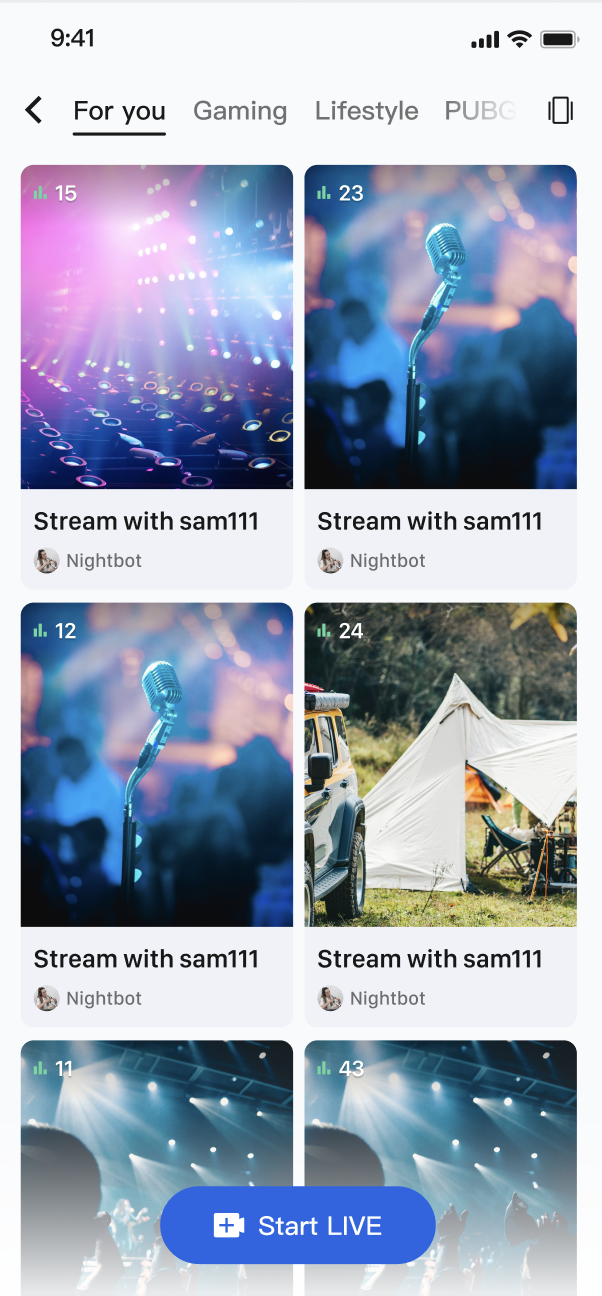

Step 2: Audience Entry from the Live Stream List

Build a page to display the live stream list. When a user taps a card, retrieve the liveID and navigate to the audience viewing page.
import React, { useEffect } from 'react';
import {
  StyleSheet, Text, View, FlatList, TouchableOpacity,
  Dimensions, ImageBackground,
} from 'react-native';
import { useLiveListState } from 'react-native-tuikit-atomic-x/lib/module/atomic-x/state/LiveListState';

const defaultCover = 'https://liteav-test-1252463788.cos.ap-guangzhou.myqcloud.com/voice_room/voice_room_cover1.png';
const { width: SCREEN_WIDTH } = Dimensions.get('window');
const CARD_GAP = 12;
const CARD_PADDING = 16;
const CARD_WIDTH = (SCREEN_WIDTH - CARD_PADDING * 2 - CARD_GAP) / 2;
const CARD_HEIGHT = CARD_WIDTH * 1.3;

// Live Stream Card Component
function LiveCard({ item, onPress }) {
  return (
    <TouchableOpacity style={styles.card} activeOpacity={0.75} onPress={onPress}>
      <ImageBackground
        source={{ uri: item.coverURL || defaultCover }}
        style={styles.cardBg}
        resizeMode="cover"
      >
        <View style={styles.viewerBadge}>
          <Text style={styles.viewerBadgeText}>{item.totalViewerCount || 0} viewers</Text>
        </View>
        <View style={styles.bottomInfo}>
          <Text style={styles.liveName} numberOfLines={1}>{item.liveName}</Text>
          <Text style={styles.ownerName} numberOfLines={1}>{item.liveOwner?.userName}</Text>
        </View>
      </ImageBackground>
    </TouchableOpacity>
  );
}

export default function LiveListScreen({ navigation }) {
  // State management
  const { liveList, liveListCursor, fetchLiveList, joinLive } = useLiveListState();

  // Initialization
  useEffect(() => {
    fetchLiveList({ cursor: liveListCursor, count: 20 });
  }, []);

  // Join Live Stream
  const handleJoinLive = (live) => {
    joinLive({
      liveID: live.liveID,
      onSuccess: () => {
        navigation.navigate('Audience', { liveID: live.liveID }); // Navigate to your audience page
      },
      onError: (error) => {
        console.log('Failed to enter voice chat room', error);
      },
    });
  };

  return (
    <View style={styles.container}>
      {/* Live Stream List */}
      <FlatList
        data={liveList || []}
        keyExtractor={(item) => item.liveID}
        numColumns={2}
        columnWrapperStyle={styles.row}
        contentContainerStyle={styles.listContent}
        renderItem={({ item }) => (
          <LiveCard item={item} onPress={() => handleJoinLive(item)} />
        )}
      />
    </View>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
    backgroundColor: '#fff',
  },
  listContent: {
    paddingHorizontal: CARD_PADDING,
    paddingTop: 12,
  },
  row: {
    justifyContent: 'space-between',
    marginBottom: CARD_GAP,
  },
  card: {
    width: CARD_WIDTH,
    height: CARD_HEIGHT,
    borderRadius: 12,
    overflow: 'hidden',
  },
  cardBg: {
    flex: 1,
    justifyContent: 'space-between',
  },
  viewerBadge: {
    alignSelf: 'flex-start',
    backgroundColor: 'rgba(0, 0, 0, 0.45)',
    borderRadius: 10,
    paddingHorizontal: 8,
    paddingVertical: 3,
    margin: 8,
  },
  viewerBadgeText: {
    fontSize: 11,
    color: '#fff',
  },
  bottomInfo: {
    padding: 8,
    paddingTop: 20,
    backgroundColor: 'rgba(0, 0, 0, 0.35)',
  },
  liveName: {
    fontSize: 14,
    fontWeight: '600',
    color: '#fff',
  },
  ownerName: {
    fontSize: 12,
    color: 'rgba(255, 255, 255, 0.8)',
    marginTop: 2,
  },
});
LiveInfo Parameter Description
Parameter Name
Type
Description
liveID
string
Unique identifier for the live stream room
liveName
string
Title of the live stream room
coverURL
string
Cover image URL for the live stream room
liveOwner
LiveUserInfo
Host's profile information
totalViewerCount
number
Total number of viewers in the live stream room
categoryList
[number]
List of category tags for the live stream room
notice
string
Announcement for the live stream room
metaData
[string: string]
Developer-defined metadata for advanced business use cases

Advanced Features

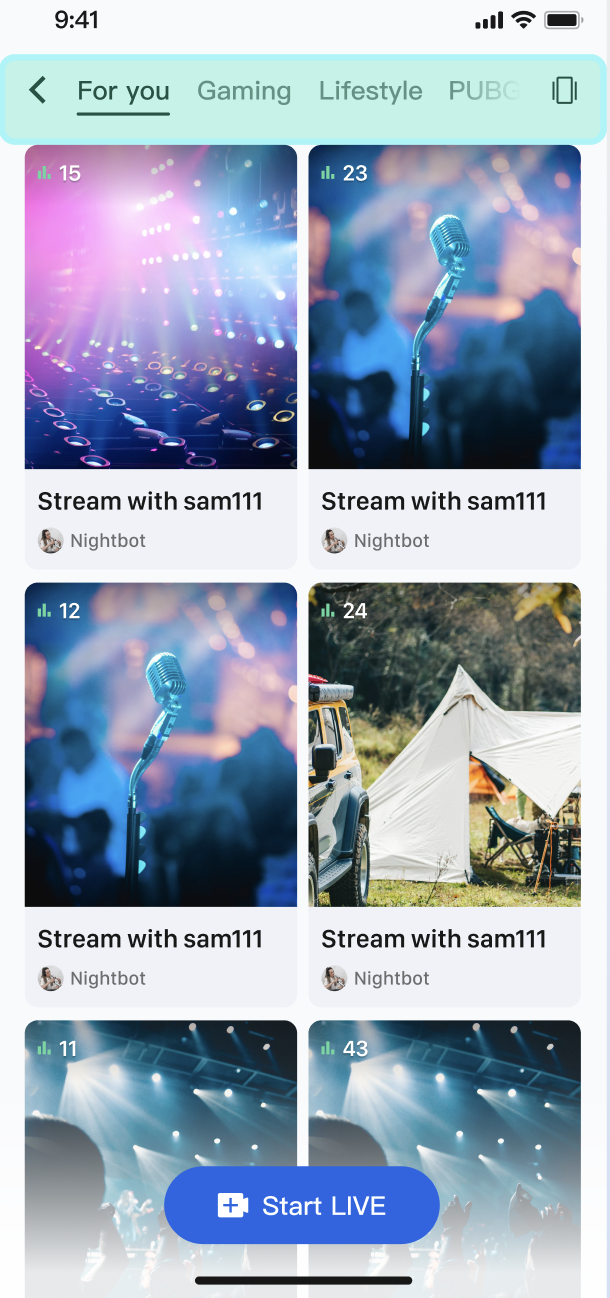

Scenario 1: Filter Live Stream List by Category

On the live stream plaza page, category tags such as "Popular", "Music", and "Games" are displayed at the top. When a user selects a category, the live stream list below dynamically updates to show only streams in that category, helping audiences quickly find relevant content.


Implementation

This feature relies on the categoryList property in the LiveInfo model. When the host assigns a category during stream setup, the returned LiveInfo from fetchLiveList will contain those category values. After retrieving the full live stream list, filter it client-side according to the selected category and refresh the UI.

Code Example

The example below adds data handling and filtering logic based on categoryList to the live stream list page UI.
import React, { useEffect, useState, useMemo } from 'react';
import {
  StyleSheet, Text, View, FlatList, TouchableOpacity,
  Dimensions, ImageBackground, ScrollView,
} from 'react-native';
import { useLiveListState } from 'react-native-tuikit-atomic-x/lib/module/atomic-x/state/LiveListState';

const defaultCover = 'https://liteav-test-1252463788.cos.ap-guangzhou.myqcloud.com/voice_room/voice_room_cover1.png';
const { width: SCREEN_WIDTH } = Dimensions.get('window');
const CARD_GAP = 12;
const CARD_PADDING = 16;
const CARD_WIDTH = (SCREEN_WIDTH - CARD_PADDING * 2 - CARD_GAP) / 2;
const CARD_HEIGHT = CARD_WIDTH * 1.3;

// Category List
const categories = [
  { id: 0, name: 'All' },
  { id: 1, name: 'Games' },
  { id: 2, name: 'Music' },
  { id: 3, name: 'Chat' },
  { id: 4, name: 'Sports' },
  { id: 5, name: 'Entertainment' },
];

// Category Name Mapping
const categoryMap = {
  1: 'Games',
  2: 'Music',
  3: 'Chat',
  4: 'Sports',
  5: 'Entertainment',
};

// Get Category Name
const getCategoryName = (categoryId) => {
  return categoryMap[categoryId] || 'Other';
};

// Live Stream Card Component
function LiveCard({ item, onPress }) {
  const firstCategory = item.categoryList?.[0];

  return (
    <TouchableOpacity style={styles.card} activeOpacity={0.75} onPress={onPress}>
      <ImageBackground
        source={{ uri: item.coverURL || defaultCover }}
        style={styles.cardBg}
        resizeMode="cover"
      >
        <View style={styles.viewerBadge}>
          <Text style={styles.viewerBadgeText}>{item.totalViewerCount || 0} viewers</Text>
        </View>
        <View style={styles.bottomInfo}>
          {firstCategory ? (
            <View style={styles.categoryBadge}>
              <Text style={styles.categoryBadgeText}>{getCategoryName(firstCategory)}</Text>
            </View>
          ) : null}
          <Text style={styles.liveName} numberOfLines={1}>{item.liveName}</Text>
          <Text style={styles.ownerName} numberOfLines={1}>{item.liveOwner?.userName}</Text>
        </View>
      </ImageBackground>
    </TouchableOpacity>
  );
}

export default function LiveListScreen({ navigation }) {
  // State management
  const { liveList, fetchLiveList, joinLive } = useLiveListState();

  // Currently selected category, 0 means all
  const [selectedCategory, setSelectedCategory] = useState(0);

  // Initialization
  useEffect(() => {
    fetchLiveList({ cursor: '', count: 20 });
  }, []);

  // Filter list by selected category
  const filteredList = useMemo(() => {
    const list = liveList || [];
    if (selectedCategory === 0) {
      return list;
    }
    return list.filter((live) => {
      const categoryList = live.categoryList || [];
      return categoryList.includes(selectedCategory);
    });
  }, [liveList, selectedCategory]);

  // Join Live Stream
  const handleJoinLive = (live) => {
    joinLive({
      liveID: live.liveID,
      onSuccess: () => {
        navigation.navigate('Audience', { liveID: live.liveID }); // Navigate to your target page
      },
      onError: (error) => {
        console.log('Failed to enter voice chat room', error);
      },
    });
  };

  return (
    <View style={styles.container}>
      {/* Category Tabs Bar */}
      <View style={styles.categoryTabsWrapper}>
        <ScrollView horizontal showsHorizontalScrollIndicator={false} contentContainerStyle={styles.categoryTabs}>
          {categories.map((cat) => (
            <TouchableOpacity
              key={cat.id}
              style={[styles.tab, selectedCategory === cat.id && styles.tabActive]}
              activeOpacity={0.7}
              onPress={() => setSelectedCategory(cat.id)}
            >
              <Text style={[styles.tabText, selectedCategory === cat.id && styles.tabTextActive]}>
                {cat.name}
              </Text>
            </TouchableOpacity>
          ))}
        </ScrollView>
      </View>

      {/* Live Stream List */}
      <FlatList
        data={filteredList}
        keyExtractor={(item) => item.liveID}
        numColumns={2}
        columnWrapperStyle={styles.row}
        contentContainerStyle={styles.listContent}
        renderItem={({ item }) => (
          <LiveCard item={item} onPress={() => handleJoinLive(item)} />
        )}
      />
    </View>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
    backgroundColor: '#fff',
  },
  categoryTabsWrapper: {
    backgroundColor: '#f9f9f9',
    borderBottomWidth: StyleSheet.hairlineWidth,
    borderBottomColor: '#e8e8e8',
  },
  categoryTabs: {
    flexDirection: 'row',
    paddingHorizontal: 16,
    paddingVertical: 10,
  },
  tab: {
    paddingHorizontal: 14,
    paddingVertical: 6,
    marginRight: 10,
    backgroundColor: '#fff',
    borderWidth: 1,
    borderColor: '#e0e0e0',
    borderRadius: 16,
  },
  tabActive: {
    backgroundColor: '#0468FC',
    borderColor: '#0468FC',
  },
  tabText: {
    fontSize: 13,
    color: '#666',
  },
  tabTextActive: {
    color: '#fff',
  },
  listContent: {
    paddingHorizontal: CARD_PADDING,
    paddingTop: 12,
  },
  row: {
    justifyContent: 'space-between',
    marginBottom: CARD_GAP,
  },
  card: {
    width: CARD_WIDTH,
    height: CARD_HEIGHT,
    borderRadius: 12,
    overflow: 'hidden',
  },
  cardBg: {
    flex: 1,
    justifyContent: 'space-between',
  },
  viewerBadge: {
    alignSelf: 'flex-start',
    backgroundColor: 'rgba(0, 0, 0, 0.45)',
    borderRadius: 10,
    paddingHorizontal: 8,
    paddingVertical: 3,
    margin: 8,
  },
  viewerBadgeText: {
    fontSize: 11,
    color: '#fff',
  },
  categoryBadge: {
    alignSelf: 'flex-start',
    backgroundColor: 'rgba(4, 104, 252, 0.9)',
    borderRadius: 3,
    paddingHorizontal: 6,
    paddingVertical: 2,
    marginBottom: 4,
  },
  categoryBadgeText: {
    fontSize: 10,
    color: '#fff',
    fontWeight: '600',
  },
  bottomInfo: {
    padding: 8,
    paddingTop: 20,
    backgroundColor: 'rgba(0, 0, 0, 0.35)',
  },
  liveName: {
    fontSize: 14,
    fontWeight: '600',
    color: '#fff',
  },
  ownerName: {
    fontSize: 12,
    color: 'rgba(255, 255, 255, 0.8)',
    marginTop: 2,
  },
});

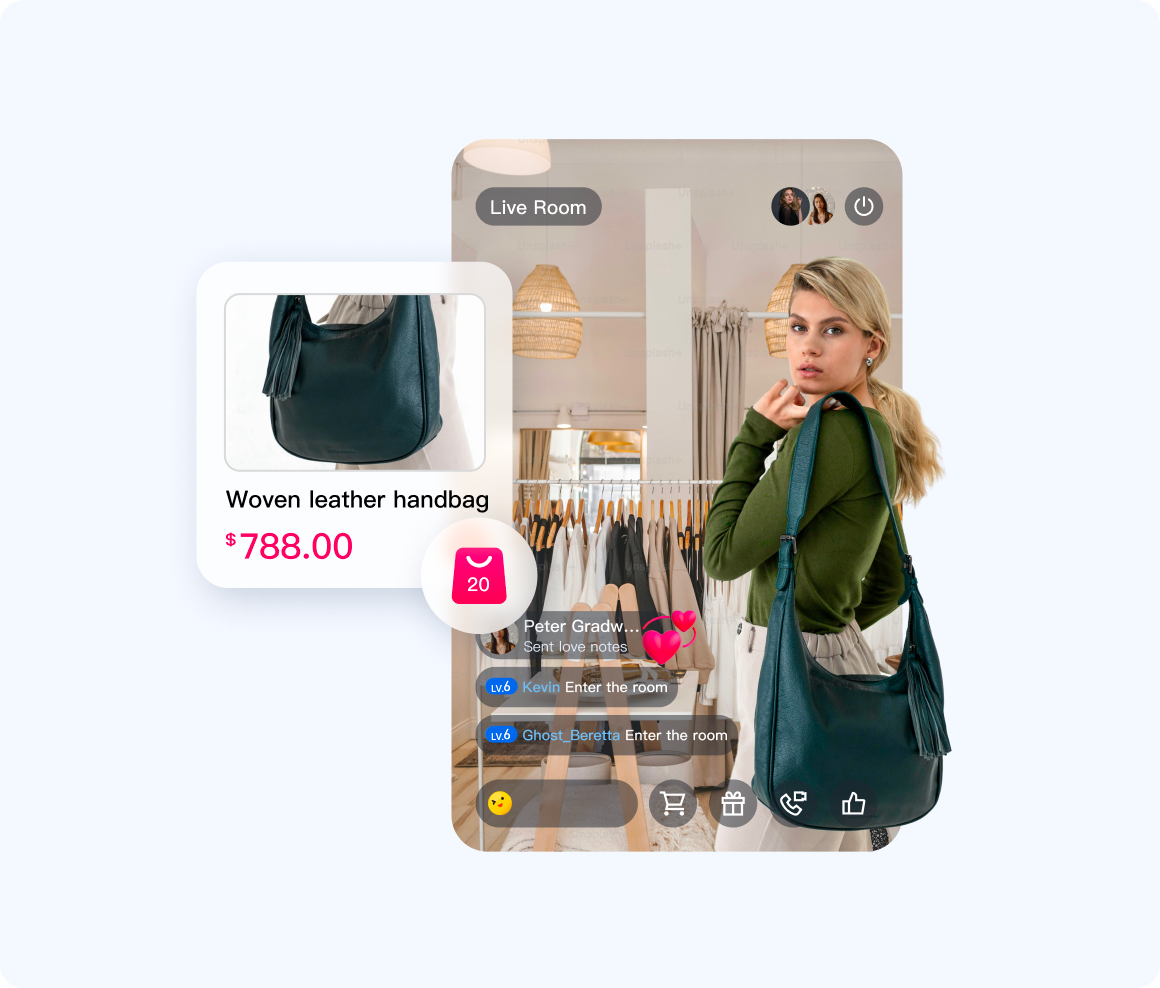

Scenario 2: Real-Time Product Cards for E-Commerce Live Streams

In e-commerce live streaming, the host introduces products to the audience. When a product is showcased, a product card appears below the live stream for all audience members, displaying the product image, name, and price in real time. When the host switches to another product, the product card updates instantly for everyone.


Implementation

On the host side, use the updateLiveMetaData interface to push structured product information (recommended in JSON format) under a custom key (such as "product_info"). AtomicXCore synchronizes this update in real time for all audience members. On the audience side, listen for changes in currentLive. When metaData for product_info changes, parse the JSON data and update the product card UI.

Code Example

import React, { useEffect, useState } from 'react';
import { useLiveListState } from 'react-native-tuikit-atomic-x/lib/module/atomic-x/state/LiveListState';

// Host Side Example Component
function AnchorProductPanel() {
  const { updateLiveMetaData } = useLiveListState();

  // Host: Push product info to all audience members
  const updateProduct = (product) => {
    updateLiveMetaData({
      metaData: {
        product_id: product.id,
        product_name: product.name,
        product_price: product.price,
        product_image_url: product.image_url,
      },
      onSuccess: () => {
        console.log(`Product ${product.name} info pushed successfully`);
      },
      onError: (error) => {
        console.log('Failed to push product info', error);
      },
    });
  };

  return null; // Replace with your host-side UI
}

// Audience Side Example Component
function AudienceProductCard() {
  const { currentLive } = useLiveListState();
  const [product, setProduct] = useState(null);

  // Audience: Listen for currentLive changes and parse product info
  useEffect(() => {
    if (!currentLive) return;
    const metaData = currentLive.metaData;
    if (metaData?.product_id) {
      const newProduct = {
        id: metaData.product_id,
        name: metaData.product_name,
        price: metaData.product_price,
        imageUrl: metaData.product.image_url,
      };
      setProduct(newProduct);
      // Render your product UI based on fields in newProduct
    }
  }, [currentLive]);

  return null; // Replace with your audience-side product card UI
}

API Documentation

For full details on all public interfaces, properties, and methods of LiveListState and related classes, refer to the official API documentation provided with the AtomicXCore framework. The relevant Store documented here is as follows:
State
Function Description
API Documentation
LiveListState
Manage the complete lifecycle of live stream rooms: create, join, leave, destroy rooms, query room lists, update live stream information (such as name, announcement), and listen for live stream status (e.g., kicked out, stream ended).

FAQs

What should I keep in mind when using updateLiveMetaData?

To maintain system stability and efficiency, metaData usage is governed by these rules:
Permissions: Only the host and administrators can call updateLiveMetaData. Regular audience members do not have access.
Quantity and Size Limits:
Each room can store up to 10 keys.
Each key must be no longer than 50 bytes. Each value must not exceed 2KB.
The total value size for all keys in a room must stay below 16KB.
Conflict Resolution: Updates to metaData use a "last write wins" strategy. If multiple administrators modify the same key in quick succession, only the latest update applies. To minimize conflicts, ensure your business logic restricts simultaneous edits to critical information.
WebRTC Trtc Logo
Copyright © 2013-2026 Tencent RTC. All Rights Reserved.
  1. Privacy Policy
  3. Legal
  5. Cookie Policy
  7. Tencent Cloud
