Following Ability

Introduction

In the Following Component, you can add 2D images, pag files, etc. to specific objects that appear on the screen. Currently, Tencent Effect supports face, gesture, body, and cat face tracking.

Basic Usage Method

1. Add Following Object

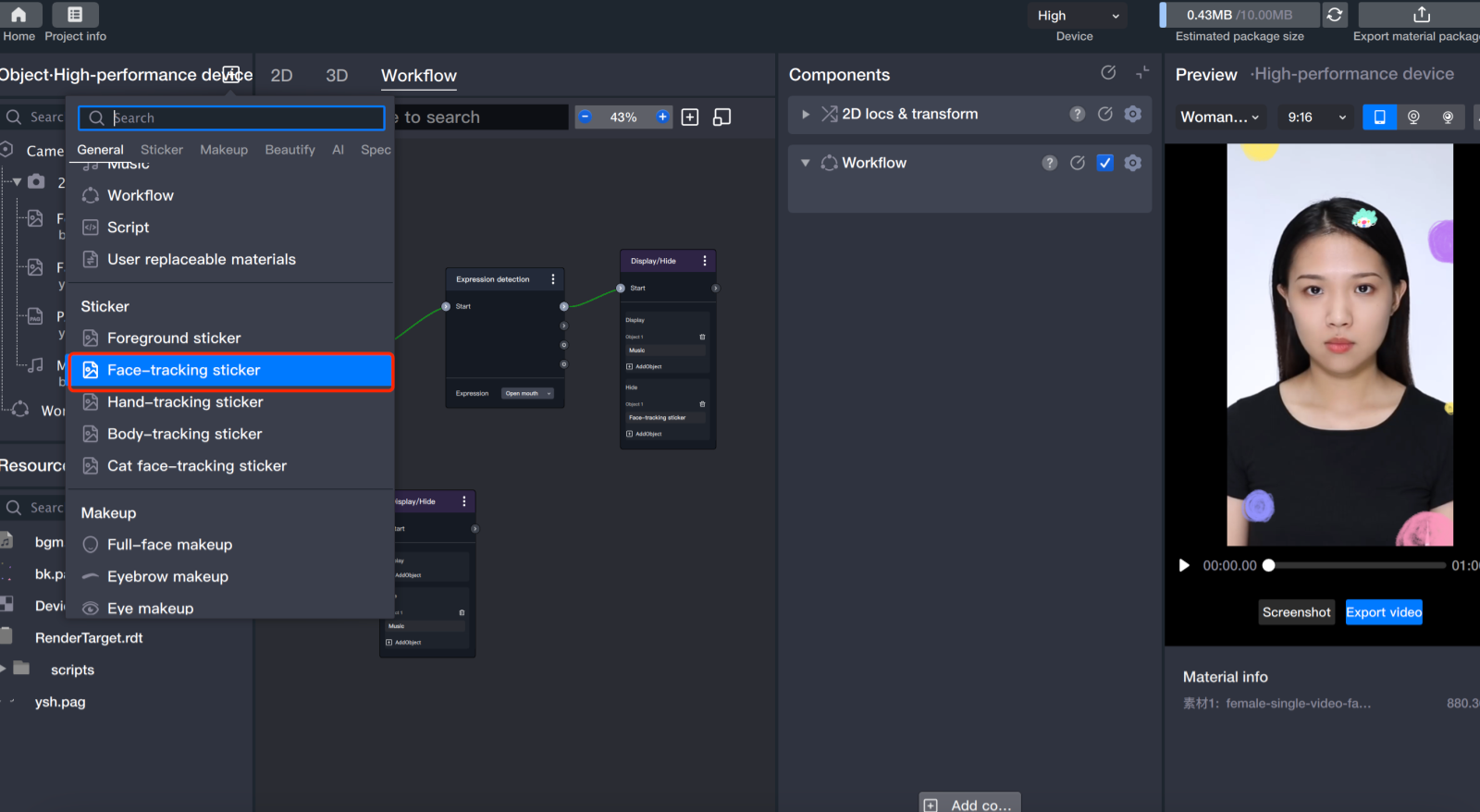

Add following object: Add following sticker in the object panel.

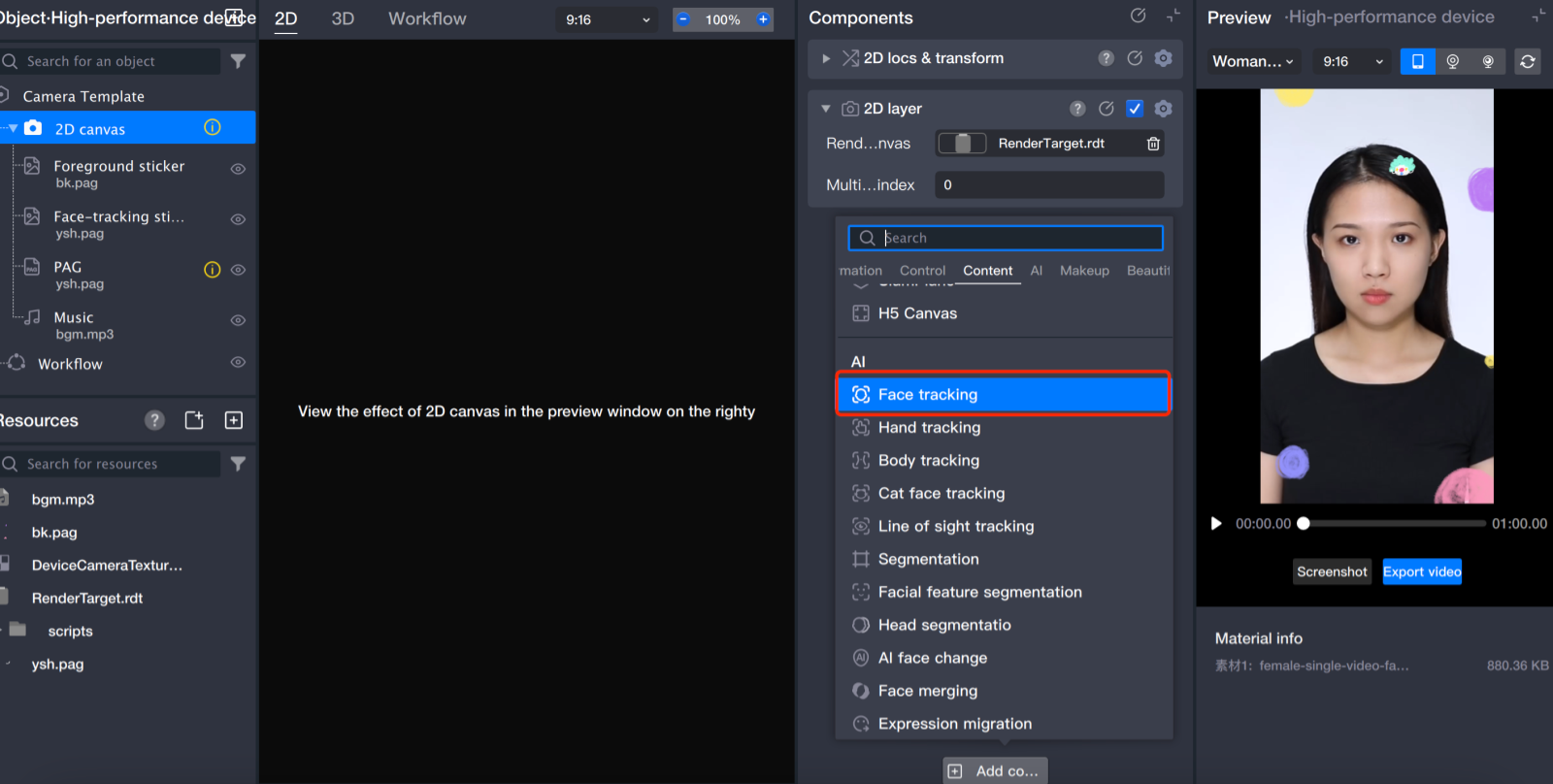

You can also directly add tracking components: Add tracking components in the component panel.

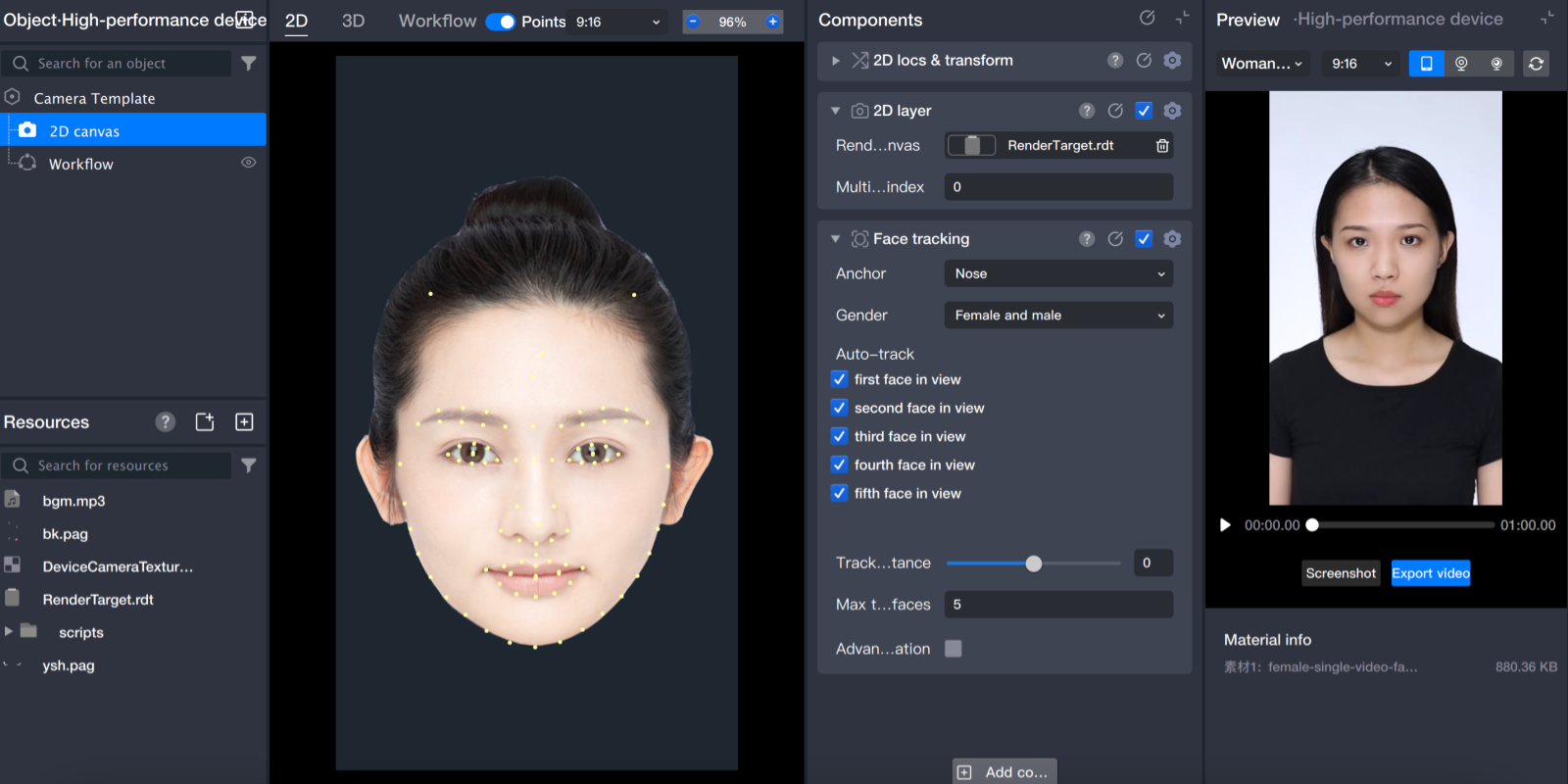

After adding any following component, the scene panel will provide a model point map accordingly.




2. Import sticker file

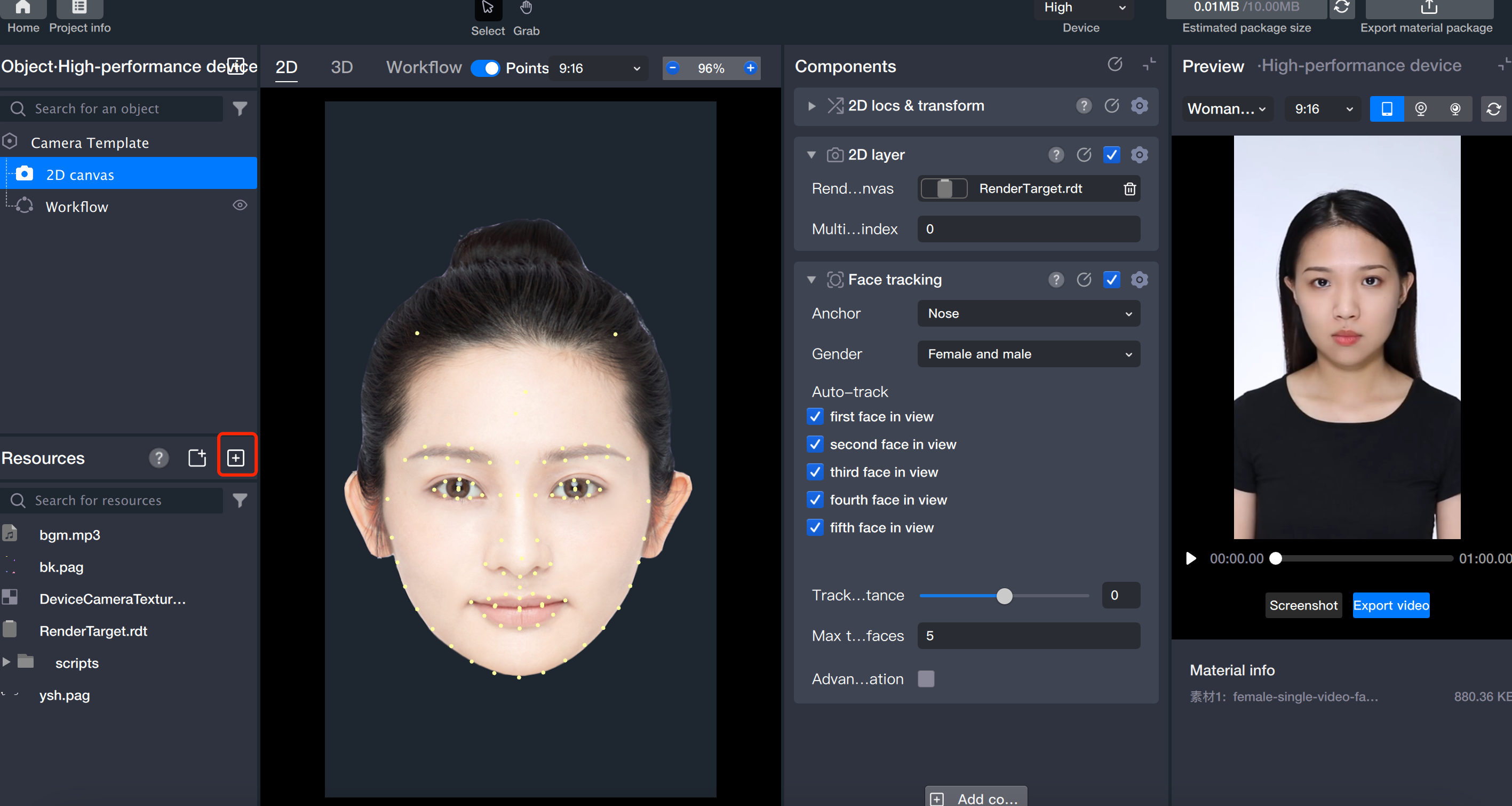

Local import: Access computer local materials.

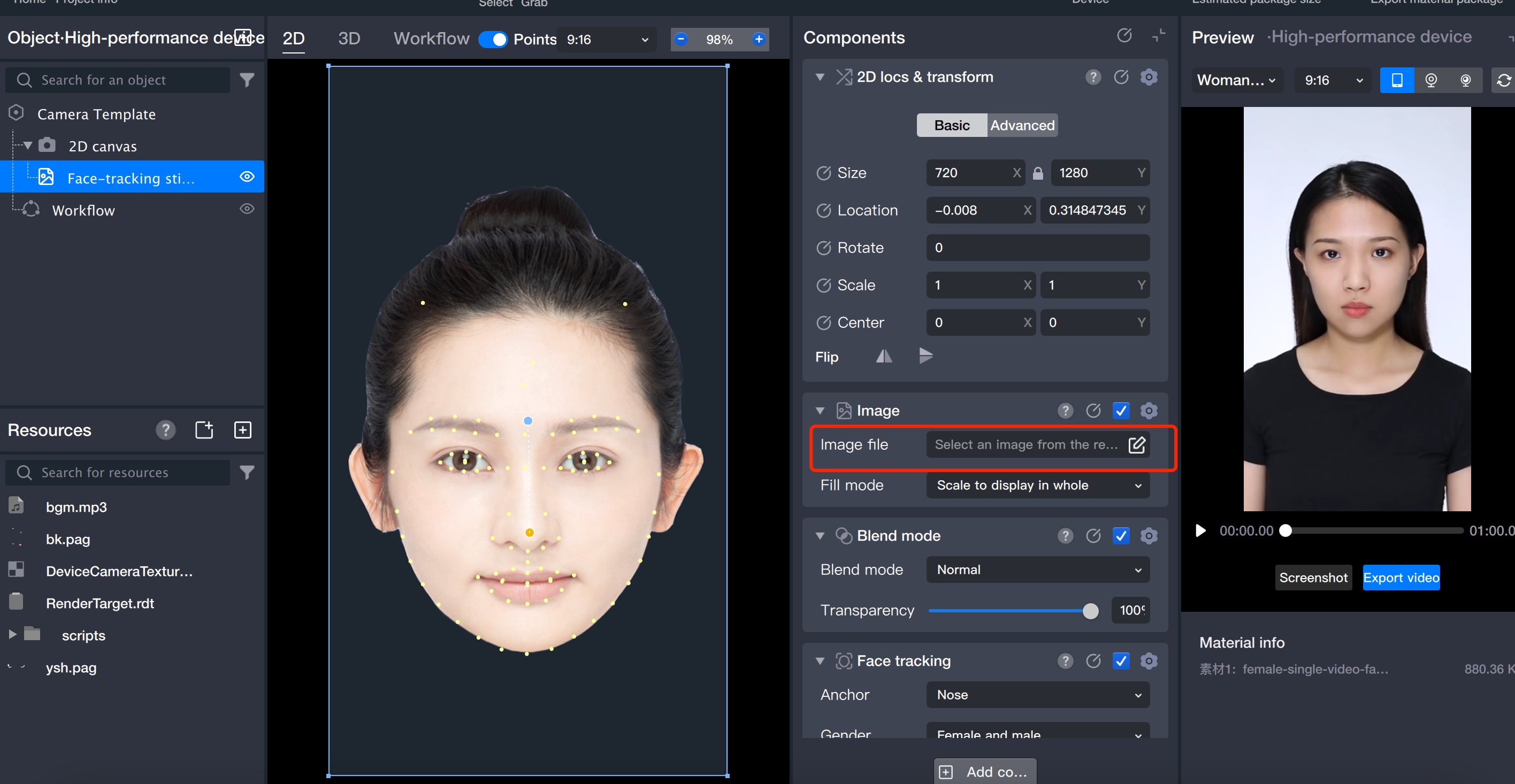

Select sticker file in the component panel.




3. Material parameter adjustment

3.1 Binding points.

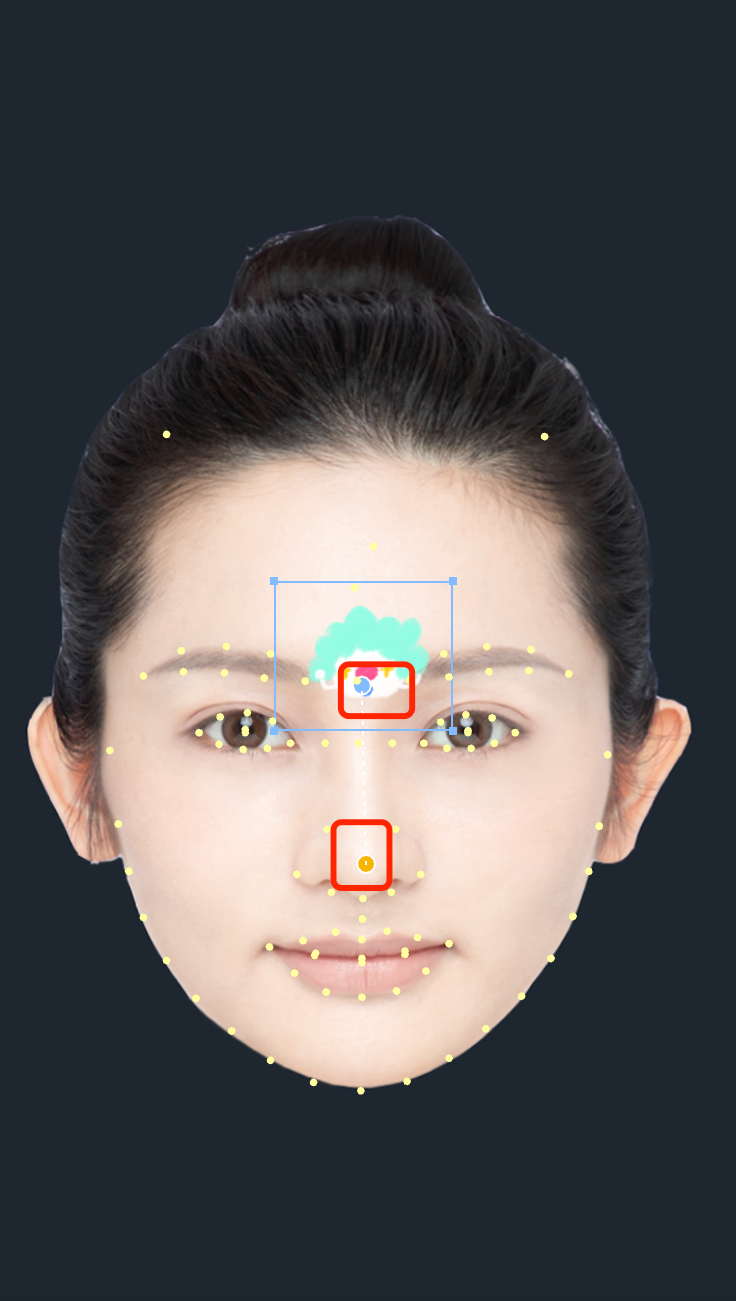

By dragging the binding points.

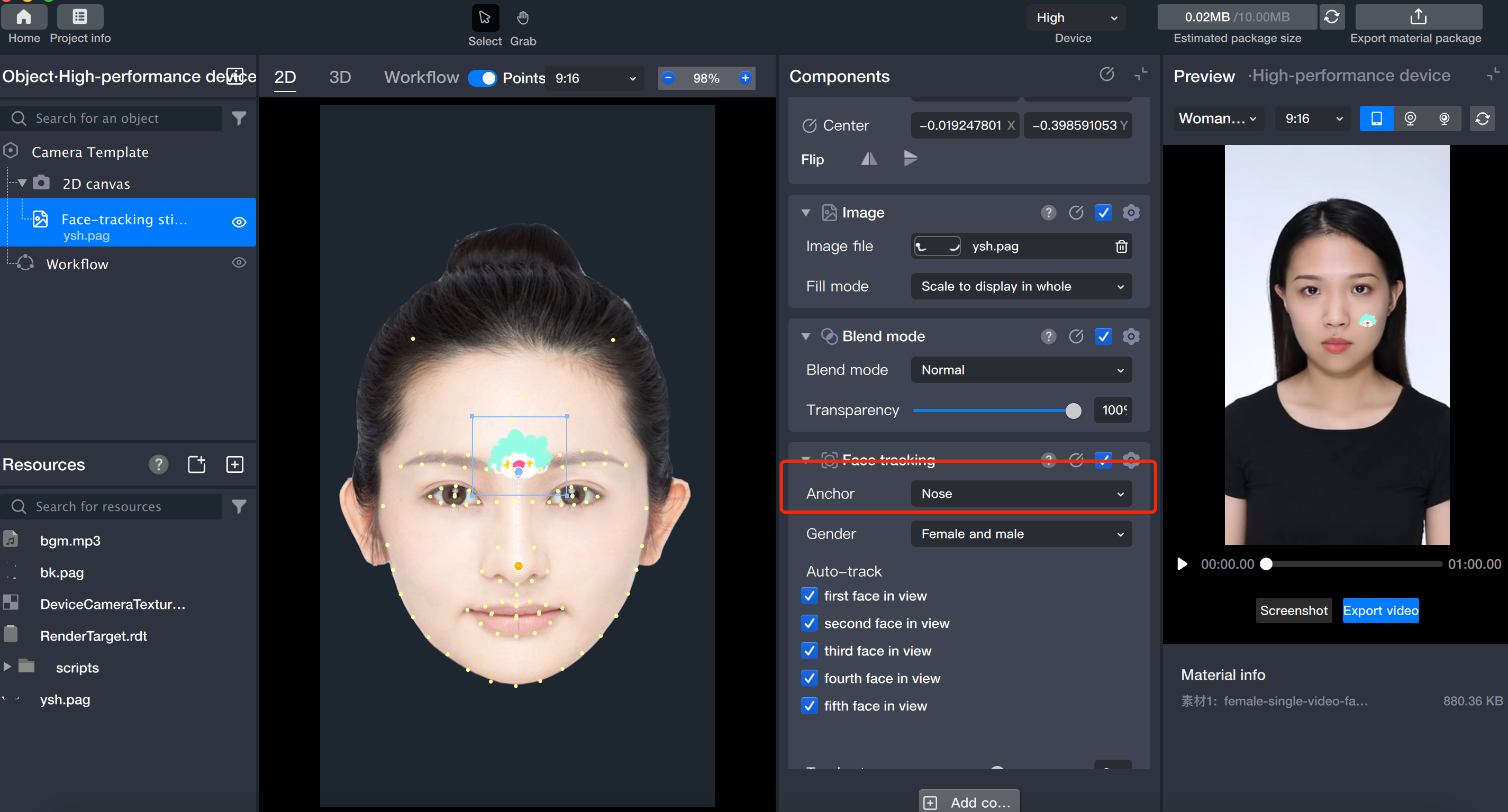

Adjust through the component panel.

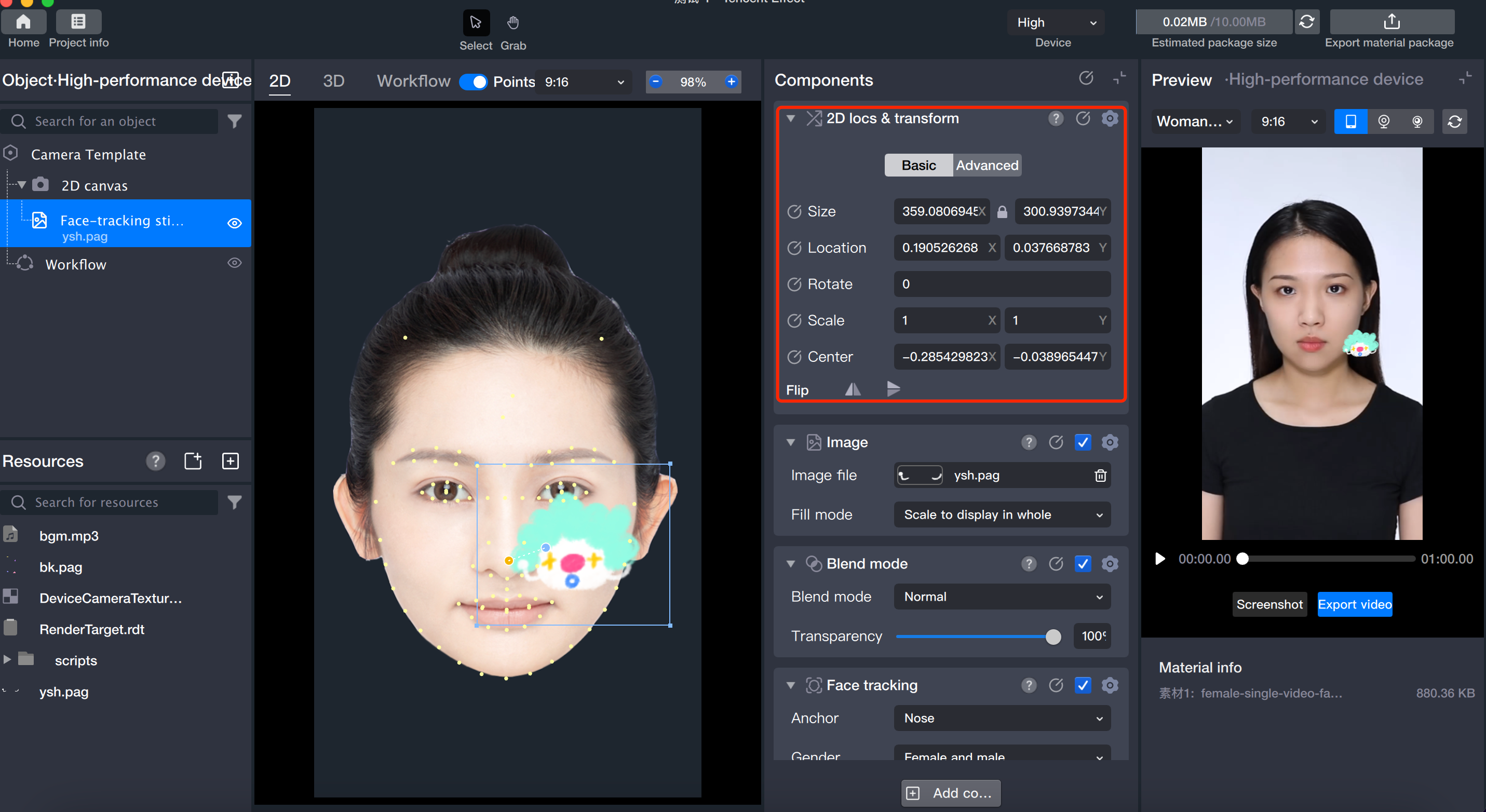

3.2 Change the sticker position, direction, and size.
Drag the sticker position in the scene panel.
Change the position and transformation in the component panel.
You need to select this object or its parent object in the object panel.

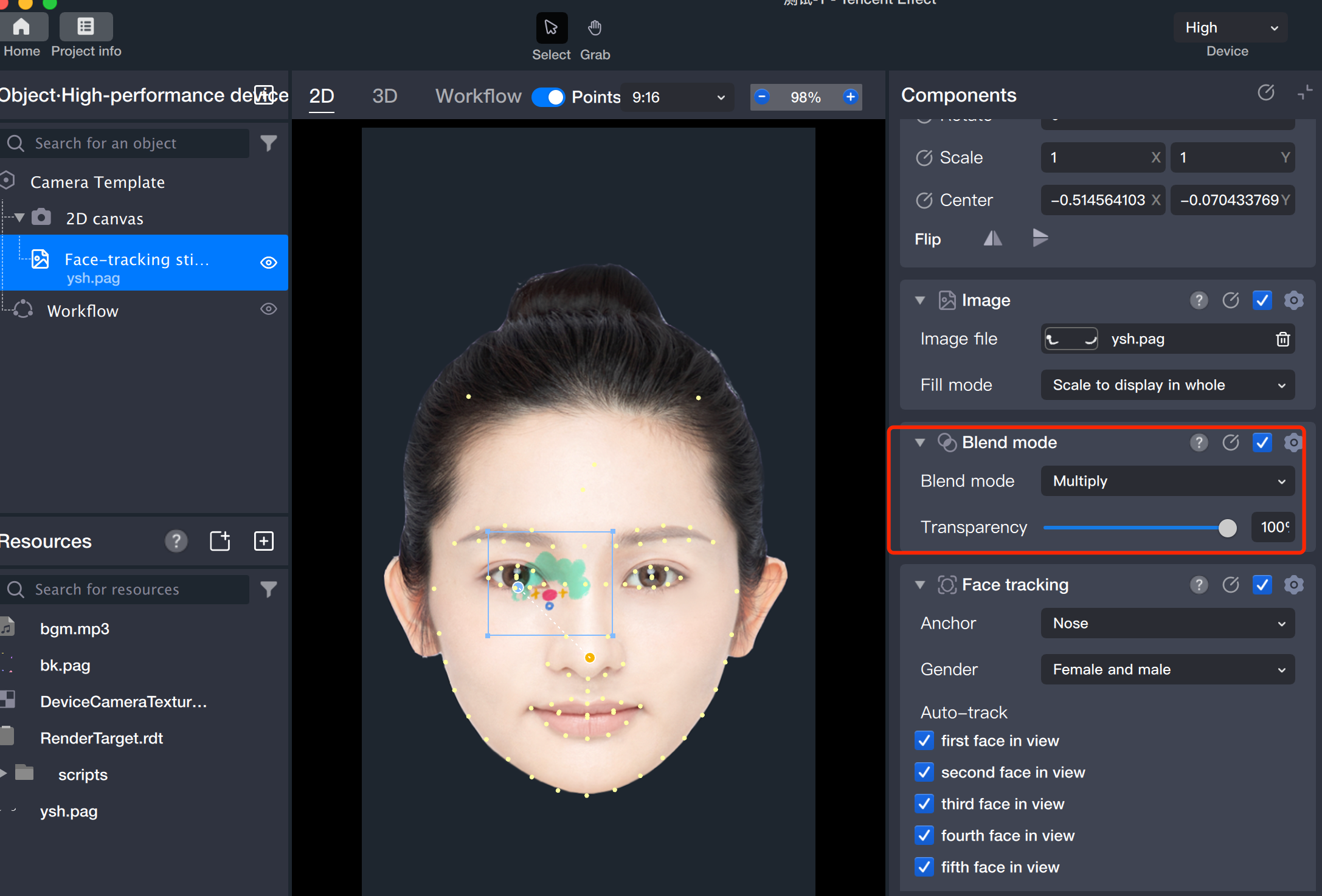

3.3 Mode modification.
To help designers understand the image effect, refer to the muptiply mode and normal mode in the designer's commonly used design software parameters according to the component sticker material parameters.



Here, only the face tracking gameplay is introduced, and other tracking gameplays are similar.
