Agora to Tencent RTC

Welcome to the Tencent RTC Engine SDK Migration Guide. This document is designed for developers to efficiently transition code implementations from Agora Video SDK to Tencent RTC Engine SDK. To ensure fast and seamless migration, we provide step-by-step Tencent RTC Engine application setup guides and fundamental RTC functionality/API code comparisons through code samples.
If you are planning to integrate Tencent RTC Engine SDK into a new project, we recommend to get started with our Sample Demo or Integration guides. To learn more Tencent RTC Engine capabilities, visit Product Introduction.

Create a Tencent RTC Engine Application

In order to access Tencent RTC Engine services, a Tencent RTC Engine application and its credentials are required. You can create a new Tencent RTC Engine application in the Tencent RTC console by following these steps:

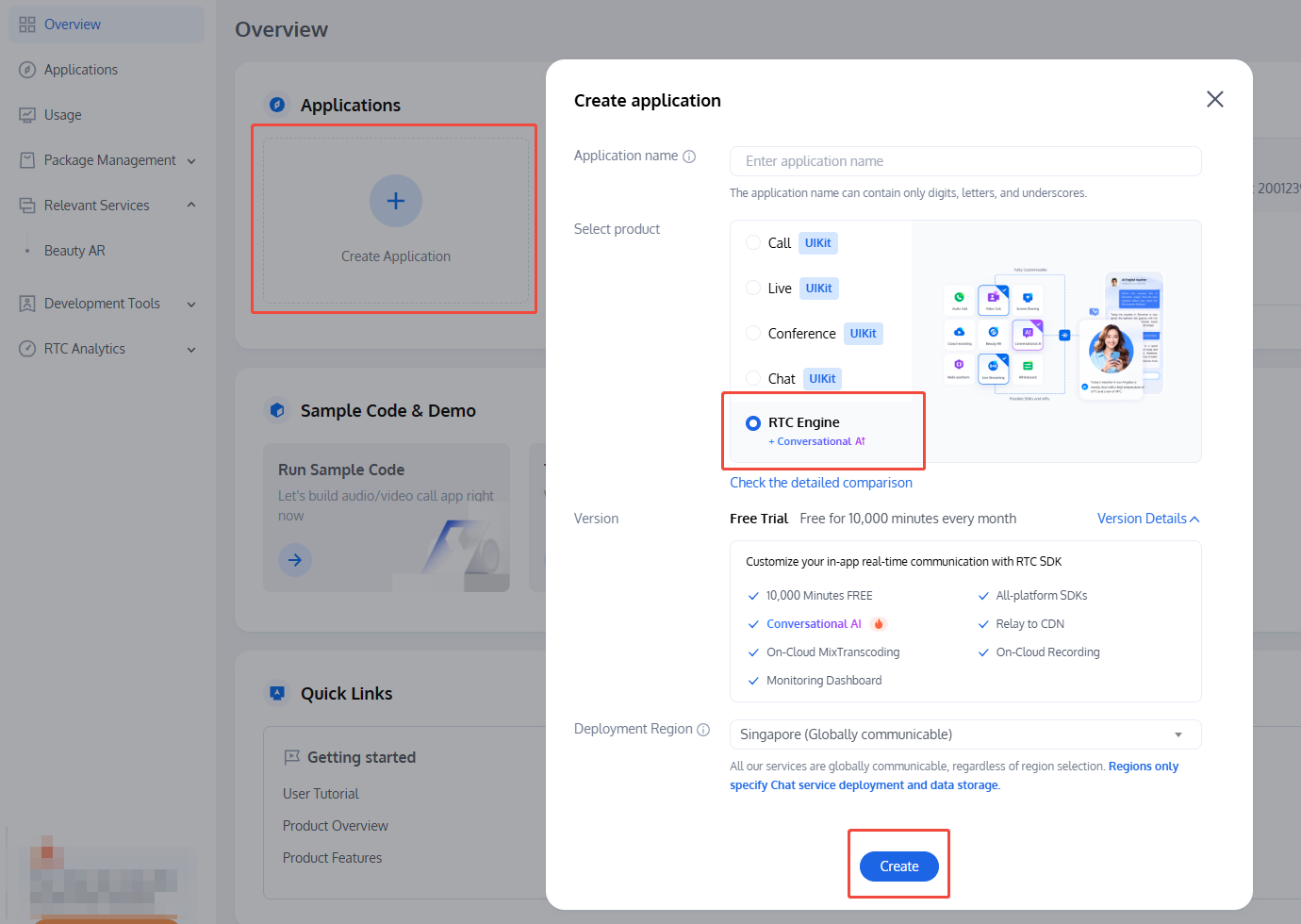

1. Sign up or sign in your Tencent RTC Account, and log in to your Tencent RTC Console.
2. Click Create Application in the Application section.
3. In the popup page, enter your application name, select RTC Engine, and then click Create.



Once you have a Tencent RTC Engine application, obtain the following credentials in Basic Information section:
SDKAppID: this is an auto-generated ID that uniquely identifies your Tencent RTC application.
SDKSecretKey: this is one of the key parameters used to generate the security signature UserSig, which ensures the secure access of Tencent RTC services. For more information about this credential and UserSig calculation, see UserSig.




Install Tencent RTC Engine SDK

Tencent RTC Engine SDK is available for various popular platforms, ensuring comprehensive cross-platform compatibility spanning web, desktops, and mobile platforms. You can install Tencent RTC Engine SDK that suits your current implemention in following ways:
Web
Flutter
React Native
Install using npm:
1. Install trtc-sdk-v5 in your Web project:
npm install trtc-sdk-v5 --save
2. Import module in your script:
import TRTC from 'trtc-sdk-v5'
Install using HTML <script>:
Download the SDK file trtc.js from Github, and include the following code in your webpage:
<script src="/your_path/trtc.js"></script>
Install tencent_rtc_sdk in your Flutter project:
flutter pub add tencent_rtc_sdk
1. Install trtc-react-native in your React Native project:
npm install trtc-react-native --save
# or
yarn add trtc-react-native
2. Import module in your script:
import TRTCCloud, { TRTCParams, TRTCCloudDef } from 'trtc-react-native'

Term Comparison

This section compares the terms used for key RTC concepts by Tencent RTC Engine and Agora. To learn more about Tencent RTC Engine glossary, visit Product Concepts.
Tencent RTC Engine Term
Agora Term
Explanation
Room
Channel
The group that connects the RTC participants together.
Anchor
Host
A room user type that has the streaming permission and is able to publish audio and video streams to the server.
The anchor/host is also able to subscribe and play back the audio and video streams of other anchors/hosts.
Audience
Audience
A room user type that can only subscribe to other anchors/hosts.

Functionality & API Comparison

This section lists some code samples that compares the implementations of common RTC functionalities in Agora Video SDK and Tencent RTC Engine SDK:

Initialize a Tencent RTC/Agora client instance

Web
Flutter
React Native
Agora
// Create an Agora Web client
const agoraWebClient = AgoraRTC.createClient({
mode: "rtc",
codec: "vp8"
});
Tencent RTC
// Create a TRTC Web client
const trtcWebClient = TRTC.create();
Agora
RtcEngine agoraFlutterEngine = createAgoraRtcEngine();

await agoraFlutterEngine.initialize(
const RtcEngineContext(appId: "<app id>")
);
Tencent RTC
// Create a TRTC instance
TRTCCloud trtcFlutterEngine = await TRTCCloud.sharedInstance();
Agora
const agoraRNEngine = createAgoraRtcEngine();

await agoraRNEngine.initialize({ appId: "<app id>" });
Tencent RTC
// Create a TRTC instance
const trtcRNEngine = TRTCCloud.sharedInstance();

Join an Tencent RTC room/Agora channel

Web
Flutter
React Native
Agora
await agoraWebClient.join(appId, channelName, token, userId);
Tencent RTC
try {
await trtcWebClient.enterRoom({
// Your application's SDKAppID
sdkAppId: 12345678,
userId: "<custom user id>",
// User signature, generated from your appliction's SDKSecretKey
userSig: "<user signature>",
roomId: 1234
});
console.log('Entered the room successfully');
} catch (error) {
console.error('Failed to enter the room ' + error);
}
Agora
await agoraFlutterEngine.joinChannel(
token: "<your token>",
channelId: "<channel id>",
// user id
uid: 0
options: const ChannelMediaOptions(
autoSubscribeVideo: true,
autoSubscribeAudio: true,
publishCameraTrack: true,
publishMicrophoneTrack: true
)
);
Tencent RTC
trtcFlutterEngine.enterRoom(
TRTCParams(
// Your application's SDKAppID
sdkAppId: 12345678,
userId: "<custom user id>",
// User signature, generated from your appliction's SDKSecretKey
userSig: "<user signature>",
roomId: 1234,
// Enter the room as Anchor
role: TRTCRoleType.anchor,
),
TRTCAppScene.live
);

print("Enter the room successfully");
Agora
const token = "<your token>";
const channelName = "<your channel id>";
const localUserId = 0;

agoraRNEngine.joinChannel(
token,
channelName,
localUserId,
{
autoSubscribeVideo: true,
autoSubscribeAudio: true,
publishCameraTrack: true,
publishMicrophoneTrack: true
}
);
Tencent RTC
trtcRNEngine.enterRoom(
new TRTCParams({
// Your application's SDKAppID
sdkAppId: 12345678,
userId: "<custom user id>",
// User signature, generated from your appliction's SDKSecretKey
userSig: "<user signature>",
roomId: 1234
}),
// Enter the room in audio and video call scenarios
TRTCCloudDef.TRTC_APP_SCENE_VIDEOCALL
);

Set up event listeners

Web
Flutter
React Native
Agora
agoraWebClient.on("user-joined", async (user, mediaType) => {
console.log("User joins the channel");
});
Tencent RTC
trtcWebClient.on(TRTC.EVENT.REMOTE_USER_ENTER, event => {
const userId = event.userId;
console.log(User ${userId} enters the room);
});
Agora
agoraFlutterEngine.registerEventHandler(
RTCEngineEventHandler(
onUserJoined: (RtcConnection connection, int remoteUid, int elapsed) {
print("Remote user $remoteUid joined");
},
)
);
Tencent RTC
// Define a TRTCCloudListener with relative events
TRTCCloudListener listener = TRTCCloudListener(
onEnterRoom: (result) {
if(result > 0) {
print("Enter room success.");
}
},
onRemoteUserEnterRoom: (userId) {
print("Remote user $userId enters the room.")
},
onError: (errCode, errMsg) {
print("Error $errCode: $errMsg");
}
);

// Register the event listener with TRTC engine
trtcFlutterEngine.registerListener(listener);
Agora
agoraRNEngine.registerEventHandler({
onUserJoined: (connection, uid) {
console.log(`Remote user ${uid} joins the room`);
}
});
Tencent RTC
const onRtcListener = useCallback((type:TRTCCloudListener, params:any) => {
if (type === TRTCCloudListener.onEnterRoom) {
if (params.result > 0) {
console.log("Enter room success.");
}
} else if (type === TRTCCloudListener.onRemoteUserEnterRoom) {
console.log(`Remote user ${params.userId} enters the room.`);
} else if (type === TRTCCloudListener.onError) {
console.error(`Error ${params.errCode}: ${params.errMsg}.`);
}
});

trtcRNEngine.registerListener(onRtcListener);

Collect, publish, and unpublish local Tencent RTC streams/Agora tracks

Web
Flutter
React Native
Assume the container HTML element for local audio and video is:
<div class="local-video-container" width="1920" height="1080"></div>
Agora
// Capture both microphone and camera tracks
const [microphoneTrack, cameraTrack] = await agoraWebClient.createMicrophoneAndCameraTracks();

// Render
const localMediaContainer = document.getElementById('local-video-container');
cameraTrack.play(localMediaContainer);

// Publish microphone and camera tracks
await agoraWebClient.publish([microphoneTrack, cameraTrack]);

// Unpublish tracks
await agoraWebClient.unpublish();
Tencent RTC
const view = document.getElementById('local-video-container');

// Local video stream
// Get the list of available cameras
const cameraList = await TRTC.getCameraList();

if(cameraList[0]) {
// Start collecting video
// Publish the first (available) camera's video stream to the current room
await trtcWebClient.startLocalVideo({
view,
options: { cameraId: cameraList[0].deviceId }
});
}

// Unpublish and stop collecting video
await trtcWebClient.stopLocalVideo();

// Local audio stream
// Get the list of available microphones.
const microphoneList = await TRTC.getMicrophoneList();

if(microphoneList[0]) {
// Start collecting audio
// Publish the first (available) microphone's audio stream to the current room
await trtcWebClient.startLocalAudio({
options: { microphoneId: microphoneList[0].deviceId }
});
}

// Unpublish and stop collecting audio
await trtc.stopLocalAudio();
Agora
// Local video track
// Display the local video by enabling the video module and starting local video preview
await agoraFlutterEngine.enableVideo();
await agoraFlutterEngine.startPreview();

// Render the local video via AgoraVideoView widget
Widget _localVideo() {
return AgoraVideoView(
controller: VideoViewController(
rtcEngine: agoraFlutterEngine,
canvas: const VideoCanvas(
// Specify the local user id
uid: 0,
// Set the video rendering mode
renderMode: RenderModeType.renderModeHidden
)
)
);
}

// Disable the video module and stop local video preview
agoraFlutterEngine.disableVideo();
agoraFlutterEngine.stopPreview();

// Local audio track is enabled by default in Agora
Tencent RTC
// Local video stream
import 'package:tencent_rtc_sdk/trtc_cloud_video_view.dart';

// Before enabling the camera preview, you can set the local video rendering parameters
trtcFlutterEngine.setLocalRenderParams(
TRTCRenderParams(
fillMode: TRTCVideoFillMode.fill,
mirrorType: TRTCVideoMirrorType.auto,
rotation: TRTCVideoRotation.rotation0
)
);

// Render the local video via TRTCCloudVideoView widget
Widget _localVideo() {
return TRTCCloudVideoView(
key: ValueKey(0),
onViewCreated: (viewId) {
// Set to 'false' if using rear camera
bool useFrontCamera = true;
// Start local video preview using front camera
trtcFlutterEngine.startLocalPreview(useFrontCamera, viewId);
// Stop local video preview
trtcFlutterEngine.stopLocalPreview();
}
)
}

// Local audio stream
// Enable the audio module and start publishing local audio
trtcFlutterEngine.startLocalAudio(TRTCAudioQuality.speech);
// Disable the audio module and stop publishing local audio
trtcFlutterEngine.stopLocalAudio();
Agora
<RtcSurfaceView
canvas={{ uid: 0 }}
style={ width: '90%', height: 200 }
/>

<!-- Local audio track is enabled by default in Agora -->
Tencent RTC
import { TXVideoView } from 'trtc-react-native';
<TXVideoView.LocalView
style={{ width: 1080, height: 1080 }}
/>
// Enable the audio module and start publishing local audio
trtcRNEngine.startLocalAudio();
// Disable the audio module and stop publishing local audio
trtcRNEngine.stopLocalAudio();

Subscribe and play remote Tencent RTC streams/Agora tracks

Web
Flutter
React Native
Assume the container HTML element for remote audio and video is:
<div class="remote-video-container" width="1920" height="1080"></div>
Agora
agoraWebClient.on("user-published", async (user, mediaType) => {
// Initiate a subscription
await client.subscribe(user, mediaType);

// Subscribe to an audio track
if (mediaType === "audio") {
const audioTrack = user.audioTrack;
// Automatically play audio
audioTrack.play();
} else {
const videoTrack = user.videoTrack;
// Automatic video playback
videoTrack.play('remote-video-container');
}
});
Tencent RTC
// Video (listen for TRTC.EVENT.REMOTE_VIDEO_AVAILABLE)
trtcWebClient.on(TRTC.EVENT.REMOTE_VIDEO_AVAILABLE, ({ userId, streamType }) => {
// To play the video image, you need to place an HTMLElement in the DOM
// Assume this is a <div> element and has the id of `${userId}_${streamType}`
const view = `${userId}_${streamType}`;

// Start rendering remote video
trtcWebClient.startRemoteVideo({ userId, streamType, view });
});

// Audio (listen for TRTC.EVENT.REMOTE_AUDIO_AVAILABLE)
trtcWebClient.on(TRTC.EVENT.REMOTE_AUDIO_AVAILABLE, event => {
// Start playing remote audio
trtcWebClient.muteRemoteAudio(event.userId, false);
});
Agora
// Remote video track
// Render the remote video of a joined user, also via AgoraVideoView widget
Widget _remoteVideo(remoteuid, channelid) {
return AgoraVideoView(
controller: VideoViewController.remote(
rtcEngine: agoraFlutterEngine,
canvas: const VideoCanvas(uid: remoteuid),
connection: const RtcConnection(channelId: channelid)
)
);
}

// Local audio track is enabled by default in Agora
Tencent RTC
// Remote video stream
import 'package:tencent_rtc_sdk/trtc_cloud_video_view.dart';

// You can also set the remote video rendering parameters before rendering
trtcFlutterEngine.setRemoteRenderParams(
TRTCRenderParams(
fillMode: TRTCVideoFillMode.fill,
mirrorType: TRTCVideoMirrorType.auto,
rotation: TRTCVideoRotation.rotation0
)
);

// Render the remote video, also via TRTCCloudVideoView widget
Widget _remoteVideo(remoteuid) {
return TRTCCloudVideoView(
key: ValueKey(0),
onViewCreated: (viewId) {
// Start remote video view
trtcFlutterEngine.startRemoteView(
remoteuid,
TRTCVideoStreamType.big,
viewId
);
// Stop remote video view
trtcFlutterEngine.stopLocalPreview(
remoteuid,
TRTCVideoStreamType.big,
);
}
)
}

// Remote audio stream
// Mute/unmute a remote user's audio stream
bool isMuted = true;
trtcFlutterEngine.muteRemoteAudio(remoteuid, isMuted);
Agora
<React.Fragment key={remoteUid}>
<RtcSurfaceView
canvas={{ uid: remoteUid }}
style={ width: '90%', height: 200 }
/>
</React.Fragment>
// Mute/unmute a remote user's audio stream
let isMuted = true;
trtcRNEngine.muteRemoteAudioStream(remoteuid, isMuted);
Tencent RTC
import { TXVideoView } from 'trtc-react-native';

// Stop remote video playback
trtcRNEngine.stopRemoteView(remoteuid, TRTCCloudDef.TRTC_VIDEO_STREAM_TYPE_BIG);

// Mute/unmute remote audio playback
let isMuted = true;
trtcRNEngine.muteRemoteAudio(remoteuid, isMuted);
<TXVideoView.RemoteView
userId={remoteUserId}
streamType={TRTCCloudDef.TRTC_VIDEO_STREAM_TYPE_BIG}
style={{ width: 1080, height: 1080 }}
/>

Leave the Tencent RTC room/Agora channel

Web
Flutter
React Native
Agora
await agoraWebClient.leave();
Tencent RTC
await trtcWebClient.exitRoom();

// Destroy the client instance and release releated resource if needed
trtcWebClient.destroy();
Agora
await agoraFlutterEngine.leaveChannel();
Tencent RTC
await trtcFlutterEngine.exitRoom();

// Destroy the client instance and release releated resource if needed
trtcFlutterEngine.destroySharedInstance();
Agora
agoraRNEngine.leaveChannel();
Tencent RTC
trtcRNEngine.exitRoom();

// Destroy the client instance and release releated resource if needed
trtcRNEngine.destroySharedInstance();

Conclusion

The preceding sections provide a subset of functional-equivalent implementations between Agora Video SDK and Tencent RTC Engine SDK. For more comprehensive details on Tencent RTC Engine features and documentations, visit Feature overview for more information.
Tencent RTC is committed to offering cost-effective, low-latency, and high-quality interactive audio/video services. If you need developer support or any further assistance regarding Tencent RTC Engine SDK integration, please feel free to Contact Us, or reach us through Discord and Telegram. We will ensure a smooth integration and address any queries you may have.
