iOS
Features

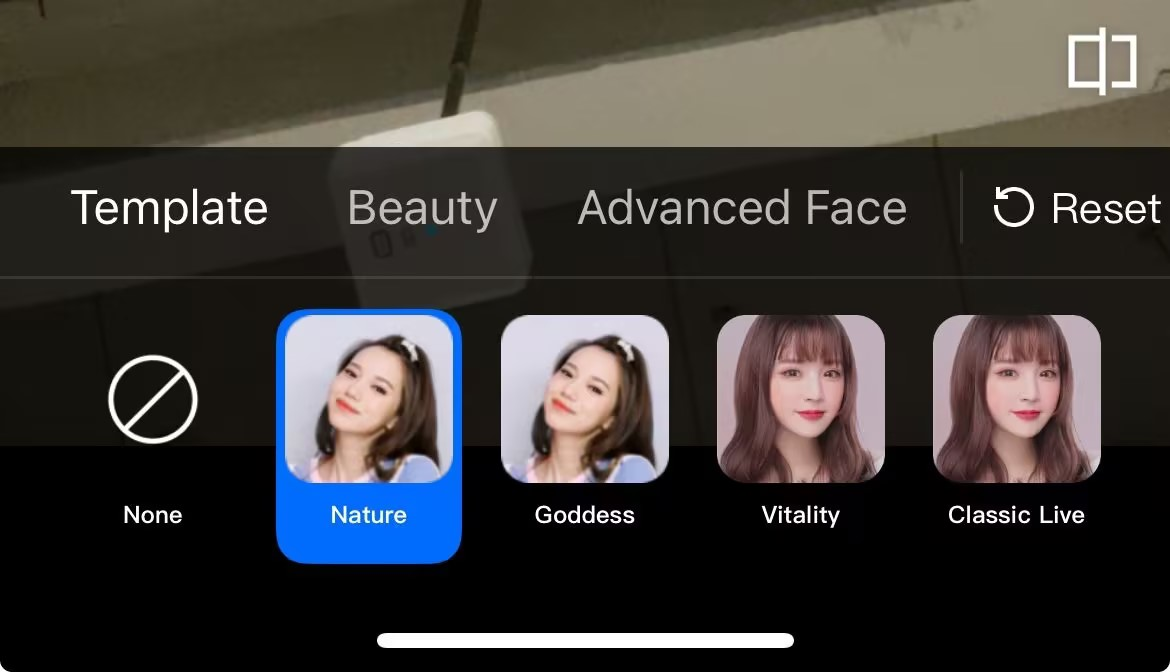

TEBeautyKit is the UI panel library for the Tencent Effect module, used for quick and convenient usage and management of the effect features. The effect is as shown in the figure below:

Integration Steps
1. Edit the Podfile and append the following code snippet:
# Replace S1-07 with the package you purchasedpod 'TEBeautyKit/S1-07', :podspec => 'https://mediacloud-76607.gzc.vod.tencent-cloud.com/TencentEffect/iOS/TEBeautyKit/latest/TEBeautyKit.podspec'
2. Execution
pod install3. To integrate the panel resources, download the resource package (beauty_panel.zip) and incorporate it into your main project. The contents are as follows:
Documentation | Explanation |
beauty.json | Beauty Configuration File |
beauty_body.json | Beauty Profile Configuration |
beauty_image.json | Image Quality Adjustment Configuration File |
beauty_makeup.json | Single-point Makeup Configuration File |
beauty_shape.json | Premium Styling Configuration File |
beauty_template_ios.json | Beauty Filter Template Configuration File |
light_makeup.json | Light Makeup Configuration File |
lut.json | Filter configuration file. Note: Since different clients utilize distinct filter assets, customers may customize the configuration according to the JSON structure after downloading (refer to the JSON File Structure Documentation for details). |
makeup.json | Style Makeup Configuration File. Note: Since different clients utilize distinct style makeup materials, customers may customize the configuration according to the JSON structure after downloading (refer to the JSON File Structure Documentation for details). |
motion_2d.json | 2D Animation Sticker Configuration File. Note: Since different clients may utilize varying animation sticker materials, after downloading, clients can customize the configuration according to the JSON structure (refer to the JSON File Structure Documentation for details). |
motion_3d.json | 3D animated sticker configuration file. Note: Since different clients may utilize varying animated sticker materials, customers can customize the configuration according to the JSON structure after downloading (refer to the JSON File Structure Documentation for details). |
motion_gesture.json | Gesture animation sticker configuration file. Note: Since different clients may use varying animation sticker materials, customers can customize the configuration according to the JSON structure after downloading (refer to the JSON File Structure Documentation for details). |
segmentation.json | Background Segmentation (Virtual Background) Configuration File. Note: As different clients utilize distinct segmentation materials, customers may customize the configuration according to the JSON structure after downloading (refer to the JSON File Structure Documentation). |
panel_icon | This directory is designated for storing images configured in JSON files, which must be added. |
Usage Guide
1. Beauty Authentication
After the application is launched, a beauty filter authentication must be performed to enable the normal use of beauty features.
Interface:
#import "TEBeautyKit.h"+ (void)setTELicense:(NSString *)url key:(NSString *)key completion:(callback _Nullable )completion;
Example:
[TEBeautyKit setTELicense:@"your license" key:@"your key" completion:^(NSInteger authresult, NSString * _Nullable errorMsg) {NSLog(@"----------result: %zd %@",authresult,errorMsg);}];
2. Configuration Panel Resource Path
The beauty data and icon assets on the beauty panel are available in beauty_panel.zip. As per the API documentation, you may pass the corresponding JSON file path and customize the settings according to your specific requirements.
Interface:
/// Set the panel resource path/// - Parameter resources: Resource path list/// e.g. @[@{TEUI_BEAUTY : @"json file path"}]- (void)setTEPanelViewResources:(NSArray<NSDictionary *> *)resources;
Example:
- (void)configPanel {NSBundle *bundle = [NSBundle mainBundle];NSString *beautyJsonPath = [bundle pathForResource:@"beauty" ofType:@"json"]; //BeautyNSString *lutJsonPath = [bundle pathForResource:@"lut" ofType:@"json"]; //filterNSString *motion2dJsonPath = [bundle pathForResource:@"motion_2d" ofType:@"json"]; //2D stickersNSMutableArray *resArray = [[NSMutableArray alloc] init];[resArray addObject:@{TEUI_BEAUTY : beautyJsonPath}];[resArray addObject:@{TEUI_LUT : lutJsonPath}];[resArray addObject:@{TEUI_MOTION_2D : motion2dJsonPath}];/// Set up resources[[TEUIConfig shareInstance] setTEPanelViewResources:resArray];}
3. Initialize and incorporate TEPanelView
- (void)addPanelView {TEPanelView *tePanelView = [[TEPanelView alloc] init];tePanelView.delegate = self;[self.view addSubview:tePanelView];[tePanelView mas_makeConstraints:^(MASConstraintMaker *make) {make.width.bottom.mas_equalTo(self.view);make.left.right.mas_equalTo(self.view);make.height.mas_equalTo(230 + self.view.safeAreaInsets.bottom);}];}
4. Initialize the beauty filter object
Interface:
/// Create TEBeautyKit object/// - Parameters:/// - effectMode: EFFECT_MODE_NORMAL(High performance mode) EFFECT_MODE_PRO(Default mode)/// - onInitListener: Callback+ (void)createXMagic:(EffectMode)effectMode onInitListener:(OnInitListener _Nullable)onInitListener;
Example:
- (void)initXMagic {__weak __typeof(self)weakSelf = self;[TEBeautyKit createXMagic:EFFECT_MODE_PRO onInitListener:^(TEBeautyKit * _Nullable beautyKit) {__strong typeof(self)strongSelf = weakSelf;strongSelf.teBeautyKit = beautyKit;strongSelf.tePanelView.teBeautyKit = strongSelf.teBeautyKit;[strongSelf.tePanelView setDefaultBeauty];[strongSelf.teBeautyKit setLogLevel:YT_SDK_ERROR_LEVEL];[strongSelf.teBeautyKit registerSDKEventListener:strongSelf];}];}
5. Processing video data
Interface:
/// Handle texture/// - Parameters:/// - textureId: Texture ID/// - textureWidth: Texture width/// - textureHeight: Texture height/// - origin: Enum value, when set to YtLightImageOriginBottomLeft, the image is flipped vertically/// - orientation: Enum value: image rotation angle- (YTProcessOutput *)processTexture:(int)textureIdtextureWidth:(int)textureWidthtextureHeight:(int)textureHeightwithOrigin:(YtLightImageOrigin)originwithOrientation:(YtLightDeviceCameraOrientation)orientation;
Example:
#pragma mark AVCaptureVideoDataOutputSampleBufferDelegate- (void)captureOutput:(AVCaptureOutput *)captureOutput didOutputSampleBuffer:(CMSampleBufferRef)sampleBuffer fromConnection:(AVCaptureConnection *)connection {if (captureOutput == self.videoDataOutput) {[self mycaptureOutput:captureOutput didOutputSampleBuffer:sampleBuffer fromConnection:connection originImageProcess:YES];}}- (void)mycaptureOutput:(AVCaptureOutput *)captureOutput didOutputSampleBuffer:(CMSampleBufferRef)inputSampleBuffer fromConnection:(AVCaptureConnection *)connection originImageProcess:(BOOL)originImageProcess {CVPixelBufferRef pixelBuffer = CMSampleBufferGetImageBuffer(inputSampleBuffer);YTProcessOutput *output = [self.teBeautyKit processPixelData:pixelBufferpixelDataWidth:(int)CVPixelBufferGetWidth(pixelBuffer)pixelDataHeight:(int)CVPixelBufferGetHeight(pixelBuffer)withOrigin:YtLightImageOriginTopLeftwithOrientation:YtLightCameraRotation0];if (output.pixelData.data != nil) {/// Output video data, render or other processing}if (output != nil) {output.pixelData = nil;output = nil;}}
6. Destroy Beauty Filter
- (void)destroyXMagic {[self.teBeautyKit onDestroy];self.teBeautyKit = nil;}
Appendix
Panel JSON File Description
Beauty, Body Shaping.

Field | Description |
displayName | Chinese Name |
displayNameEn | English Name |
icon | Image address, supports setting local images and network images. Local images support assets resources and SD resources. Assets images are as shown in the image above. For SD card images, set the full path of the image. For network images, set the corresponding HTTP link. |
sdkParam | |
effectName | |
effectValue | |
resourcePath | |
extraInfo |
Filters, Animated Stickers and Segmentation.

Since the configuration of Filters, Animated Stickers and Segmentation is primarily identical, the JSON for filters is used here for illustration. The fields downloadPath and resourceUri are added here.
Field | Description |
downloadPath | If your filter material is downloaded from the network, then the configuration here is the location of your material stored locally after download, which is a relative path, and the full path is
set in TEDownloader.h using basicPath+the path set here |
resourceUri | If your material needs to be downloaded via network, configure the network address here, as in the third red box in the image above. However, if your filter material is local, configure the corresponding local address according to the figure above. |
Makeup

In the Makeup, the
makeupLutStrength field is added under extraInfo. This field is used to adjust the strength of the filter in the makeup material (if this makeup material supports adjusting the filter strength, configure it accordingly). This field can be referenced in the Effect Parameters table. TEBeautyKit Method Descriptions
/// Create TEBeautyKit object/// - Parameters:/// - effectMode: EFFECT_MODE_NORMAL (high-performance mode) EFFECT_MODE_PRO (default mode)/// When high-performance mode is enabled, the beauty effect uses less system CPU/GPU resources, which can reduce phone heating and lag, making it more suitable for long-term use on low-end devices./// Note: After enabling high-performance mode, the following beauty features will be unavailable:/// 1. Eyes: Eye width, eye height, remove eye bags/// 2. Eyebrows: Angle, distance, height, length, thickness, arch/// 3. Mouth: Smile lips/// 4. Face: Face slimming (natural, goddess, handsome), jawline reduction, wrinkle removal, nasolabial folds removal. It is recommended to use 'Face Shape' to achieve a comprehensive effect of larger eyes and face slimming/// - onInitListener: Callback+ (void)createXMagic:(EffectMode)effectMode onInitListener:(OnInitListener _Nullable)onInitListener;/// Beauty Filter Authentication+ (void)setTELicense:(NSString *)url key:(NSString *)key completion:(callback _Nullable )completion;/// Set beauty mode target- (void)setXMagicApi:(XMagic *_Nullable)xmagicApi;/// Beauty mute- (void)setMute:(BOOL)isMute;/// Set a feature on or off/// @param featureName Values can be found in XmagicConstant.FeatureName/// @param enable true for on, false for off- (void)setFeatureEnableDisable:(NSString *_Nullable)featureName enable:(BOOL)enable;/// Set frame synchronization mode/// @isSync Whether it is synchronous/// @syncFrameCount Number of frames to synchronize. -1 means unlimited. This parameter is meaningless if isSync is false- (void)setSyncMode:(BOOL)isSync syncFrameCount:(int)syncFrameCount;/// Process image beautification- (UIImage *_Nullable)processUIImage:(UIImage *_Nullable)inputImageimageWidth:(int)imageWidthimageHeight:(int)imageHeightneedReset:(bool)needReset;/// Handle texture/// - Parameters:/// - textureId: Texture ID/// - textureWidth: Texture width/// - textureHeight: Texture height/// - origin: Enum value, when set to YtLightImageOriginBottomLeft, the image is flipped vertically/// - orientation: Enum value: image rotation angle- (YTProcessOutput *_Nullable)processTexture:(int)textureIdtextureWidth:(int)textureWidthtextureHeight:(int)textureHeightwithOrigin:(YtLightImageOrigin)originwithOrientation:(YtLightDeviceCameraOrientation)orientation;/// Handling CVPixelBufferRef/// - Parameters:/// - pixelData: Image data/// - pixelDataWidth: Image width/// - pixelDataHeight: Image height/// - origin: Enum value, when set to YtLightImageOriginBottomLeft, the image is flipped vertically/// - orientation: Enum value: Image rotation angle- (YTProcessOutput * _Nullable)processPixelData:(CVPixelBufferRef _Nullable )pixelDatapixelDataWidth:(int)pixelDataWidthpixelDataHeight:(int)pixelDataHeightwithOrigin:(YtLightImageOrigin)originwithOrientation:(YtLightDeviceCameraOrientation)orientation;/// Set beauty- (void)setEffect:(TESDKParam *_Nullable)sdkParam;/// Set beauty- (void)setEffectList:(NSArray<TESDKParam *>*_Nullable)sdkParamList;/// Is the beauty enhancement mode turned on- (BOOL)isEnableEnhancedMode;/// Enable beauty enhancement mode- (void)enableEnhancedMode:(BOOL)enable;/// Recover- (void)onResume;/// Pause- (void)onPause;/// Destroy- (void)onDestroy;//Get the current texture image- (void)exportCurrentTexture:(void (^_Nullable)(UIImage * _Nullable image))callback;/// Set log- (void)setLogLevel:(YtSDKLoggerLevel)level;/// Set AIDataListener- (void)setAIDataListener:(id<TEBeautyKitAIDataListener> _Nullable)listener;/// Set TipsListener- (void)setTipsListener:(id<TEBeautyKitTipsListener> _Nullable)listener;/// Save the beauty settings data- (void)saveEffectParam:(TESDKParam *_Nonnull)sdkParam;/// Delete a saved beauty data- (void)deleteEffectParam:(TESDKParam *_Nonnull)sdkParam;/// Clear saved beauty data- (void)clearEffectParam;/// Retrieve saved beauty data- (NSMutableArray<TESDKParam *> *_Nonnull)getInUseSDKParamList;/// Export the beauty data currently in use/// return json string- (NSString *_Nullable)exportInUseSDKParam;/// Set beauty data/// - Parameter params: JSON string/// If you also want to set the panel UI, you only need to call TEPanelView's setExportParamList- (void)setExportedSDKParam:(NSString *_Nonnull)params;/// Enable beauty mode?- (void)enableBeauty:(BOOL)enable;/// SDK event listener interface/// @param listener Event listener callback, mainly divided into AI events, Tips reminder events, and Asset events- (void)registerSDKEventListener:(id<YTSDKEventListener> _Nullable)listener;/// Register callback cleanup interface- (void)clearListeners;
TEUIConfig Descriptions
///The colour of the following properties can be modified externally/// Beauty panel background colour@property (nonatomic, strong) UIColor *panelBackgroundColor;/// Divider colour@property (nonatomic, strong) UIColor *panelDividerColor;/// Selected item colour@property (nonatomic, strong) UIColor *panelItemCheckedColor;/// Text colour@property (nonatomic, strong) UIColor *textColor;/// Text selection colour@property (nonatomic, strong) UIColor *textCheckedColor;/// Progress bar colour@property (nonatomic, strong) UIColor *seekBarProgressColor;/// Singleton+ (instancetype)shareInstance;/// Set panel resource path/// - Parameter resources: List of resource paths/// e.g. @[@{TEUI_BEAUTY : @"json file path"}]- (void)setTEPanelViewResources:(NSArray<NSDictionary *> *)resources;/// Get panel resource path- (NSArray<NSDictionary *> *)getTEPanelViewResources;
TEPanelView Description
/// Beauty SDK object@property (nonatomic, weak) XMagic *beautyKitApi;/// BeautyKit object@property (nonatomic, strong) TEBeautyKit *teBeautyKit;/// Delegate@property (nonatomic, weak) id<TEPanelViewDelegate> delegate;/// Set exported beauty data- (void)setExportParamList:(NSString *)lastParamList;/// Default beauty- (void)setDefaultBeauty;/// Reset all effects- (void)performFullReset;/// Enhanced mode- (void)setEnhancedMode:(BOOL)enhancedMode;/// Show compare button- (void)isShowCompareBtn:(BOOL)isShow;
