TEBeautyKit 통합
Features

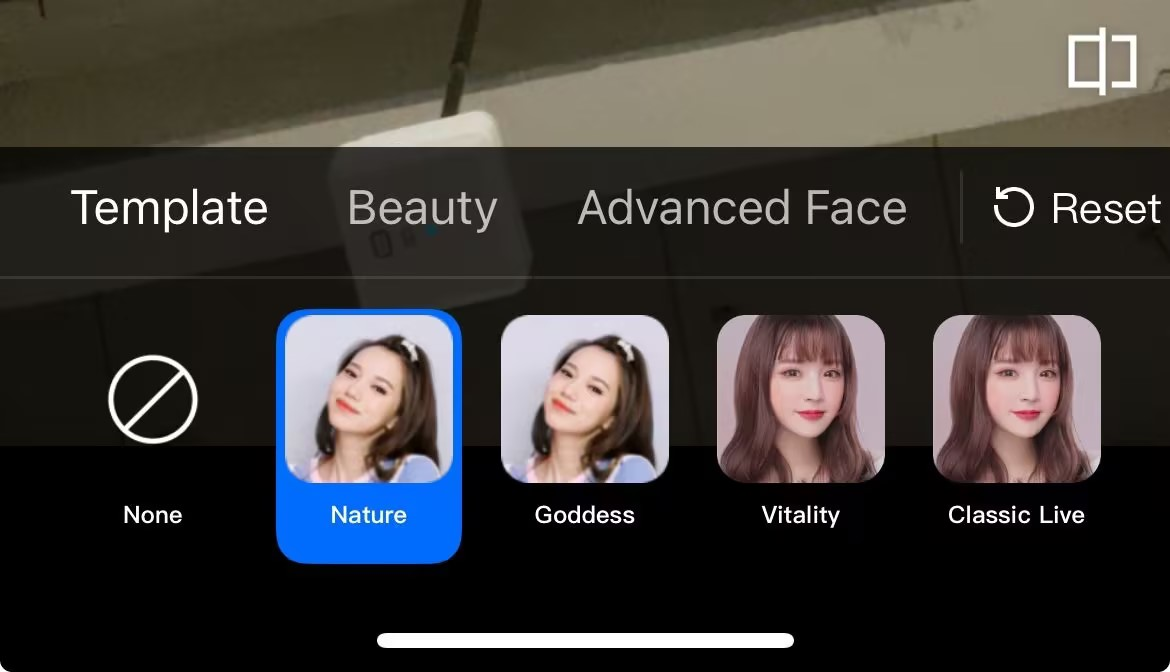

To facilitate customers' quick integration of the beauty effect and simplify the development of UI panels, we provide the beauty effect UI component: TEBeautyKit. It includes further encapsulation of the SDK and customizable UI panels, as shown in the figure below:
Demo Project: TEBeautyDemo
Clone the demo project from GitHub, follow the instructions in the TEBeautyDemo/README document to run TEBeautyDemo, and then refer to this document for detailed steps on integrating the SDK with UI.
Integrate TEBeautyKit
Note:
This library only supports Tencent Effect SDK V3.5.0 and later versions.
Step 1: Add dependency library
Step 2: Add TEBeautyKit dependency
Copy the TEBeautyKit module from the demo project into your project, and modify the SDK package type and version number in
tebeautykit/build.gradle
to match the SDK package type and version number in Step 1.implementation 'com.tencent.mediacloud:TencentEffect_S1-04:SDK version number'
Then add the dependency on the TEBeautyKit module in the relevant module of your app:
implementation project(':tebeautykit')
Add the dependency on the TEBeautyKit library in your app's dependencies. The SDK version number should match the version number in Step 1.
dependencies{...implementation 'com.tencent.mediacloud:TEBeautyKit:SDK version number'}
Since TEBeautyKit also depends on components like Gson and OkHttp, you need to add the following dependencies:
dependencies{implementation 'com.google.code.gson:gson:2.8.2'implementation 'com.squareup.okhttp3:okhttp:3.9.0'implementation 'com.github.bumptech.glide:glide:4.12.0'implementation 'androidx.appcompat:appcompat:1.0.0'implementation 'androidx.constraintlayout:constraintlayout:2.1.3'implementation 'androidx.recyclerview:recyclerview:1.2.1'}
Download TEBeautyKit (The downloaded file will be a zip file. Extract it to get the AAR file.)
Copy the
tebeautykit-xxxx.aar
file to the app project's libs
directory.Open the app module's
build.gradle
and add the dependency reference:dependencies{...implementation fileTree(dir: 'libs', include: ['*.jar','*.aar'])}
Since TEBeautyKit also depends on components like Gson and OkHttp, you need to add the following dependencies:
dependencies{implementation 'com.google.code.gson:gson:2.8.2'implementation 'com.squareup.okhttp3:okhttp:3.9.0'implementation 'com.github.bumptech.glide:glide:4.12.0'implementation 'androidx.appcompat:appcompat:1.0.0'implementation 'androidx.constraintlayout:constraintlayout:2.1.3'implementation 'androidx.recyclerview:recyclerview:1.2.1'}
Step 3: Add the Panel JSON File
Obtain the panel configuration file from the demo project's
demo/src/main/assets/beauty_panel
, or click here to download and unzip it. The file includes configurations for beauty, body beauty, filters, dynamic effect stickers, and segmentation properties. Select a set of JSON files according to your package type and place them in the assets/beauty_panel
folder in your project (the panel_icon folder also needs to be placed in this directory).

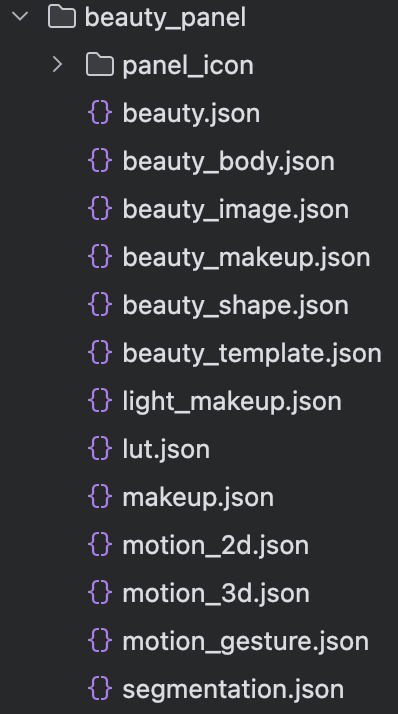

The downloaded archive contains the files as shown above. Each package name corresponds to several JSON files. The table below explains each JSON file:
File | Note |
beauty_body.json | UI panel configuration file with body beautifying features. |
beauty_S1.json | UI panel configuration file with beautifying features. |
lut.json | UI panel configuration file with filter features. Note: As the filter materials used by different customers vary, customers can customize the configuration following the json structure after the download (refer to json file structure explanation), eliminating the default configuration. |
makeup.json | UI panel configuration file with makeup features. Note: Due to the different stylistic makeup materials used by different customers, after downloading, customers can self-configure according to the json structure(please refer to json file structure explanation), and remove the default configuration. |
motions.json | UI panel configuration file with dynamic stickers. Node: Due to the varying dynamic sticker materials used by different clients, after downloading, clients can follow the json structure for their own configuration (as referred to in json file structure instructions), and delete default configurations. |
panel_icon | This folder is used for storing images configured in the json file, it is essential to add. |
segmentation.json | UI panel configuration file with segmentation feature. Node: Given that different clients use different splitting materials, they can configure it themselves as per the JSON structure, post download(please refer to JSON file structure explanation) and eliminate the default configuration. |
How to Use TEBeautyKit
We strongly recommend that you refer to the
TEMenuActivity.java
and TECameraBaseActivity.java
of the demo project's to understand how to integrate TEBeautyKit.Step 1: Authenticate
1. Apply for authorization to obtain the license URL and license key. Please refer to the License Guide.
2. Set the URL and key in the initialization code of the related business module to trigger license download to avoid downloading temporarily before use. For example, in our demo project, the download is triggered in the onCreate method of the application. However, we do not recommend triggering it here in your project because network permission might not be available or there could be a high rate of network failure at this time. Please choose a more appropriate time to trigger the license download.
// If you only want to trigger the download or update the license without caring about the authentication result, input null for the fourth parameter.//TEApplication.javaTEBeautyKit.setTELicense(context, LicenseConstant.mXMagicLicenceUrl, LicenseConstant.mXMagicKey, null);
3. Perform authentication before actually using the beauty feature (e.g., before launching the camera):
//TEMenuActivity.javaTEBeautyKit.setTELicense(context, LicenseConstant.mXMagicLicenceUrl, LicenseConstant.mXMagicKey, new TELicenseCheckListener() {@Overridepublic void onLicenseCheckFinish(int errorCode, String msg) {// Note: This callback may not be on the calling thread.if (errorCode == TELicenseCheck.ERROR_OK) {// Authentication succeeded.} else {// Authentication failed.}}});
Authentication error code description:
Error Code | Description |
0 | Success |
-1 | Invalid input parameters, such as empty URL or KEY |
-3 | Download failure. Please check your network settings. |
-4 | TE authorization information read locally is empty, possibly due to I/O failure. |
-5 | Content of the VCUBE TEMP license file is empty, possibly due to I/O failure. |
-6 | JSON fields in the v_cube.license file are incorrect. Please contact the Tencent Cloud team to deal with it. |
-7 | Signature verification failed. Please contact the Tencent Cloud team to deal with it. |
-8 | Decryption failed. Please contact the Tencent Cloud team to deal with it. |
-9 | JSON fields in the TELicense field are incorrect. Please contact the Tencent Cloud team to deal with it. |
-10 | The TE authorization information parsed from the network is empty. Please contact the Tencent Cloud team to deal with it. |
-11 | Failed to write TE authorization information to a local file, possibly due to I/O failure |
-12 | Download failed, and parsing local assets also failed. |
-13 | Authentication failed. Please check if the .so file is in the package or if the .so path is set correctly. |
3004/3005 | Invalid authorization. Please contact the Tencent Cloud team to deal with it. |
3015 | Bundle ID/Package Name mismatch. Check if the Bundle ID/Package Name used by your app is consistent with the applied one, and ensure you are using the correct license file. |
3018 | The license file has expired. You need to apply for a renewal from Tencent Cloud. |
Others | Please contact the Tencent Cloud team to deal with it. |
Step 2: Set the path
//TEMenuActivity.javaString resPath = new File(getFilesDir(), AppConfig.getInstance().getBeautyFileDirName()).getAbsolutePath();TEBeautyKit.setResPath(resPath);
Step 3: Copy resources
The resource files mentioned here consist of two parts:
The SDK model files, located in the
assets
directory of the SDK's AAR package.Filter and dynamic effect resource files, located in the
assets
directory of the demo project, named lut
and MotionRes
respectively.Before using the beauty effect, you need to copy the above resources to the resPath set in Step 2. If the SDK version is not updated, you only need to copy it once. After a successful copy, you can record it in the SharedPreference of the app, so that you do not need to copy it again next time. For details, refer to the
copyRes
method of TEMenuActivity.java
in the demo project.//TEMenuActivity.javaprivate void copyRes() { if (!isNeedCopyRes()) { return; } new Thread(() -> { TEBeautyKit.copyRes(getApplicationContext()); }).start(); }
Step 4: Initialize TEBeautyKit and add the view to the page
//TECameraBaseActivity.javaTEBeautyKit.create(this.getApplicationContext(), beautyKit -> { mBeautyKit = beautyKit; initBeautyView(beautyKit); });public void initBeautyView(TEBeautyKit beautyKit){ TEUIConfig.getInstance().setTEPanelViewRes("beauty_panel/S1_07/beauty.json", "beauty_panel/S1_07/beauty_body.json", "beauty_panel/S1_07/lut.json", "beauty_panel/S1_07/motions.json", "beauty_panel/S1_07/makeup.json", "beauty_panel/S1_07/segmentation.json"); mTEPanelView = new TEPanelView(this); mTEPanelView.setTEPanelViewCallback(this); mTEPanelView.setupWithTEBeautyKit(beautyKit); mTEPanelView.showView(this); this.mPanelLayout.addView(mTEPanelView, new LinearLayout.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.WRAP_CONTENT)); }
The parameter in the
TEUIConfig.getInstance().setTEPanelViewRes
method is the JSON file in the src/main/assets/beauty_panel mentioned above. If you do not need a particular item, you can input null at the corresponding position.Step 5: Use beauty effect
We assume you have already implemented the camera application, can start the camera normally, and can call back the camera's SurfaceTexture texture information to Activity for beauty effect processing, as shown below:
//TECameraBaseActivity.java@Overridepublic int onCustomProcessTexture(int textureId, int textureWidth, int textureHeight) {// The beauty effect SDK processes the textureId here, adds beauty effects and special effects for it, and returns the processed new textureID.}
If you have not yet implemented the camera application, you can refer to
TECameraBaseActivity.java
in the demo project and use the GLCameraXView
component to add it to your Activity's layout for quick camera preview:<com.tencent.demo.camera.camerax.GLCameraXViewandroid:id="@+id/te_camera_layout_camerax_view"android:layout_width="match_parent"android:layout_height="match_parent"app:back_camera="false"app:surface_view="false"app:transparent="true" />
The beauty effect SDK processes each frame of data and returns the corresponding processing results. For detailed information on the process method, see the API Documentation.
//TECameraBaseActivity.java@Override public int onCustomProcessTexture(int textureId, int textureWidth, int textureHeight) { return mBeautyKit.process(textureId, textureWidth, textureHeight); }
Step 6: Manage the lifecycle
Lifecycle method onResume: It is recommended to call it in the
Activity
's onResume()
method. When called, it will resume the sound in the effects.mBeautyKit.onResume();
Lifecycle method onPause: It is recommended to call it in the Activity's
onPause()
method. When called, it will pause the sound in the effects.mBeautyKit.onPause();
Beauty effect release SDK: It is called when the OpenGL environment is being terminated. It needs to be called in the GL thread, and cannot be called in the main thread (Activity's onDestroy); otherwise, it may cause resource leaks and result in a white or black screen after multiple entries and exits.
@Override public void onGLContextDestroy() { mBeautyKit.onDestroy(); }
Step 7: Export and import beauty effect parameters
Export the current beauty effect parameters and save them in SharedPreference:
String json = mBeautyKit.exportInUseSDKParam(); if (json != null) { getSharedPreferences("demo_settings", Context.MODE_PRIVATE).edit().putString("current_beauty_params", json).commit(); }
Next time when initializing TEBeautyKit, import this string to modify the default beauty effect:
Appendix
Panel JSON File Elucidation
Beautify, body shaping.
Field | Description |
displayName | Chinese Name |
displayNameEn | English Name |
icon | Image URL, supports both local and online images in Setting. Local images can come from assets and SD resources. As depicted above, assets images and SD card images are set as the full image path, while online images are set to their corresponding http link in Setting |
sdkParam | The Beautification SDK entails four attributes, refer to the beautification parameter table for more insights |
effectName | Key attributes for beautification, reference the attribute parameter table |
effectValue | Setting the attribute intensity, refer to the attribute parameter table |
resourcePath | Setting the resource path, refer to the attribute parameter table |
extraInfo | Setting other information, refer to the attribute parameter table |
Filter, sticker, segmentation.
The configuration of <1> filters and dynamic effect stickers is primarily identical, hence, the filter’s JSON is used for illustration here. Two new fields, downloadPath and resourceUri, have been added.
Field | Description |
downloadPath | If your filter material is downloaded from the internet, the configuration here represents the local storage location post-download. This pathway is a relative path ; the full path is the combination of
Step 2 + the path set here |
resourceUri | If your material needs to be downloaded via network, configure the network address here, as in the third red box in the image above. However, if your filter material is local, configure the corresponding local address according to the image above. |
Makeup
An additional field
makeupLutStrength
under extraInfo
has been included in the Full Style Makeup. This field is used to moderate the intensity of filters in the Full Style Makeup material<5> (configure this if the Full Style Makeup material supports filter intensity modulation). Refer to the beauty parameter table for this field.TEBeautyKit Method Descriptions
//Asynchronously creating the TEBeautyKit objectpublic static void create(@NonNull Context context, @NonNull OnInitListener initListener)//isEnableHighPerformance: Does High Performance Pattern is active?//After the High Performance Pattern is enabled, the system CPU/GPU resources occupied by Beauty enhancement are less, which reduces phone heating and stutters. It’s more suitable for long-term use on lower-end devices.//However, please note: after enabling the high performance pattern, the following beauty options will be disabled://1.Eye section: Eye width, Eye height, Elimination of eye bags//2.Eyebrows: angle, distance, height, length, thickness, eyebrow peak//3. Mouth: Smile Lip//4. Facial: Slimming (natural, goddess, handsome), tightening lower jaw, wrinkle removal, removing nasolabial folds. It is recommended to use "face shape" to achieve a comprehensive, large-eyed, slimming effectpublic static void create(@NonNull Context context, boolean isEnableHighPerformance, @NonNull OnInitListener initListener)//The constructor of TEBeautyKit used for synchronously creating the TEBeautyKit objectpublic TEBeautyKit(Context context)/** * @param context ApplicationContext * @param isEnableHighPerformance Does it enable high-performance pattern? */ public TEBeautyKit(Context context, boolean isEnableHighPerformance)/** * Set the mute state * * @param isMute true indicates mute */ public void setMute(boolean isMute)/** * If you are carrying out beauty processing on pictures, you need to invoke this method to set the type of the data source, which could either be a camera data source or a picture data source. * Camera data source: XmagicApi.PROCESS_TYPE_CAMERA_STREAM Picture data source: XmagicApi.PROCESS_TYPE_PICTURE_DATA. * @param type The default type is a video stream. */ public void setBeautyStreamType(int type)/** * Enable or disable a specific feature * * @param featureName This takes a value from XmagicConstant.FeatureName * @param enable true signifies enabling, false signifies disabling */ public void setFeatureEnableDisable(String featureName, boolean enable)/** * Perform beautification on the image * * @param bitmap * @param needReset * @return */ public Bitmap process(Bitmap bitmap, boolean needReset)/** * Process each frame of video/camera data * * @param textureId The id of the texture. This texture requires a texture type of GL_TEXTURE_2D and a pixel texture format of RGBA * @param width Texture width * @param height Texture height * @return Processed texture ID */ public int process(int textureId, int width, int height)/** * Update beauty properties * * @param paramList */ public void setEffectList(List<TEUIProperty.TESDKParam> paramList)/** * Updating the beauty attribute * * @param teParam */ public void setEffect(TEUIProperty.TESDKParam teParam)/** * Enable or disable enhanced pattern * * @param enableEnhancedMode true indicates the activation of the enhanced pattern, false deactivates the enhanced pattern * @return A return value of true indicates a state change has occurred, false indicates no change in state */ public boolean enableEnhancedMode(boolean enableEnhancedMode)/** * Retrieve the currently active beauty attributes as a string. * Clients can save the exported string locally and call the `setLastParamList` method after creating a TEPanelView object. * @return */ public String exportInUseSDKParam()/** * Used to restore the sound in stickers * Restore the Gyroscope sensor */ public void onResume()/** * Used for pausing the audio in stickers * Pause the gyroscope sensor */ public void onPause()/** * Destroy the beautifying effects * Note: It is essential to invoke this method in the GL thread */ public void onDestroy()/** * Set event listener, used for listening to Smartphone direction events, for adapter * @param listener Event listener callback */ public void setEventListener(EventListener listener)/** * SettingsetAIDataListener callback * * @param aiDataListener */ public void setAIDataListener(XmagicApi.XmagicAIDataListener aiDataListener)/** * Callback function for Setting motion effect tips, used to display the tips on the front-end page. * * @param tipsListener */ public void setTipsListener(XmagicApi.XmagicTipsListener tipsListener)/** * Intercept the screen on the current texture * * @param callback */ public void exportCurrentTexture(XmagicApi.ExportTextureCallback callback)/** * Set the anti-clockwise degree of texture rotation. * Primary Function: Used for the SDK's internal rotation of texture, post rotation to a certain degree, faces are upright, enabling in-house SDK to identify faces. * By default, the SDK internally utilizes the sensor to ascertain the required degree of rotation. * * @param orientation Values can only be 0,90,180,270 */ public void setImageOrientation(TEImageOrientation orientation)/** * Determine if the current device supports this material * * @param motionResPath The path to the material file * @return */ public boolean isDeviceSupport(String motionResPath)/** * Access the on and off state of the beauty effect * * @return EffectState */ public EffectState getEffectState()/** * Indicates whether the beautification feature is enabled * * @param effectState ENABLED signifies it's turned on, DISABLED signifies it's turned off */ public void setEffectState(EffectState effectState)/** * Strategy implementation class for enhancing pattern settings. If not configured, the default implementation will be utilized. * * @param teParamEnhancingStrategy Class for enhancing pattern processing. */ public void setParamEnhancingStrategy(TEParamEnhancingStrategy teParamEnhancingStrategy)//The following are the static methods/** * Specifying the directory for beautification resources * * @param resPath */ public static void assignResPath(String resPath)/** * Unpack resource files from apk's assets to a specified path. First, you need to set the path: {@link #setResPath(String)}. <br> * This should be called once after first install of the App, or after an App update. * Copy xmagic resource from assets to local path. */ public static boolean copyRes(Context context)/** * Carry out beauty enhancement authorization check * Attention: while using this method, if the callback interface isn't configured, authentication will not be performed (only network download of authentication information will be made), * Therefore, you can refer to the demo not to configure the callback while calling in application, but call this method again before using the TEBeautyKit object (configuring callback interface) for authentication. * @param context Application context * @param licenseKey The licenseKey applied for on the platform * @param licenseUrl The licenseUrl applied for on the platform * @param teLicenseCheckListener Authentication callback interface */ public static void setTELicense(Context context, String licenseUrl, String licenseKey, TELicenseCheck.TELicenseCheckListener teLicenseCheckListener)
TEUIConfig explanation
Alter the panel color
Global modification: After accessing the object through
TEUIConfig.getInstance()
, you can adjust the panel color by modifying the following fields.Partial Modification: Using the
new TEUIConfig
object, adjust the panel color by modifying the following fields, and update the panel style using the TEPanelView.updateUIConfig
method.@ColorInt public int panelBackgroundColor = 0x66000000; //Default background color @ColorInt public int panelDividerColor = 0x19FFFFFF; //Separator color @ColorInt public int panelItemCheckedColor = 0xFF006EFF; //Selected item color @ColorInt public int textColor = 0x99FFFFFF; //Text color @ColorInt public int textCheckedColor = 0xFFFFFFFF; //Selected text color @ColorInt public int seekBarProgressColor = 0xFF006EFF; //Progress bar color
JSON file of the configuration panel
/** * Set the JSON file path for the beauty panel * @param beauty JSON file path for beauty attributes, if not, set to null * @param beautyBody JSON file path for body beauty attributes, if not, set to null * @param lut JSON file path for filter attributes, if not, set to null * @param motion JSON file path for dynamic sticker attributes, if not, set to null * @param makeup JSON file path for complete makeup style attributes, if not, set to null * @param segmentation JSON file path for segmentation attributes, if not, set to null */ public void setTEPanelViewRes(String beauty, String beautyBody, String lut, String motion, String makeup, String segmentation)
Updating Panel Language
//When the client program detects a modification to the system's font, it may invoke this function. At present, the panel only supports Chinese and English.public void setSystemLocal(Locale locale)
Description of TEPanelView
/** * This is utilized for setting the previously used beauty effect data, with the intent to revert the beauty panel back to its prior state. * Note: This method needs to be used prior to the {@link #showView(TEPanelViewCallback tePanelViewCallback)}} method. * * @param lastParamList The beauty data, which is accessible through the {@link TEBeautyKit#exportInUseSDKParam()} ()}} method, and then stored, to be passed as a string when starting the beauty feature the next time. */ void setLastParamList(String lastParamList); /** * Present the beauty panel * @param tePanelViewCallback The interface callback for panel events */ void showView(TEPanelViewCallback tePanelViewCallback); /** * Synchronizes with TEBeautyKit object, which the beauty panel calls directly to set attributes when a user selects an item. * @param beautyKit The TEBeautyKit object */ void setupWithTEBeautyKit(TEBeautyKit beautyKit);/** * Select Self-Definition split or green screen item from the Settings, because the green screen or Self-Definition split button jumps to the gallery after clicking, * Only after the user has selected a picture or video, the corresponding item can be selected. If the user cancels the operation during this process, the corresponding item cannot be selected * * @param uiProperty */ void validatePanelViewItem(TEUIProperty uiProperty);/** * Configuring the UI of the current panel * @param uiConfig */ void updateUIConfig(TEUIConfig uiConfig);
