Feature Description
This document describes how to use the CDNStreaming plugin to implement cloud-based stream mixing, relay streams to CDN, and push mixed streams back to TRTC rooms.
Prerequisites
1. ﻿TRTC SDK version must be >= 5.1.
2. Enable the Tencent Cloud Live service.

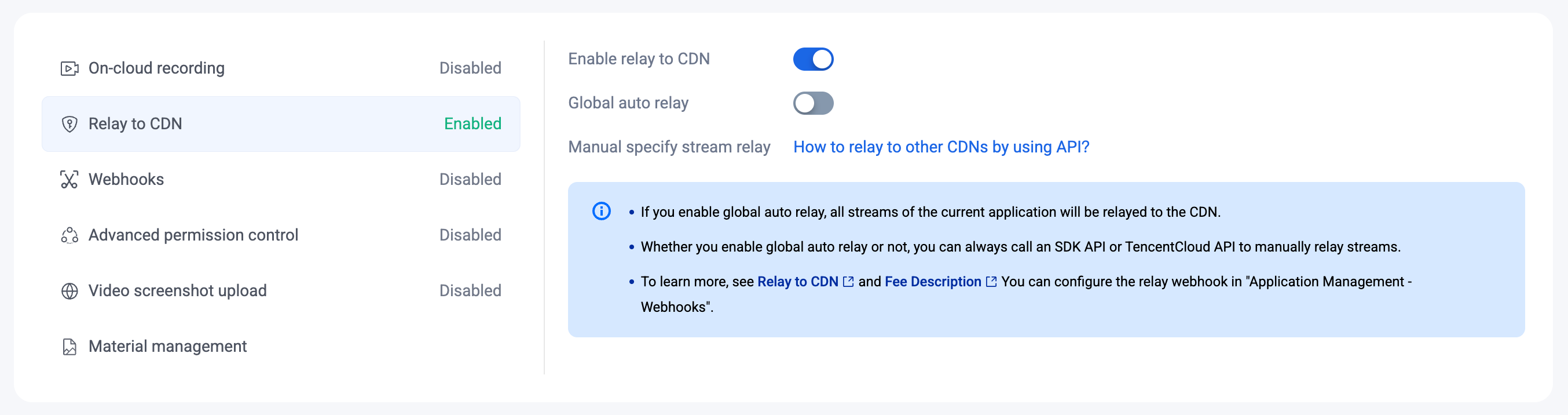

3. In the TRTC Console - Advanced Features, click Relay to CDN, and enable the Enable relay to CDN switch.
  Relay Mode Options:
Global Auto-Relay: When the Global auto relay is enabled, all upstream audio and video streams in TRTC are automatically relayed to TRTC CDN.
Manual Relay: When the Global auto relay is disabled, you can use this plugin or the server REST API to relay specific audio and video streams to the CDN and specify the playback address.
﻿
Getting Started
Install and Register the Plugin
import TRTC from 'trtc-sdk-v5';
import { CDNStreaming, PublishMode } from 'trtc-sdk-v5/plugins/cdn-streaming';
﻿
const trtc = TRTC.create({ plugins: [CDNStreaming] });
Plugin Modes Overview
This plugin provides four streaming modes:
Mode
PublishMode
Description
A
PublishMainStreamToCDN
Relay camera and microphone stream to CDN.
B
PublishSubStreamToCDN
Relay screen sharing stream to CDN.
C
PublishMixStreamToCDN
Mix multiple streams and relay to CDN.
D
PublishMixStreamToRoom
Mix multiple streams and push back to TRTC room.
For each mode, the following lifecycle applies:
trtc.startPlugin('CDNStreaming', options) : Starts the plugin.
trtc.updatePlugin('CDNStreaming', options) : Updates parameters (0 or more times).
trtc.stopPlugin('CDNStreaming', options) : Stops the plugin.
For detailed descriptions about options, see CDNStreamingOptions.

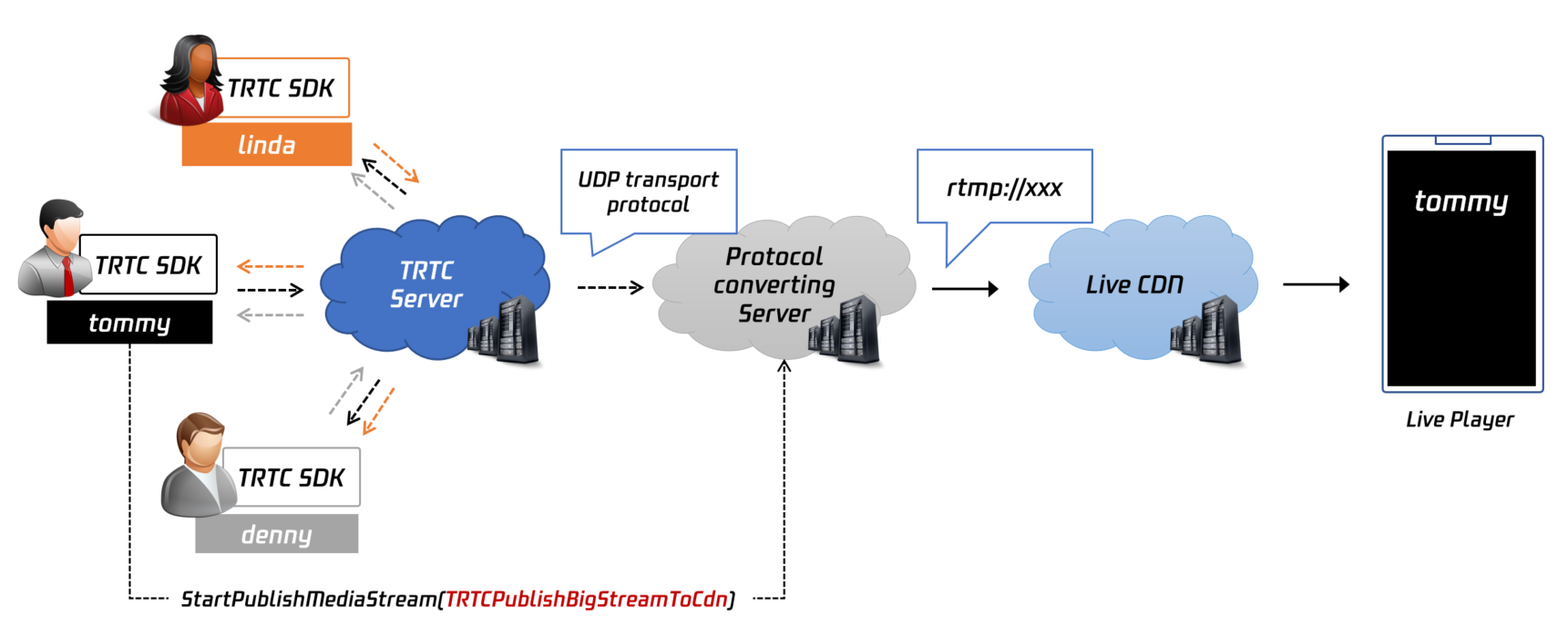

Relay a Single Stream to CDN
Relay a camera stream (Mode A) or screen sharing stream (Mode B) to TRTC CDN.
Step 1: Select a Relay Mode
In TRTC Console - Advanced Features, select your relay mode:
Global Auto-Relay Mode:
Streams will be automatically pushed to CDN with the following default playback address format:
http://[playback-domain]/live/[streamId].flv
[playback-domain]: The playback domain configured in Domain Management﻿
Default [streamId] for camera stream: ${sdkAppId}_${roomId}_${userId}_main
Default [streamId] for screen sharing: ${sdkAppId}_${roomId}_${userId}_aux
When roomId or userId contain special characters, [streamId] uses MD5 hashing on the string ${roomId}_${userId}_main: ${sdkAppId}_${md5(${roomId}_${userId}_main)}
Manual Relay Mode:
Streams will not be automatically pushed. Follow Step 2 below to manually enable streaming.
Step 2: Start Relay
// Start relaying camera stream
const options = {
  target: {
    publishMode: PublishMode.PublishMainStreamToCDN
  }
}
try {
  await trtc.startPlugin('CDNStreaming', options);
} catch (error) {
  console.error('CDNStreaming start failed', error);
}
The playback address will be: http://[playback-domain]/live/${sdkAppId}_${roomId}_${userId}_main.flv
Step 3: Update StreamId (Optional)
// Customize the playback address
const options = {
  target: {
    publishMode: PublishMode.PublishMainStreamToCDN,
    streamId: 'stream001'
  }
}
try {
  await trtc.updatePlugin('CDNStreaming', options);
} catch (error) {
  console.error('CDNStreaming update failed', error);
}
The new playback address will be: http://[playback-domain]/live/stream001.flv
Step 4: Stop Relay
const options = {
  target: {
    publishMode: PublishMode.PublishMainStreamToCDN,
  }
}
try {
  await trtc.stopPlugin('CDNStreaming', options);
} catch (error) {
  console.error('CDNStreaming stop failed', error);
}
You can view the current stream status in the Stream Management Interface.
Relay Mixed Stream to CDN
Mix multiple audio and video streams in the room into one stream and relay it to CDN.
For other platform implementations, refer to Cloud-Based Stream Mixing and Transcoding.
How It Works
This plugin sends commands to TRTC's transcoding server to mix multiple streams. You can customize:
encoding: Output stream quality (resolution, bitrate, frame rate)
mix: Layout configuration for the mixed streams
﻿
﻿
﻿
Example Workflow

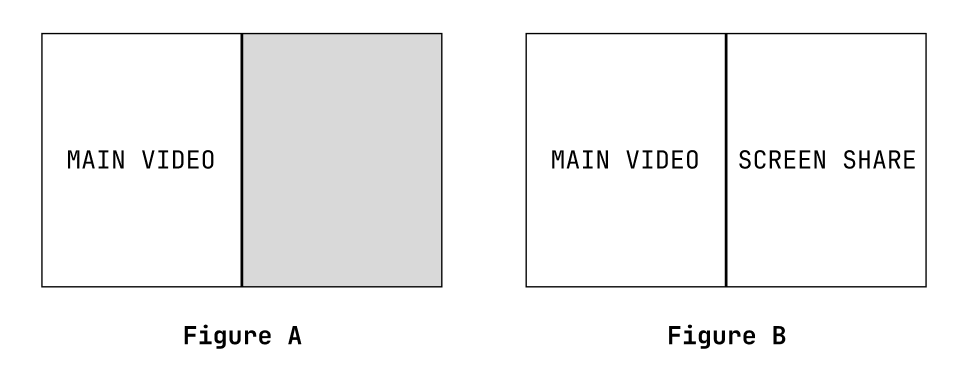

1. Call startPlugin- the mixing layout is shown in Figure A
2. Call updatePlugin to add screen sharing - the mixing layout is shown in Figure B
3. Call stopPlugin when mixing is no longer needed
﻿
Configuration
1. Set target.publishMode to PublishMode.PublishMixStreamToCDN
2. Configure encoding for output quality: videoWidth, videoHeight, videoBitrate, videoFramerate, videoGOP, audioSampleRate, audioBitrate, audioChannels
3. Configure mix.backgroundColor and mix.backgroundImage for the background
Tip：

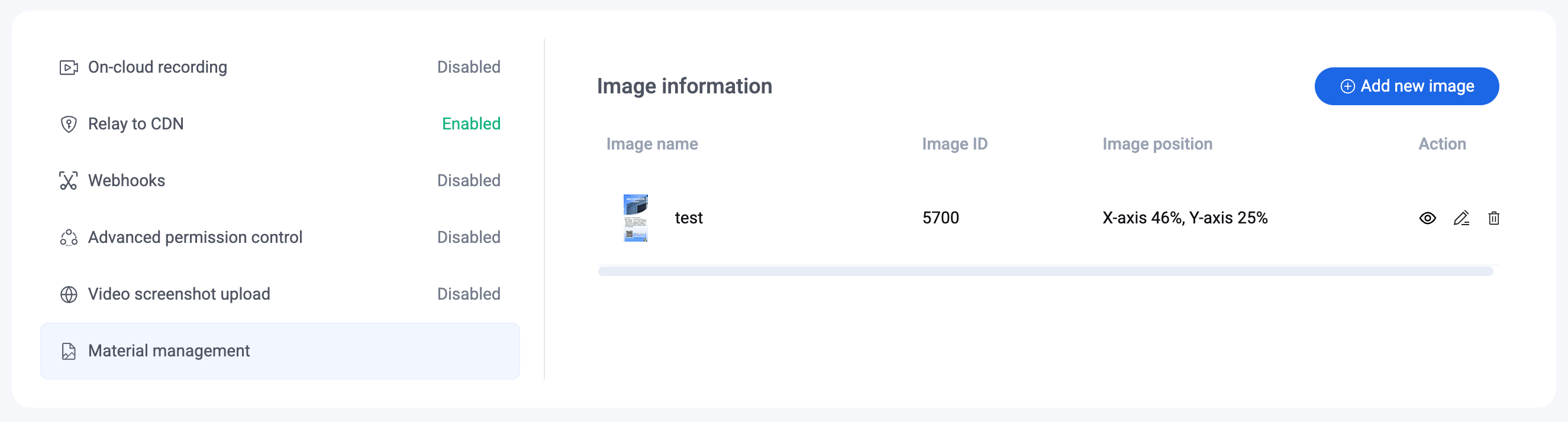

Background images must be uploaded in TRTC Console - Advanced Features > Material management. Use the "Image ID" as a string for backgroundImage (e.g., "63").
﻿
4. Configure mix.audioMixUserList for audio mixing (if empty, all users will be mixed by default)
5. Configure mix.videoLayoutList for video layout
Tip：
Coordinate system:
The origin (0, 0) is at the top-left corner of the output canvas, measured in pixels.
locationX/locationY specifies the top-left position of each stream.
width/height defines the layout region size.
All coordinates and sizes are relative to encoding.videoWidth/encoding.videoHeight - if you change the resolution, scale the layout parameters accordingly to avoid misalignment.
Start Mixing
let options = {
  target: {
    publishMode: PublishMode.PublishMixStreamToCDN,
    streamId: 'mix-stream',
  },
  encoding: {
    videoWidth: 1280,
    videoHeight: 720,
    videoBitrate: 1500,
    videoFramerate: 15,
  },
  mix: {
    audioMixUserList: [
      { userId: 'current_user_id' }
    ],
    videoLayoutList: [
      {
        fixedVideoUser: { userId: 'current_user_id' },
        width: 640,
        height: 480,
        locationX: 0,
        locationY: 0,
        fixedVideoStreamType: TRTC.TYPE.STREAM_TYPE_MAIN,
        zOrder: 1
      },
    ]
  }
};
try {
  await trtc.startPlugin('CDNStreaming', options);
} catch (error) {
  console.error('CDNStreaming start failed', error);
}
The playback address will be: http://[playback-domain]/live/mix-stream.flv
Update Layout
// Add screen sharing to the mix
let options = {
  target: {
    publishMode: PublishMode.PublishMixStreamToCDN,
    streamId: 'mix-stream',
  },
  encoding: {
    videoWidth: 1280,
    videoHeight: 720,
    videoBitrate: 1500,
    videoFramerate: 15,
  },
  mix: {
    audioMixUserList: [
      { userId: 'current_user_id' }
    ],
    videoLayoutList: [
      {
        fixedVideoUser: { userId: 'current_user_id' },
        width: 640,
        height: 480,
        locationX: 0,
        locationY: 0,
        fixedVideoStreamType: TRTC.TYPE.STREAM_TYPE_MAIN,
        zOrder: 1
      },
      {
        fixedVideoUser: { userId: 'current_user_id' },
        width: 640,
        height: 480,
        locationX: 640,
        locationY: 0,
        fixedVideoStreamType: TRTC.TYPE.STREAM_TYPE_SUB,
        zOrder: 1
      },
    ]
  }
}
try {
  await trtc.updatePlugin('CDNStreaming', options);
} catch (error) {
  console.error('CDNStreaming update failed', error);
}
Stop Mixing
let options = {
  target: {
    publishMode: PublishMode.PublishMixStreamToCDN,
  }
}
try {
  await trtc.stopPlugin('CDNStreaming', options);
} catch (error) {
  console.error('CDNStreaming stop failed', error);
}
Push to Third-Party CDN
Push streams to a CDN from any cloud service provider.
Step 1: Get CDN Push Address
Obtain a CDN stream push address (URL) from your cloud service provider.
Step 2: Get bizId and appId

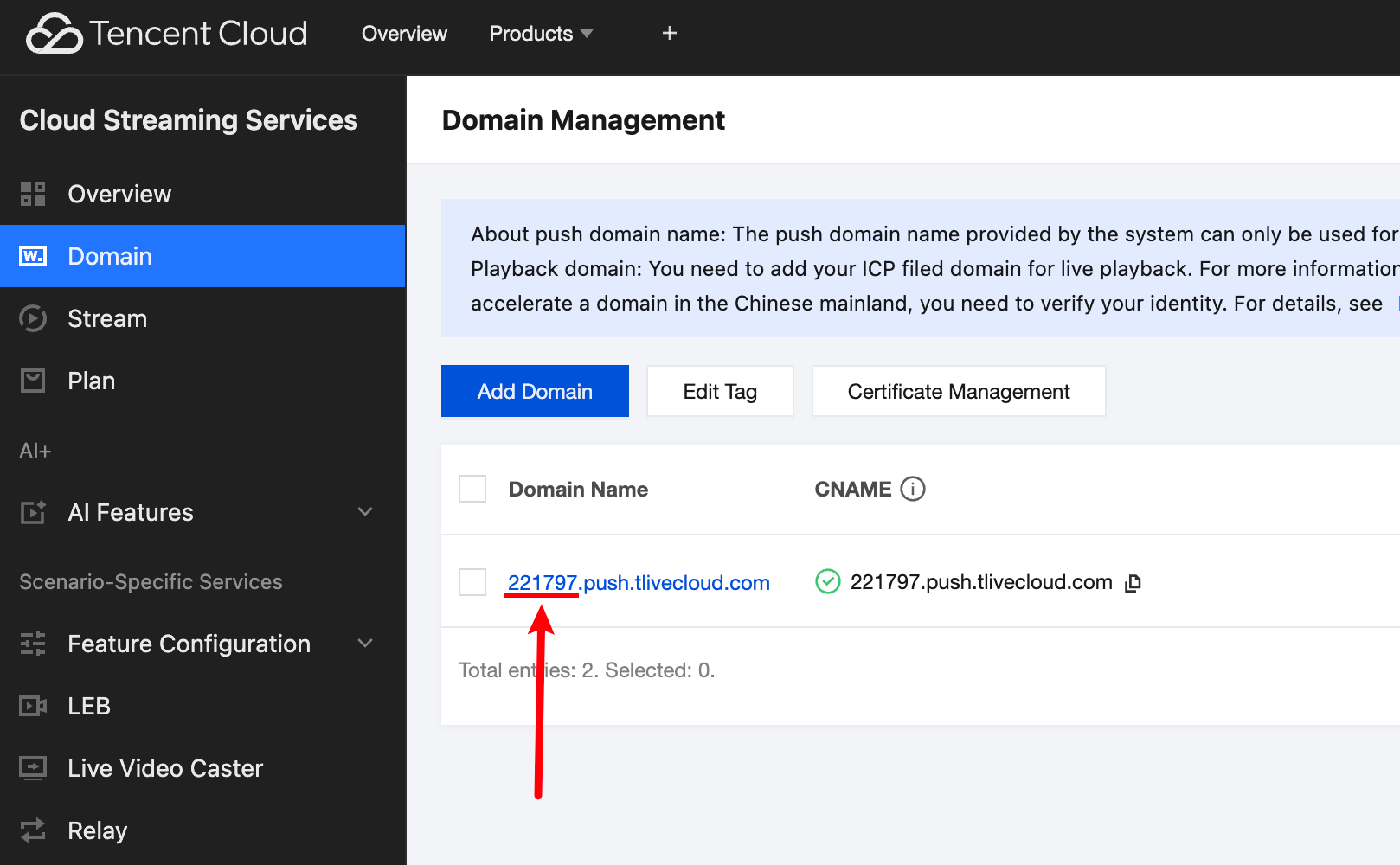

In TRTC Console - Advanced Features, find your push domain (format: xxxxx.push.tlivecloud.com):
xxxxx is the bizId
Use your SDKAppId as appId
﻿
Step 3: Start Publishing
let options = {
  target: {
    publishMode: PublishMode.PublishMainStreamToCDN,
    appId: 0,    // Your appId
    bizId: 0,    // Your bizId
    url: ''      // Your CDN push address
  }
};
try {
  await trtc.startPlugin('CDNStreaming', options);
} catch (error) {
  console.error('CDNStreaming start customCDN failed', error);
}
Stop Publishing
let options = {
  target: {
    publishMode: PublishMode.PublishMainStreamToCDN,
  }
}
try {
  await trtc.stopPlugin('CDNStreaming', options);
} catch (error) {
  console.error('CDNStreaming stop customCDN failed ', error);
}
Push Back to TRTC Room
Mix streams and push the mixed stream back to a specified TRTC room as a robot user.
Note:
A robot user with userId as mcu_robot_${roomId}_${userId} will automatically enter the current room to relay the mixed stream. Ensure this userId doesn't conflict with existing users.
This feature incurs transcoding fees for stream mixing.
When audioMixUserList is empty, all users are mixed by default. To disable audio mixing, pass a non-existent userId.
For full parameter details, see CDNStreamingOptions.
Start Pushing Back
// User user_123 in room 3333 initiates this task
// Mixed stream will be published as robot push_back_user_321 in room 4444
let options = {
  target: {
    publishMode: PublishMode.PublishMixStreamToRoom,
    robotUser: {
      userId: 'push_back_user_321', // Recommended: dynamically generate this ID
      roomId: 4444,
    }
  },
  encoding: {
    videoWidth: 1280,
    videoHeight: 720,
    videoBitrate: 1500,
    videoFramerate: 15,
  },
  mix: {
    audioMixUserList: [
      { userId: 'user_123', roomId: 3333 }
    ],
    videoLayoutList: [
      {
        fixedVideoUser: { userId: 'user_123', roomId: 3333 },
        width: 640,
        height: 480,
        locationX: 0,
        locationY: 0,
        fixedVideoStreamType: TRTC.TYPE.STREAM_TYPE_MAIN,
        zOrder: 1
      },
      {
        fixedVideoUser: { userId: 'user_123', roomId: 3333 },
        width: 640,
        height: 480,
        locationX: 640,
        locationY: 0,
        fixedVideoStreamType: TRTC.TYPE.STREAM_TYPE_SUB,
        zOrder: 1
      },
    ]
  }
};
try {
  await trtc.startPlugin('CDNStreaming', options);
} catch (error) {
  console.error('CDNStreaming start push stream to room failed', error);
}
Update Layout
let options = {
  target: {
    publishMode: PublishMode.PublishMixStreamToRoom
  },
  mix: {
    videoLayoutList: [
      {
        fixedVideoUser: { userId: 'user_123', roomId: 3333 },
        width: 640,
        height: 480,
        locationX: 640,
        locationY: 0,
        fixedVideoStreamType: TRTC.TYPE.STREAM_TYPE_MAIN,
        zOrder: 1
      }
    ]
  }
};
try {
  await trtc.updatePlugin('CDNStreaming', options);
} catch (error) {
  console.error('CDNStreaming update push stream to room failed', error);
}
Stop Pushing Back
let options = {
  target: {
    publishMode: PublishMode.PublishMixStreamToRoom,
  }
}
try {
  await trtc.stopPlugin('CDNStreaming', options);
} catch (error) {
  console.error('CDNStreaming stop push stream to room failed ', error);
}
API Description
For startPlugin('CDNStreaming', options) and updatePlugin('CDNStreaming', options), parameter types can be found in CDNStreamingOptions.
For stopPlugin('CDNStreaming', options),  you only need to specify the options.target.publishMode field.
Notes
1. To record mixed audio streams, refer to Cloud Recording.
2. Cloud-based stream mixing and transcoding requires decoding and re-encoding audio and video streams in the MCU cluster, which incurs additional service costs. TRTC charges users an additional value-added fee based on the transcoded output resolution and transcoding duration. Higher resolution and longer transcoding time result in higher costs. For details, refer to Cloud-Based Stream Mixing and Transcoding Billing Description.
3. For audio and video duration billing, refer to Billing Description.
4. Billing stops when you leave the room but automatically resumes when you re-enter. To completely terminate CDN relay and mixing, call stopPlugin with the corresponding publishMode.
FAQ
Unable to stop streaming?
Please check if "Global Auto-Relay" is enabled in the console. When this mode is active, streaming cannot be stopped through the API.
How can I view all current streams?
You can view the current stream status through the Stream Management Interface.
Screen sharing appears blurry?
The SDK uses 1080p parameter configuration by default to capture screen sharing. Please refer to the interface: startScreenShare.
