人脸识别

Detects when a face is partially captured or concealed or when there are multiple faces; recognizes 256 facial keypoints.

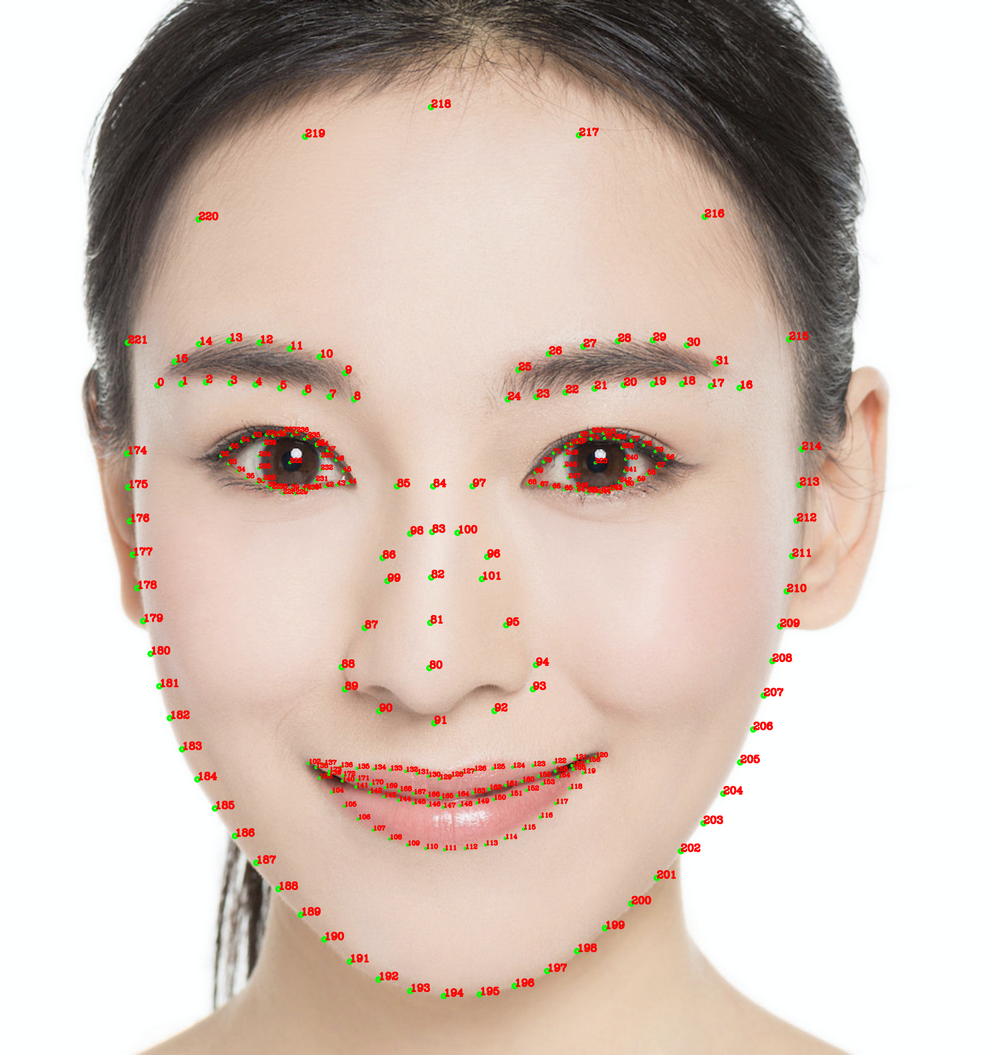

Index Image for 256 Facial Keypoints
﻿
﻿
﻿
Integration guide for Android
For directions on how to integrate the Beauty AR SDK for Android, see the integration guide for Integrating SDK  (Android).
Registering an Xmagic listener
This API is used to configure the callback of facial keypoints and other data.
Version 2.6.0 and earlier versions use the following method.
void setYTDataListener(XmagicApi.XmagicYTDataListener ytDataListener)
﻿
﻿
public interface XmagicYTDataListener {
    void onYTDataUpdate(String data)
}
Version 3.0.0 uses the following method.
void setAIDataListener(XmagicApi.OnAIDataListener aiDataListener)
﻿
public interface OnAIDataListener {
    void onFaceDataUpdated(List<TEFaceData> faceDataList);
    void onHandDataUpdated(List<TEHandData> handDataList);
    void onBodyDataUpdated(List<TEBodyData> bodyDataList);
    void onAIDataUpdated(String data); //This method is a new method added in version 3.0.0, and the data structure is consistent with the XmagicYTDataListener interface used in previous versions.
}
onYTDataUpdate and onAIDataUpdated returns a JSON string structure that contains the information of up to 5 faces:
{
 "face_info":[{
  "trace_id":5,
  "face_256_point":[
    180.0,
    112.2,
    ...
  ],
  "face_256_visible":[
    0.85,
    ...
  ],
  "out_of_screen":true,
  "left_eye_high_vis_ratio:1.0,
  "right_eye_high_vis_ratio":1.0,
  "left_eyebrow_high_vis_ratio":1.0,
  "right_eyebrow_high_vis_ratio":1.0,
  "mouth_high_vis_ratio":1.0
 },
 ...
 ]
}
Fields
Field
Type
Value Range
Description
trace_id
int
[1,INF)
The face ID. If the faces obtained continuously from a video stream have the same face ID, they belong to the same person.
face_256_point
float
[0,screenWidth] or [0,screenHeight]
512 values in total for 256 facial keypoints. (0,0) is the top-left corner of the screen.
face_256_visible
float
[0,1]
Visibility of the 256 facial keypoints.
out_of_screen
bool
true/false
Whether the face is outside of the screen view.
left_eye_high_vis_ratio
float
[0,1]
The percentage of keypoints with high visibility for the left eye.
right_eye_high_vis_ratio
float
[0,1]
The percentage of keypoints with high visibility for the right eye.
left_eyebrow_high_vis_ratio
float
[0,1]
The percentage of keypoints with high visibility for the left eyebrow.
right_eyebrow_high_vis_ratio
float
[0,1]
The percentage of keypoints with high visibility for the right eyebrow.
mouth_high_vis_ratio
float
[0,1]
The percentage of keypoints with high visibility for the mouth.
Parameters
Parameters
Description
XmagicApi.XmagicYTDataListener ytDataListener
Callback function implementation class.
﻿

Field	Type	Value Range	Description
trace_id	int	[1,INF)	The face ID. If the faces obtained continuously from a video stream have the same face ID, they belong to the same person.
face_256_point	float	[0,screenWidth] or [0,screenHeight]	512 values in total for 256 facial keypoints. (0,0) is the top-left corner of the screen.
face_256_visible	float	[0,1]	Visibility of the 256 facial keypoints.
out_of_screen	bool	true/false	Whether the face is outside of the screen view.
left_eye_high_vis_ratio	float	[0,1]	The percentage of keypoints with high visibility for the left eye.
right_eye_high_vis_ratio	float	[0,1]	The percentage of keypoints with high visibility for the right eye.
left_eyebrow_high_vis_ratio	float	[0,1]	The percentage of keypoints with high visibility for the left eyebrow.
right_eyebrow_high_vis_ratio	float	[0,1]	The percentage of keypoints with high visibility for the right eyebrow.
mouth_high_vis_ratio	float	[0,1]	The percentage of keypoints with high visibility for the mouth.

Parameters	Description
XmagicApi.XmagicYTDataListener ytDataListener	Callback function implementation class.
