TRTC SDK 集成 Beauty AR
SDK 集成
1. 本文档说明在 TRTC SDK 项目中集成和使用 TEBeautyKit 库。
2. 参见 TRTC_Adapter_Example。
SDK 使用
步骤一:集成 TEBeautyKit
1. 下载并解压 TRTCAdapter。

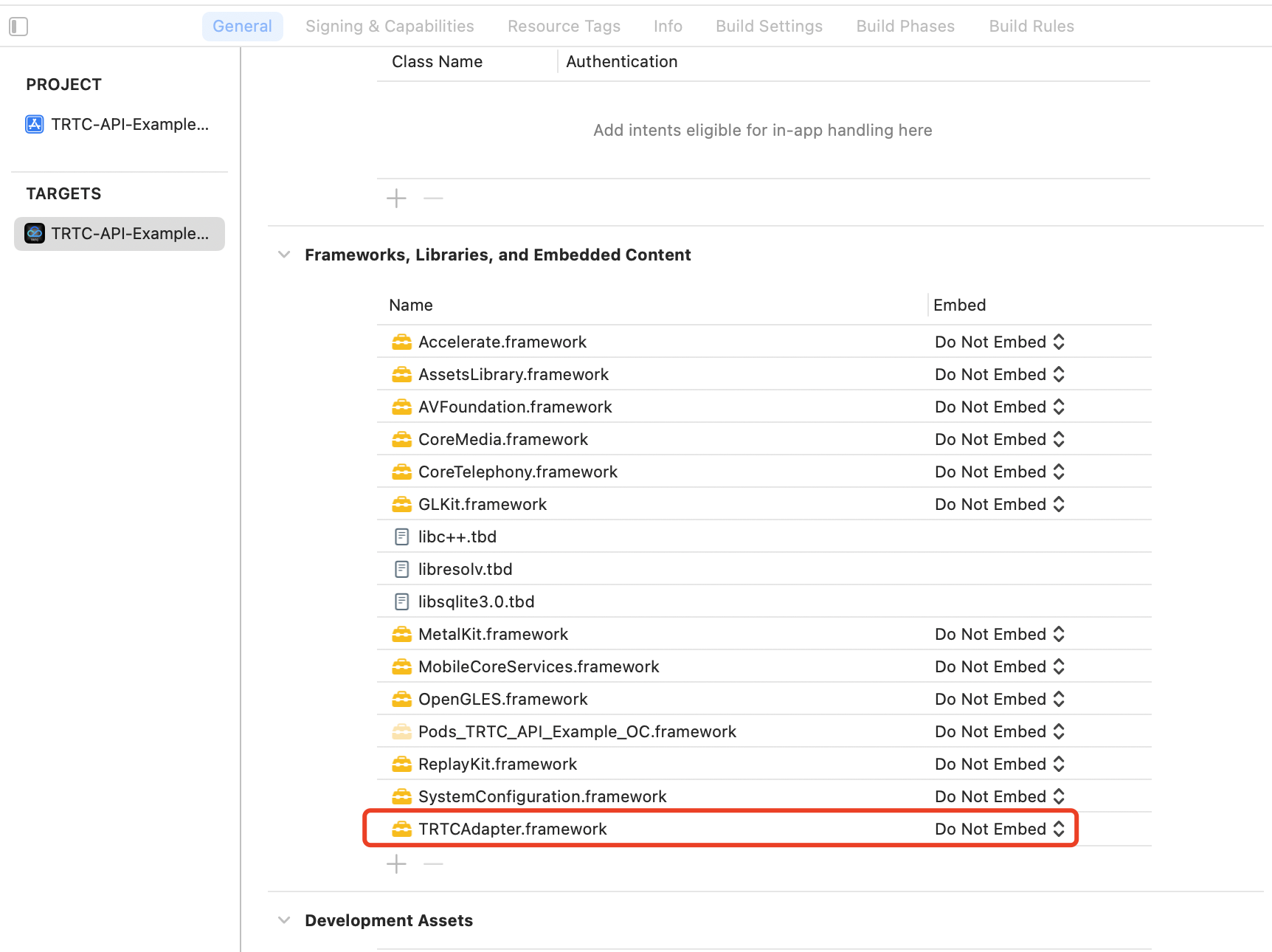

2. 把
TRTCAdapter.framework 添加到工程中。

3. 编辑 podfile 文件,添加下面的代码:
# 将S1-07替换成您购买的套餐pod 'TEBeautyKit/S1-07', :podspec => 'https://mediacloud-76607.gzc.vod.tencent-cloud.com/TencentEffect/iOS/TEBeautyKit/latest/TEBeautyKit.podspec'
4. 执行
pod install。5. 引入面板资源,点击下载资源包(beauty_panel.zip)后,引入主工程。
步骤二:鉴权
[TEBeautyKit setTELicense:@"your license" key:@"your key" completion:^(NSInteger authresult, NSString * _Nullable errorMsg) {NSLog(@"----------result: %zd %@",authresult,errorMsg);}];
步骤三:配置美颜素材路径
如果 json 文件中配置的素材是本地的,需要将美颜素材添加到工程中。
- (void)configPanel {NSBundle *bundle = [NSBundle mainBundle];NSString *beautyJsonPath = [bundle pathForResource:@"beauty" ofType:@"json"]; //美颜NSString *lutJsonPath = [bundle pathForResource:@"lut" ofType:@"json"]; //滤镜NSString *motion2dJsonPath = [bundle pathForResource:@"motion_2d" ofType:@"json"]; //2d贴纸NSMutableArray *resArray = [[NSMutableArray alloc] init];[resArray addObject:@{TEUI_BEAUTY : beautyJsonPath}];[resArray addObject:@{TEUI_LUT : lutJsonPath}];[resArray addObject:@{TEUI_MOTION_2D : motion2dJsonPath}];/// 设置资源[[TEUIConfig shareInstance] setTEPanelViewResources:resArray];}
步骤四:初始化并添加 TEPanelView
- (void)addPanelView {TEPanelView *tePanelView = [[TEPanelView alloc] init];tePanelView.delegate = self;[self.view addSubview:tePanelView];[tePanelView mas_makeConstraints:^(MASConstraintMaker *make) {make.width.bottom.mas_equalTo(self.view);make.left.right.mas_equalTo(self.view);make.height.mas_equalTo(230 + self.view.safeAreaInsets.bottom);}];}
步骤五:Adapter 绑定美颜
/// 创建adapter对象- (TEBeautyTRTCAdapter *)trtcAdapter {if (!_trtcAdapter) {_trtcAdapter = [[TEBeautyTRTCAdapter alloc] init];}return _trtcAdapter;}/// 绑定美颜__weak __typeof(self)weakSelf = self;[self.trtcAdapter bind:self.trtcCloud onCreatedXmaicApi:^(XMagic * _Nullable xmagicApi) {__strong typeof(self) strongSelf = weakSelf;strongSelf.teBeautyKit.xmagicApi = xmagicApi;[strongSelf.teBeautyKit setLogLevel:YT_SDK_ERROR_LEVEL];strongSelf.tePanelView.teBeautyKit = strongSelf.teBeautyKit;[strongSelf.tePanelView setDefaultBeauty];} onDestroyXmaicApi:^{__strong typeof(self) strongSelf = weakSelf;[strongSelf.teBeautyKit onDestroy];strongSelf.teBeautyKit = nil;}];
步骤六:参数变化通知 Adapter
/// 通知adapter前后置摄像头,是否编码镜像[self.trtcAdapter notifyCameraChanged:self.isFrontCamera isEncoderMirror:self.isEncoderMirror];/// 通知adapter屏幕方向改变[self.trtcAdapter setDeviceOrientation:currOrientation];
步骤七:解绑 Adapter,销毁美颜
[self.trtcAdapter unbind];self.trtcAdapter = nil;
