直播列表

LiveListStoreAtomicXCore 中负责管理直播房间列表、创建、加入以及维护房间状态的核心模块。通过LiveListStore,可以为您的应用构建完整的直播生命周期管理。


核心功能

直播列表拉取:获取当前所有公开的直播间列表,支持分页加载。
直播生命周期管理:提供从创建、开播、加入、离开到结束直播的全套流程接口。
实时事件监听:监听直播结束、用户被踢出等关键事件。

核心概念

核心概念
类型
核心职责与描述
LiveInfo
struct
代表一个直播间的所有信息模型。包含了直播ID (liveID)、名称 (liveName)、房主信息 (liveOwner) 以及自定义元数据 (metaData) 等。
LiveListState
struct
代表直播列表模块的当前状态。其核心属性 liveList 是一个 [LiveInfo] 数组,存储了拉取到的直播列表;currentLive 则代表用户当前所在的直播间信息。
LiveListEvent
enum
代表直播房间的全局事件。分为 .onLiveEnded (直播结束) 和 .onKickedOutOfLive (被踢出直播) 两种,用于处理关键的房间状态变更。
LiveListStore
class
这是与直播列表和房间生命周期交互的核心管理类。它是一个全局单例 (shared),负责所有直播房间的创建、加入、信息更新等操作。

实现步骤

步骤1:组件集成

视频直播:请参考 快速接入 集成 AtomicXCore,并完成 主播开播观众观看 的功能实现
语聊房:请参考 快速接入 集成 AtomicXCore,并完成 主播开播观众观看 的功能实现

步骤2:实现观众从直播列表进入直播间

创建一个展示直播列表的页面,该页面使用 UICollectionView 来布局直播间卡片。当用户点击某个卡片时,获取该直播间的 liveId,并跳转到观众观看页面。
import AtomicXCore
import SnapKit
import RTCRoomEngine
import Combine

class LiveListViewController: UIViewController, UICollectionViewDataSource, UICollectionViewDelegate, UICollectionViewDelegateFlowLayout {

private let liveListStore = LiveListStore.shared
private var cancellables = Set<AnyCancellable>()
private var liveList: [LiveInfo] = []
private var collectionView: UICollectionView!

override func viewDidLoad() {
super.viewDidLoad()
setupUI()
bindStore()
fetchLiveList()
}
private func bindStore() {
// 订阅 state,自动接收列表更新
liveListStore.state
.subscribe(StatePublisherSelector(keyPath: \LiveListState.liveList))
.receive(on: DispatchQueue.main)
.sink { [weak self] fetchedList in
self?.liveList = fetchedList
self?.collectionView.reloadData()
}
.store(in: &cancellables)
}

private func fetchLiveList() {
liveListStore.fetchLiveList(cursor: "", count: 20) { result in
if case .failure(let error) = result {
print("直播列表拉取失败: \(error.localizedDescription)")
}
}
}
// 当用户点击列表中的某个Cell时
func collectionView(_ collectionView: UICollectionView, didSelectItemAt indexPath: IndexPath) {
let selectedLiveInfo = liveList[indexPath.item]
// 创建观众观看页面,并将 liveId 传入
let audienceVC = YourAudienceViewController(liveId: selectedLiveInfo.liveID)
audienceVC.modalPresentationStyle = .fullScreen
present(audienceVC, animated: true)
}
// --- UICollectionViewDataSource, Delegate, and UI setup methods ---
private func setupUI() {
let layout = UICollectionViewFlowLayout()
// ... (可以自定义您的布局)
collectionView = UICollectionView(frame: view.bounds, collectionViewLayout: layout)
collectionView.dataSource = self
collectionView.delegate = self
collectionView.register(UICollectionViewCell.self, forCellWithReuseIdentifier: "LiveCell")
view.addSubview(collectionView)
}

func collectionView(_ collectionView: UICollectionView, numberOfItemsInSection section: Int) -> Int {
return liveList.count
}
func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell {
let cell = collectionView.dequeueReusableCell(withReuseIdentifier: "LiveCell", for: indexPath)
cell.backgroundColor = .lightGray // 自定义您的Cell样式
// let liveInfo = liveList[indexPath.item]
// ... (例如: cell.titleLabel.text = liveInfo.liveName)
return cell
}
func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, sizeForItemAt indexPath: IndexPath) -> CGSize {
// 单列、双列布局可通过自定义您的Cell大小来实现
let width = (view.bounds.width - 30) / 2
return CGSize(width: width, height: width * 1.2)
}
}
LiveInfo 参数说明
参数名
类型
描述
liveID
String
直播间的唯一标识符
liveName
String
直播间的标题
coverURL
String
直播间的封面图片地址
liveOwner
房主的个人信息
totalViewerCount
Int
直播间的总观看人数
categoryList
[NSNumber]
直播间的分类标签列表
notice
String
直播间的公告信息
metaData
[String: String]
开发者自定义的元数据,用于实现复杂的业务场景

功能进阶

场景一:实现直播列表的分类展示

在 App 的直播广场页,顶部设有“热门”、“音乐”、“游戏”等分类标签。用户点击不同的标签后,下方的直播列表会动态筛选,只展示对应分类的直播间,从而帮助用户快速发现感兴趣的内容。


实现方式

核心是利用 LiveInfo 模型中的 categoryList 属性。当主播开播设置分类后,fetchLiveList 返回的 LiveInfo 对象中就会包含这些分类信息。您的 App 在获取到完整的直播列表后,只需在客户端根据用户选择的分类,对这个列表进行一次简单的筛选,然后刷新 UI 即可。

代码示例

以下示例展示了如何在 LiveListViewController 中扩展一个 LiveListManager 来处理数据和筛选逻辑。
import AtomicXCore
import Combine

// 1. 创建一个数据管理器来封装数据获取和筛选逻辑
class LiveListManager {
private let liveListStore = LiveListStore.shared
private var cancellables = Set<AnyCancellable>()
private var fullLiveList: [LiveInfo] = []

// 对外暴露最终的直播列表
let filteredLiveListPublisher = CurrentValueSubject<[LiveInfo], Never>([])

init() {
liveListStore.state
.subscribe(StatePublisherSelector(keyPath: \LiveListState.liveList))
.receive(on: DispatchQueue.main)
.sink { [weak self] fetchedList in
self?.fullLiveList = fetchedList
// 默认将完整列表发布出去
self?.filteredLiveListPublisher.send(fetchedList)
}
.store(in: &cancellables)
}

func fetchFirstPage() {
liveListStore.fetchLiveList(cursor: "", count: 20) { _ in }
}

/// 根据分类筛选直播列表
func filterLiveList(by categoryId: NSNumber?) {
guard let categoryId = categoryId else {
// 如果 categoryId 为 nil,则显示完整列表
filteredLiveListPublisher.send(fullLiveList)
return
}

let filteredList = fullLiveList.filter { liveInfo in
liveInfo.categoryList.contains(categoryId)
}
filteredLiveListPublisher.send(filteredList)
}
}

// 2. 在您的 LiveListViewController 中使用 Manager
class LiveListViewController: UIViewController, UICollectionViewDataSource, UICollectionViewDelegate {

private let manager = LiveListManager()
private var cancellables = Set<AnyCancellable>()
private var liveList: [LiveInfo] = []
private var collectionView: UICollectionView!

override func viewDidLoad() {
super.viewDidLoad()
// ... setupUI ...

// 绑定数据
manager.filteredLiveListPublisher
.receive(on: DispatchQueue.main)
.sink { [weak self] filteredList in
self?.liveList = filteredList
self?.collectionView.reloadData()
}
.store(in: &cancellables)

// 首次拉取
manager.fetchFirstPage()
}

// 当用户点击顶部分类标签 (UISegmentedControl) 时
@objc func categorySegmentDidChange(_ sender: UISegmentedControl) {
let selectedCategoryId: NSNumber? = 1 // 假设 "音乐" 分类的ID是 1
manager.filterLiveList(by: selectedCategoryId)
}

// ... (UICollectionView 相关代码)
}

场景二:实现直播列表的滑动播放

用户可以通过上下滑动来切换直播间,当一个新的直播间滑动到屏幕中央时,视频会自动开始播放预览;当它滑出屏幕时,视频则会自动停止,以节省带宽和设备性能。
说明:
滑动播放仅视频直播场景支持,语聊房场景正在规划中。

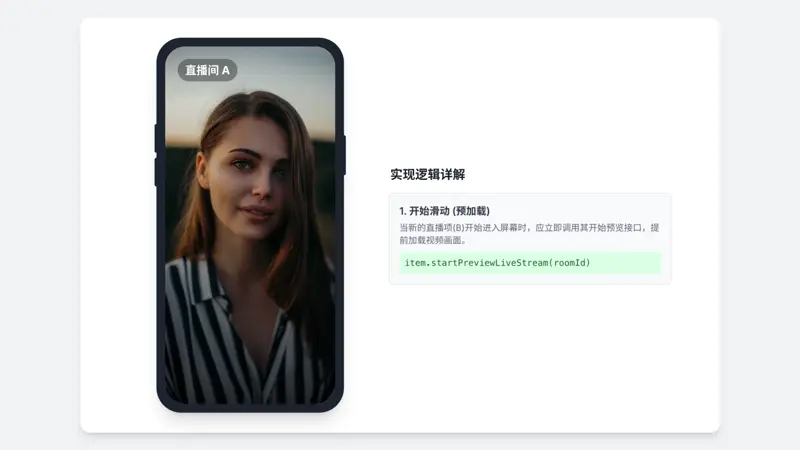

交互流程图



实现方式

LiveCoreView 支持多实例使用,我们为每一个 UICollectionViewCell 都创建一个独立的 LiveCoreView 实例。通过监听 UICollectionView 的滚动代理方法,我们可以精确地控制即将出现和已经离开屏幕的 Cell 中的 LiveCoreView 何时开始和停止拉流,从而实现“即滑即播、即走即停”的效果。

代码示例

我们创建一个自定义的 LiveFeedCell,它内部持有一个 LiveCoreView。然后在 UIViewController 中管理这些 Cell 的播放状态。
import UIKit
import AtomicXCore

// 1. 自定义 UICollectionViewCell,内部包含一个 LiveCoreView
class LiveFeedCell: UICollectionViewCell {
private var liveCoreView: LiveCoreView?

func setLiveInfo(_ liveInfo: LiveInfo) {
// 为新的直播信息创建一个新的 LiveCoreView
liveCoreView = LiveCoreView(viewType: .playView)
guard let liveCoreView = liveCoreView else { return }
contentView.addSubview(liveCoreView)
liveCoreView.frame = contentView.bounds
}

func startPlay(roomId: String) {
liveCoreView?.startPreviewLiveStream(roomId: roomId, isMuteAudio: false)
}

func stopPlay(roomId: String) {
liveCoreView?.stopPreviewLiveStream(roomId: roomId)
}
}

// 2. 在 ViewController 中管理播放逻辑
class LiveFeedViewController: UIViewController, UICollectionViewDataSource, UICollectionViewDelegate {

private var collectionView: UICollectionView!
private var liveList: [LiveInfo] = []
private var currentPlayingIndexPath: IndexPath?

// 当滑动完全停止后,此代理方法会被调用
func scrollViewDidEndDecelerating(_ scrollView: UIScrollView) {
let page = Int(scrollView.contentOffset.y / view.frame.height)
let indexPath = IndexPath(item: page, section: 0)

// 只有当居中的 Cell 变化时才切换播放
if currentPlayingIndexPath != indexPath {
playVideo(at: indexPath)
}
}

// 当 Cell 即将离开屏幕时调用
func collectionView(_ collectionView: UICollectionView, didEndDisplaying cell: UICollectionViewCell, forItemAt indexPath: IndexPath) {
if let liveCell = cell as? LiveFeedCell {
let liveInfo = liveList[indexPath.item]
liveCell.stopPlay(roomId: liveInfo.liveID)
}
}

private func playVideo(at indexPath: IndexPath) {
if let cell = collectionView.cellForItem(at: indexPath) as? LiveFeedCell {
let liveInfo = liveList[indexPath.item]
cell.startPlay(roomId: liveInfo.liveID)
currentPlayingIndexPath = indexPath
}
}

// ... (UICollectionViewDataSource 的其他方法)
func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell {
let cell = collectionView.dequeueReusableCell(withReuseIdentifier: "LiveFeedCell", for: indexPath) as! LiveFeedCell
cell.setLiveInfo(liveList[indexPath.item])
return cell
}
}

API 文档

关于 LiveListStore 及其相关类的所有公开接口、属性和方法的详细信息,请参阅随 AtomicXCore 框架的官方 API 文档。本文档使用到的相关 Store 如下:
Store/Component
功能描述
API 文档
LiveCoreView
直播视频流展示与交互的核心视图组件:负责视频流渲染和视图挂件处理,支持主播直播、观众连麦、主播连线等场景。
LiveListStore
直播间全生命周期管理:创建 / 加入 / 离开 / 销毁房间,查询房间列表,修改直播信息(名称、公告等),监听直播状态(例如被踢出、结束)。

常见问题

语聊房的列表和视频直播的列表数据是同一份吗?

它们的数据是同一份,您不需要分开拉取。LiveListStore 是一个全局单例,它负责统一管理应用中所有“直播”房间的生命周期,无论是视频直播还是语聊房。

直播列表中如何区分语聊房和视频直播

LiveListStore 本身不区分房间的业务类型。您需要在获取列表后,在客户端的应用层(业务逻辑或 UI 层)进行筛选和分类。
我们推荐采用以下两种方式进行区分:
方式一(推荐)使用 seatLayoutTemplateID 区分。这是一个用于定义房间布局的模板 ID,关于目前已支持的模板 ID 和效果,请参阅文档 开始直播 > 运行效果。您要在创建房间时指定 ID,然后在获取列表时根据 ID 范围来识别业务场景。
步骤1创建房间时指定 ID 调用 LiveListStore.shared.createLive 时,您需要根据业务场景为 LiveInfoseatLayoutTemplateID 属性传入指定范围的 ID
语聊房场景:传入 1 - 199 范围内的模板 ID
视频直播场景:传入 200 - 999 范围内的模板 ID
步骤2获取列表时筛选 客户端在 LiveListStore.state.liveList 中收到列表数据后,通过判断这个 ID 值所属的范围判断,从而在进入直播间的时候区分两种业务场景。
重要提示:
创建房间时,如果传入的 seatLayoutTemplateID 范围与您的业务场景(语聊房、视频直播)不匹配,可能会导致麦位布局出现功能异常。
方式二liveID 添加业务前缀。这是一种可选的、纯粹的应用层约定,用于辅助您在客户端快速筛选。
骤1:创建房间时添加前缀 在您生成 liveID 并调用 createLive 时,为不同业务类型的 liveID 赋予不同的前缀。例如:视频直播的 ID 以 “Live_” 开头 (例如:Live_12345),语聊房的 ID 以 “voice_” 开头 (例如:voice_67890)。
步骤2:获取列表时检查前缀 客户端在拉取到列表后,通过检查 liveID 字符串的前缀来进行区分。
