Integration

This document describes how to rapidly integrate the TUICallKit component. You can complete the following key steps within 10 minutes and obtain a complete audio and video call interface.
﻿
Preparations
Environmental Requirements
Android Version Requirements: Android 5.0 (SDK API Level 21) and above.
Gradle Version Requirements: Gradle 4.2.1 and above.
Device Requirements: Mobile devices running Android 5.0 or higher.
Networking Requirements: The device must be able to connect to the public network.
Service Activation

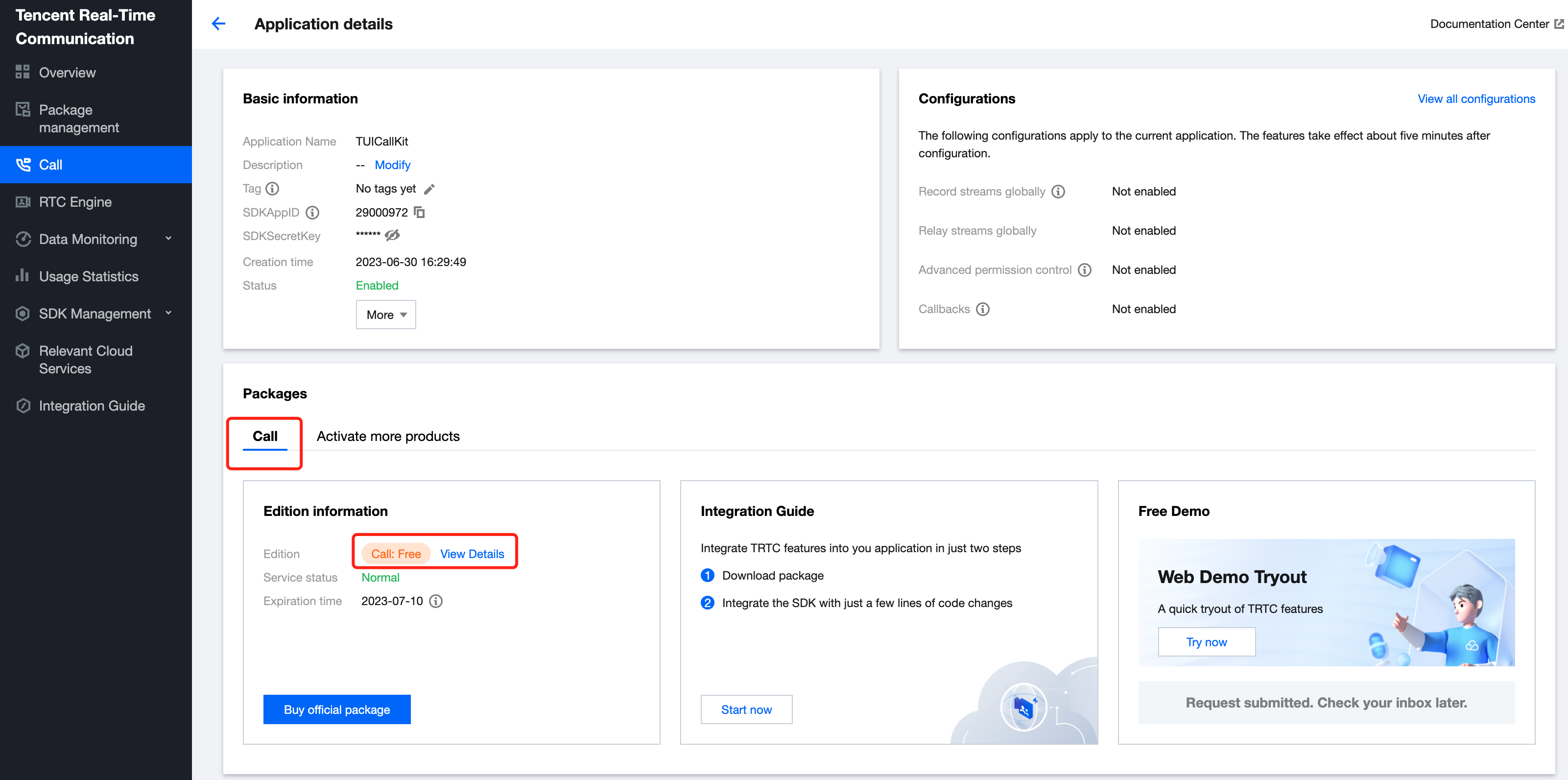

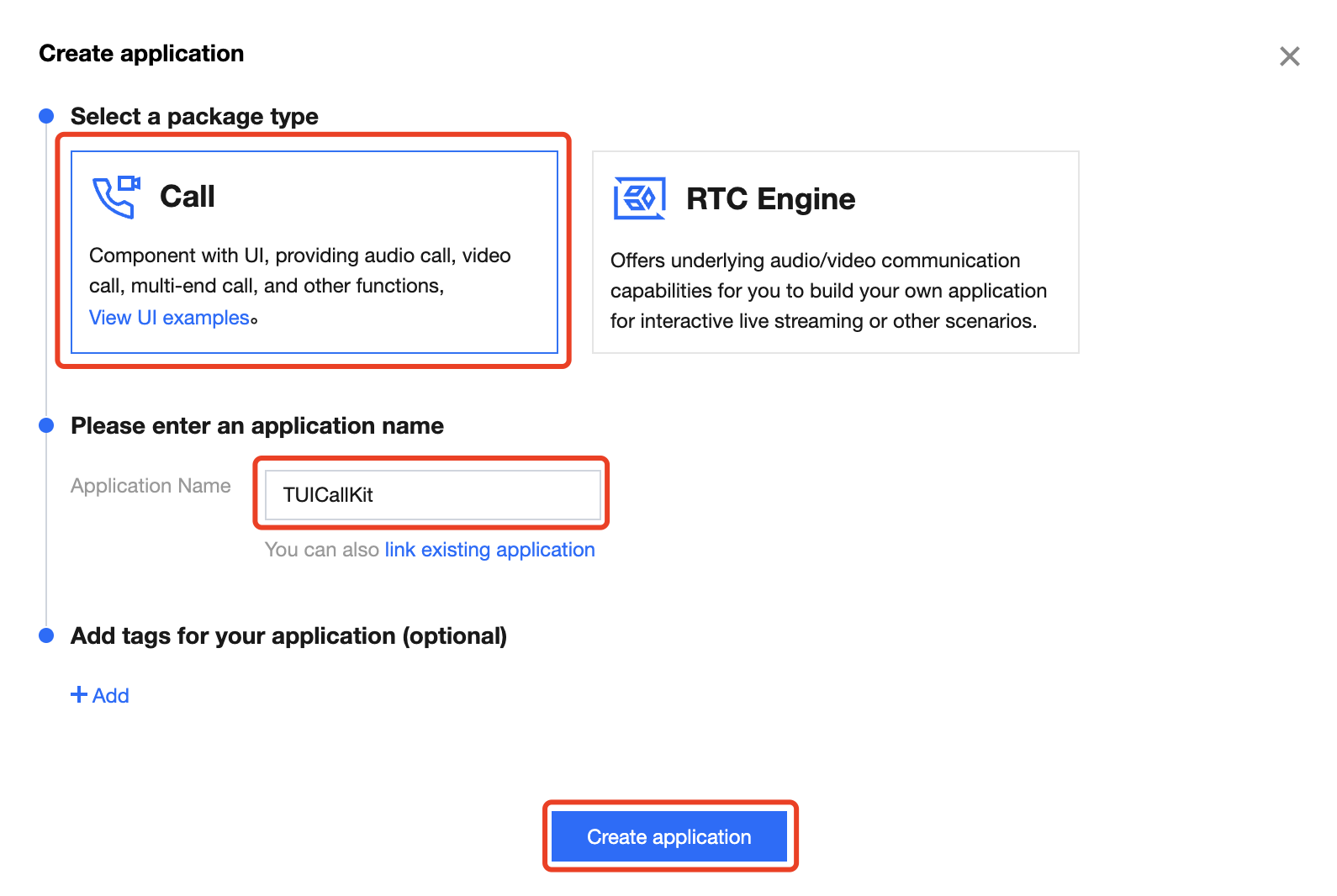

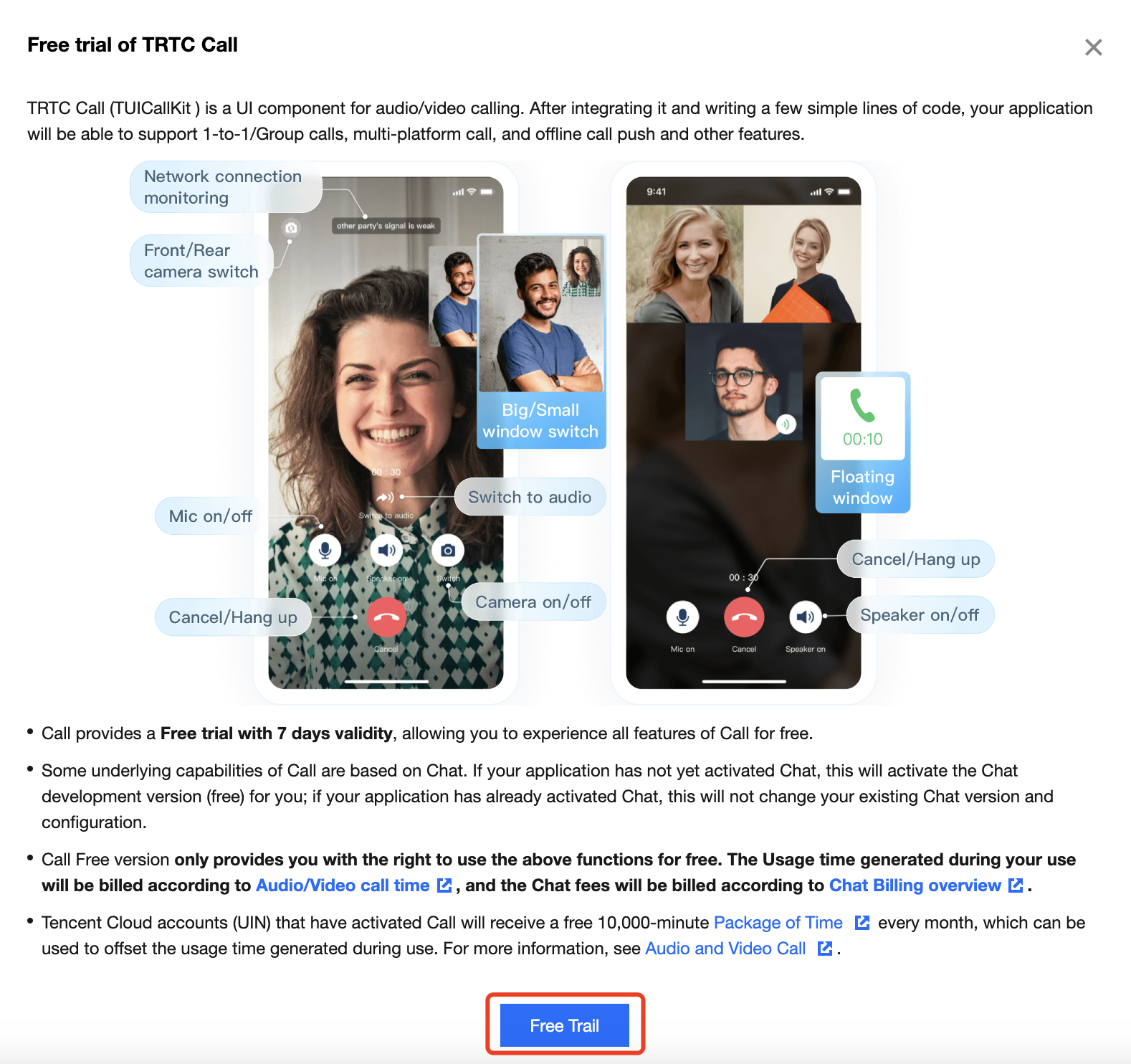

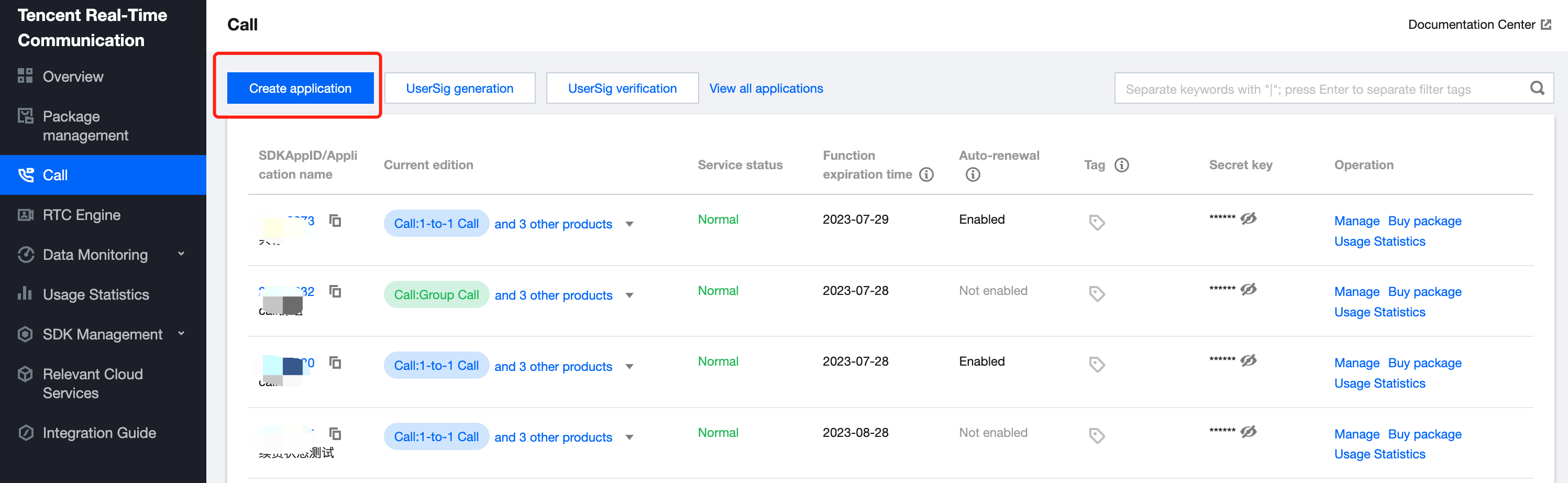

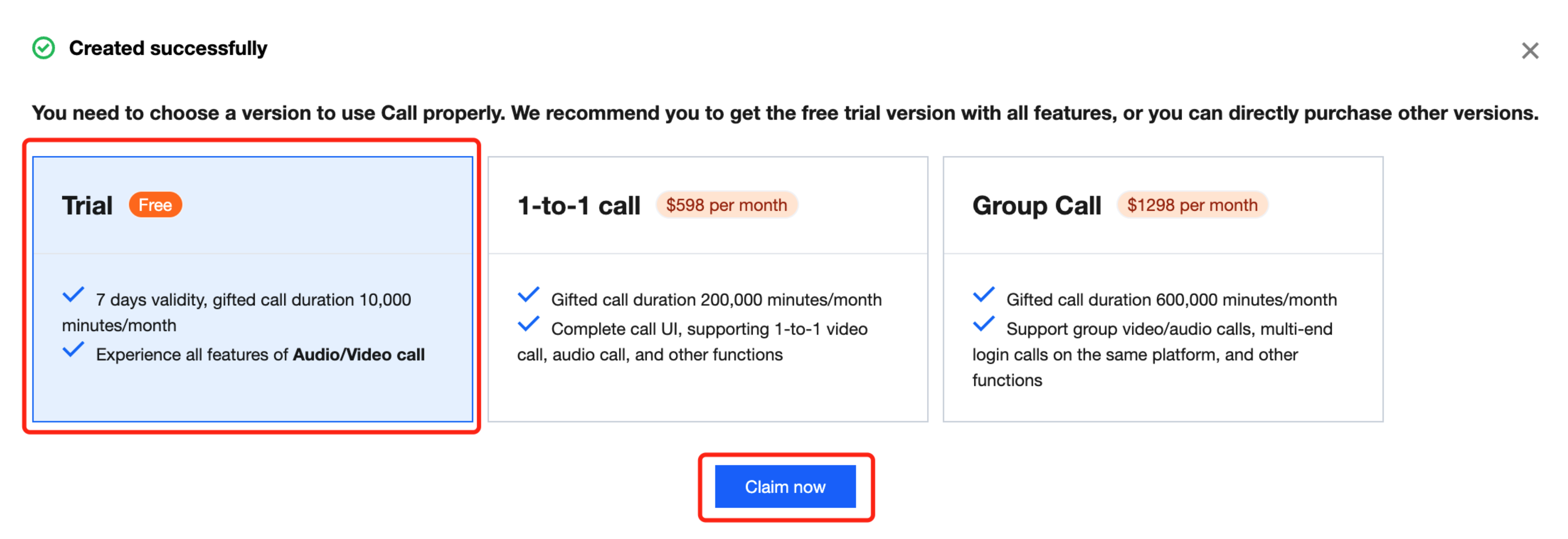

Please refer to the Service Activation documentation to obtain your SDKAppID and SDKSecretKey. These credentials will be required in the subsequent login step.
Implementation
Step 1.Importing Components
Clone or download the code from GitHub. Then, copy the tuicallkit-kt subdirectory from the Android directory into the same-level directory as your project's app folder, as shown in the figure below.
﻿
Step 2.Project Configuration
1. Importing tuicallkit-kt:In the project root directory, locate the settings.gradle.kts (or settings.gradle) file and add the following code to import the tuicallkit-kt component into the project:
setting.gradle.kts
settings.gradle
include(":tuicallkit-kt")
include ':tuicallkit-kt'
2. Locate the build.gradle.kts (or build.gradle) file under the app directory, and add the following code in dependencies to declare the app's dependency on the component.
build.gradle.kts
build.gradle
dependencies {
    api(project(":tuicallkit-kt"))
}
dependencies {
    api project(':tuicallkit-kt')
}
Note:
The TUICallKit project internally depends on TRTC SDK,IM SDK,tuicallengine and public library tuicore by default. Developers do not need to configure them separately. If needed, just modify the version number in tuicallkit-kt/build.gradle file to upgrade.
3. proguard-rules.pro Configuration:Since the SDK internally uses Java reflection, certain classes must be added to the non-obfuscation list (ProGuard exclusion list). Please add the following configuration to the end of the proguard-rules.pro file:
-keep class com.tencent.** { *; }
4. AndroidManifest.xml Configuration:In the AndroidManifest.xml file within the app directory, add tools:replace="android:allowBackup" within the <application> node to overwrite the component's default settings and apply your own configuration.
  // app/src/main/AndroidManifest.xml
   <application
    android:name=".BaseApplication"
    android:allowBackup="false"
    android:icon="@drawable/app_ic_launcher"
    android:label="@string/app_name"
    android:largeHeap="true"
    android:theme="@style/AppTheme"
    tools:replace="android:allowBackup">
Step 3.Login
Add the following code in your project. It enables logging in to the TUI component by calling the relevant APIs in TUICore. This procedure is critical. Only after a successful login can you properly use the features provided by TUICallKit.
login
Android（Kotlin）
Android（Java）
import com.tencent.qcloud.tuicore.TUILogin
import com.tencent.qcloud.tuicore.interfaces.TUICallback
import com.tencent.qcloud.tuikit.tuicallkit.debug.GenerateTestUserSig
﻿
class MainActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
﻿
﻿
        val userId = "denny"     // replace with your UserId
        val sdkAppId = 0         // replace with the SDKAppID obtained from the console
        val secretKey = "****"   // replace with the SecretKey obtained from the console
        val userSig = GenerateTestUserSig.genTestUserSig(userId, sdkAppId, secretKey)
        TUILogin.login(this, sdkAppId, userId, userSig, object : TUICallback() {
            override fun onSuccess() {
            }
            override fun onError(errorCode: Int, errorMessage: String) {
            }
         })
    }
}
import com.tencent.qcloud.tuicore.TUILogin;
import com.tencent.qcloud.tuicore.interfaces.TUICallback;
import com.tencent.qcloud.tuikit.tuicallkit.debug.GenerateTestUserSig;
﻿
public class MainActivity extends AppCompatActivity {
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        String userId = "denny";     // replace with your UserId
        int sdkAppId = 0;            // replace with the SDKAppID obtained in step 1 on the console
        String secretKey = "****";   // replace with the SecretKey obtained in step 1 on the console
        String userSig = GenerateTestUserSig.genTestUserSig(userId, sdkAppId, secretKey);
        TUILogin.login(this, sdkAppId, userId, userSig, new TUICallback() {
            @Override
            public void onSuccess() {
            }

            @Override
            public void onError(int errorCode, String errorMessage) {
            }
        });
    }
}
﻿
Parameter
Type
Description
userId
String
Only allowing a combination of uppercase and lowercase letters (a-z A-Z), numbers (0-9), hyphens, and underscores.
sdkAppId
int
The unique identifier SDKAppID of the audio and video application created in the Tencent Real-Time Communication (TRTC) Console.
secretKey
String
The SDKSecretKey of the audio/video application created in the Tencent Real-Time Communication (TRTC) Console.
userSig
String

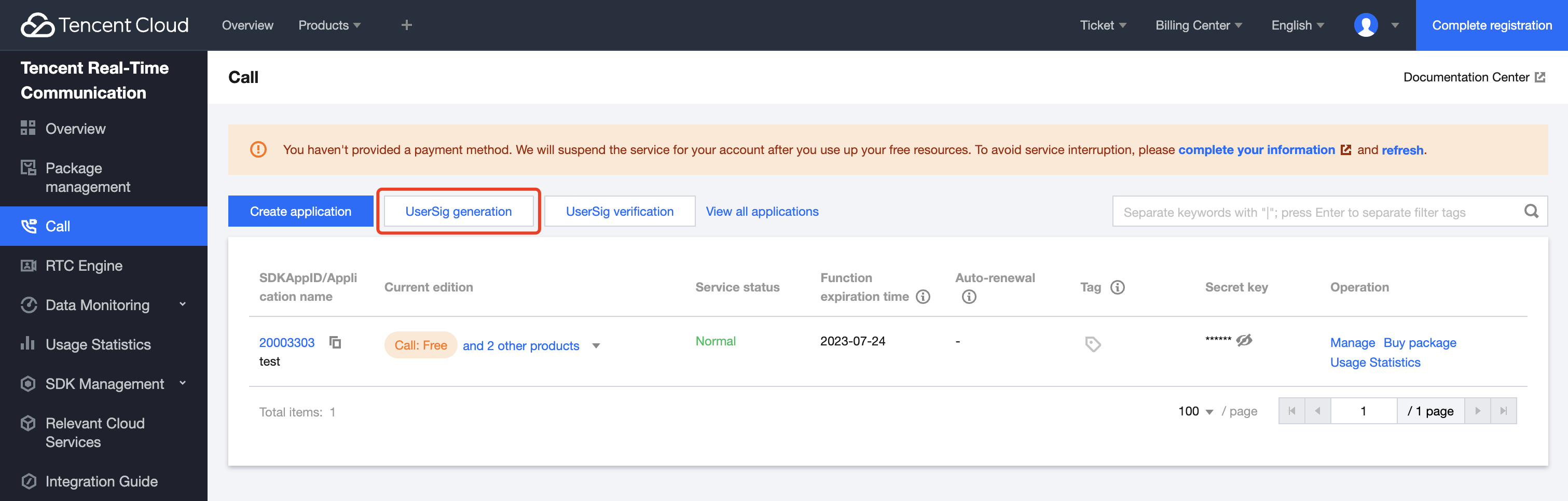

A security protection signature used to authenticate user login, confirm whether the user is genuine, and prevent malicious attackers from misappropriating your cloud service usage rights.
Note：
Development environment: If you are in the local development and debugging stage, you can adopt the local GenerateTestUserSig.genTestSig function to generate userSig. In this method, the SDKSecretKey is very easy to decompile and reverse engineer. Once your key is leaked, attackers can steal your Tencent Cloud traffic.
Production environment: If your project is ready to launch, use server-side generation of UserSig.
Step 4.Set Nickname and Avatar [Optional]
After a successful login, you can call the setSelfInfo function to set your nickname and avatar. The set nickname and avatar will be displayed on the caller/callee interface.
setSelfInfo
Android（Kotlin）
Android（Java）
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit
﻿
val nickname = "jack"
val avatar = "https:/****/user_avatar.png"
TUICallKit.createInstance(context).setSelfInfo(nickname, avatar, null)
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit;
﻿
String nickname = "jack";
String avatar = "https:/****/user_avatar.png";
TUICallKit.createInstance(context).setSelfInfo(nickname, avatar, null);
Parameter
Type
Description
nickname
String
Target user's nickname
avatar
String
Target user's avatar
Step 5.Initiating a Call
The caller initiates a call by invoking the calls function and specifying the media type (voice or video) and the callee's User ID list (userIdList). The calls interface supports both one-to-one and group calls. A one-to-one call is initiated when the userIDList contains only a single User ID; a group call is initiated when it contains multiple User IDs.
calls
Kotlin
Java
import com.tencent.cloud.tuikit.engine.call.TUICallDefine
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit
﻿
val userIdList = mutableListOf<String>()
userIdList.add("mike")
val mediaType = TUICallDefine.MediaType.Audio
val params = TUICallDefine.CallParams()
TUICallKit.createInstance(context).calls(userIdList, mediaType, params, null)
import com.tencent.qcloud.tuikit.tuicallengine.TUICallDefine;
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit;
﻿
List<String> userIdList = new ArrayList<>();
userIdList.add("mike");
TUICallDefine.MediaType mediaType = TUICallDefine.MediaType.Audio;
TUICallDefine.CallParams params = new TUICallDefine.CallParams();
TUICallKit.createInstance(context).calls(userIdList, mediaType, params, null);
Parameter
Type
Description
userIdList
List<String>
Target user ID list
mediaType
﻿TUICallDefine.MediaType﻿
Media type of the call, such as video call, voice call
params
﻿TUICallDefine.CallParams﻿
Call extension parameters, such as room number, call invitation timeout, offline push custom content
Step 6.Answering a Call
Once the callee successfully logs in, the caller can initiate a call, and the callee will receive the call invitation, accompanied by a ringtone and vibration.
More Features
Enabling Floating Window
You can enable/disable the floating window feature by calling enableFloatWindow. This feature should be enabled when initializing the TUICallKit component, with the default status being Off (false).
﻿
enableFloatWindow
Kotlin
Java
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit
﻿
TUICallKit.createInstance(this).enableFloatWindow(true)
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit;
﻿
TUICallKit.createInstance(this).enableFloatWindow(true);
Details: Default false, the floating window button in the top-left corner of the call interface is hidden. Set to true to display.
Enabling Banner
You can enable or disable the incoming call banner display by calling enableIncomingBanner. By default, this feature is disabled (false). When the callee receives an inbound call, the full-screen call waiting interface is shown first. When the banner is enabled, a notification banner will display initially, switching to the full-screen view as required. Note that displaying the banner requires floating window permission. The exact display behavior depends on permission settings and whether the app is running in the foreground or background. For details, refer to the incoming call display policy for the callee.
﻿
enbaleIncomingBanner
Android（Kotlin）
Android（Java）
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit
﻿
TUICallKit.createInstance(context).enableIncomingBanner(true)
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit;
﻿
TUICallKit.createInstance(context).enableIncomingBanner(true);
Details: Default false. The callee side pops up the full-screen call waiting interface by default when receiving an invitation. When enabled, a banner is displayed first, then the full-screen call interface is pulled up as needed.
Multi-Person Calling
When the caller uses the calls method to initiate a call, if the list of called users exceeds one person, it is automatically recognized as a multi-person call. Other members can then join this multi-person call using the join method.
Initiating a Multi-person Call: When the calls method is used to initiate a call, if the callee User ID list (userIdList) contains more than one user, it will be automatically deemed a multi-person call.
calls
Android（Kotlin）
Android（Java）
import com.tencent.cloud.tuikit.engine.call.TUICallDefine
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit
﻿
val userIdList = mutableListOf<String>()
userIdList.add("mike")
userIdList.add("tate")
val mediaType = TUICallDefine.MediaType.Audio
val params = TUICallDefine.CallParams()
TUICallKit.createInstance(context).calls(userIdList, mediaType, params, null)
import com.tencent.qcloud.tuikit.tuicallengine.TUICallDefine;
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit;
﻿
List<String> userIdList = new ArrayList<>();
userIdList.add("mike");
userIdList.add("tate");
TUICallDefine.MediaType mediaType = TUICallDefine.MediaType.Audio;
TUICallKit.createInstance(this).calls(userIdList, mediaType, null, null);
Parameter
Type
Description
userIdList
List<String>
Target user ID list
mediaType
﻿TUICallDefine.MediaType﻿
Media type of the call, such as video call, voice call
params
﻿TUICallDefine.CallParams﻿
Call extension parameters, such as room number, call invitation timeout, offline push custom content
Joining a Multi-person Call: You can use the join method to enter the specified multi-person call.
join
Android（Kotlin）
Android（Java）
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit
﻿
val callId = "123456"
TUICallKit.createInstance(this).join(callId, null)
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit;
﻿
String callId = "123456";
TUICallKit.createInstance(this).join(callId, null);
Parameter
Type
Description
callId
String
The unique ID for this call.
Language Settings
Supported Languages: We currently support Simplified Chinese, Traditional Chinese, English, Japanese, and Arabic.
Switching Languages: By default, the language of TUICallKit is consistent with the mobile operating system's language setting. To switch the language, you can use the TUIThemeManager.getInstance().changeLanguage method.
changeLanguage
Android（Kotlin）
Android（Java）
import com.tencent.qcloud.tuicore.TUIThemeManager;
﻿
public class MainActivity extends BaseActivity {
    @Override
  public void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState)

      val language = TUIThemeManager.LANGUAGE_ZH_CN
      TUIThemeManager.getInstance().changeLanguage(applicationContext, language)
    }
}
import com.tencent.qcloud.tuicore.TUIThemeManager;
﻿
public class MainActivity extends BaseActivity {
    @Override
  public void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      String language = TUIThemeManager.LANGUAGE_EN;
      TUIThemeManager.getInstance().changeLanguage(getApplicationContext(), language);
    }
}
Parameter
Type
Description
language
String
TUIThemeManager.LANGUAGE_EN: English.
TUIThemeManager.LANGUAGE_AR: Arabic.
TUIThemeManager.LANGUAGE_ZH_HK: Traditional Chinese.
TUIThemeManager.LANGUAGE_ZH_CN: Simplified Chinese.
Note：
If you need to set up other languages, please contact us at info_rtc@tencent.com for assistance.
Ringtone Setting
You can set the default ringtone, incoming call silent mode, and Offline Push Ringtone in the following ways:
Setting Default Ringtone (Method 1): If you include TUICallKit component via source code, you can replace the resource file (ringtone when initiating a call, ringtone when receiving a call) to set a custom default ringtone.
Setting Default Ringtone (Method 2): Use the setCallingBell interface to set the incoming call ringtone received by the callee.
setCallingBell
Android（Kotlin）
Android（Java）
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit
﻿
val filePath = "***/callingBell.mp3"
TUICallKit.createInstance(context).setCallingBell(filePath)
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit;
﻿
String filePath = "***/callingBell.mp3";
TUICallKit.createInstance(context).setCallingBell(filePath);
Details:The local file path of the ringtone. Only local file paths can be imported here. Ensure the file directory is accessible to the app. The ringtone setting is bound to the device. Replacing the user will not affect the ringtone. To restore the default ringtone, pass an empty string ("") as the filePath.
Parameter
Type
Description
filePath
String
ringtone file path
Incoming call silent mode: You can set mute mode through enableMuteMode.
enableMuteMode
Android（Kotlin）
Android（Java）
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit
﻿
TUICallKit.createInstance(context).enableMuteMode(true)
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit;
﻿
TUICallKit.createInstance(context).enableMuteMode(true);
Details: When set to true, incoming call requests will not trigger ringtone playback (silent mode).
Custom offline push ringtone: Please refer to: FCM Offline Push customizes incoming call ringtone.
Customizing Your UI
Replacing Icon Button
You can directly replace the icons under the res\drawable-xxhdpi folder to ensure the icon color and style remain consistent throughout the entire App. The following list shows basic feature buttons. You can replace the corresponding icons to fit your own business scenario.
Commonly Used Icon File Name List
Icon
File name
Description
﻿
﻿
﻿
Answer incoming call icon
﻿
Hang Up Call icon
﻿
Turn off the mic icon
﻿
Turn off the speaker icon
﻿
Camera Off icon
﻿
Invite user icon during call
Hidden Button
Call the disableControlButton API to hide specific buttons on the call interface. For example, to hide the camera button:
disableControlButton
Android（Kotlin）
Android（Java）
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit
import com.tencent.qcloud.tuikit.tuicallkit.common.data.Constants
﻿
TUICallKit.createInstance(context).disableControlButton(Constants.ControlButton.Camera)
import com.tencent.qcloud.tuikit.tuicallkit.TUICallKit;
import com.tencent.qcloud.tuikit.tuicallkit.common.data.Constants;
﻿
TUICallKit.createInstance(context).disableControlButton(Constants.ControlButton.Camera);
Parameter
Type
Description
disableButton
ControlButton
Button to hide.
Note：
Currently supports hiding the following buttons:
Camera, Microphone, Audio Device, Switch Camera, Invite User
v3.2.+ Version support.
FAQs
If you encounter any issues during integration and use, please refer to Frequently Asked Questions.
Contact Us
If you have any suggestions or feedback, please contact info_rtc@tencent.com.
﻿
Parameter	Type	Description
userId	String	Only allowing a combination of uppercase and lowercase letters (a-z A-Z), numbers (0-9), hyphens, and underscores.
sdkAppId	int	The unique identifier SDKAppID of the audio and video application created in the Tencent Real-Time Communication (TRTC) Console.
secretKey	String	The SDKSecretKey of the audio/video application created in the Tencent Real-Time Communication (TRTC) Console.
userSig	String	A security protection signature used to authenticate user login, confirm whether the user is genuine, and prevent malicious attackers from misappropriating your cloud service usage rights.
Icon	File name	Description
	tuicallkit_ic_dialing.png	Answer incoming call icon
	tuicallkit_ic_hangup.png	Hang Up Call icon
	tuicallkit_ic_mic_unmute.png	Turn off the mic icon
	tuicallkit_ic_handsfree_disable.png	Turn off the speaker icon
	tuicallkit_ic_camera_disable.png	Camera Off icon
	tuicallkit_ic_add_user_black.png	Invite user icon during call
