Send Red Packet

Overview

This document provides best practices for implementing the Red Packet feature in Tencent Cloud Chat (IM). The Red Packet feature supports two primary scenarios:
One-on-One Red Packet: Send a red packet to a single user within a C2C Chat.
Group Red Packet: Send a red packet in a group chat, allowing multiple members to claim a share of the packet.
The solution leverages Chat Custom Messages, Message Modification, and Message Extension Data, and integrates with an external Payment System and Red Packet System to support the end-to-end workflow: sending, claiming, status synchronization, and notifications.

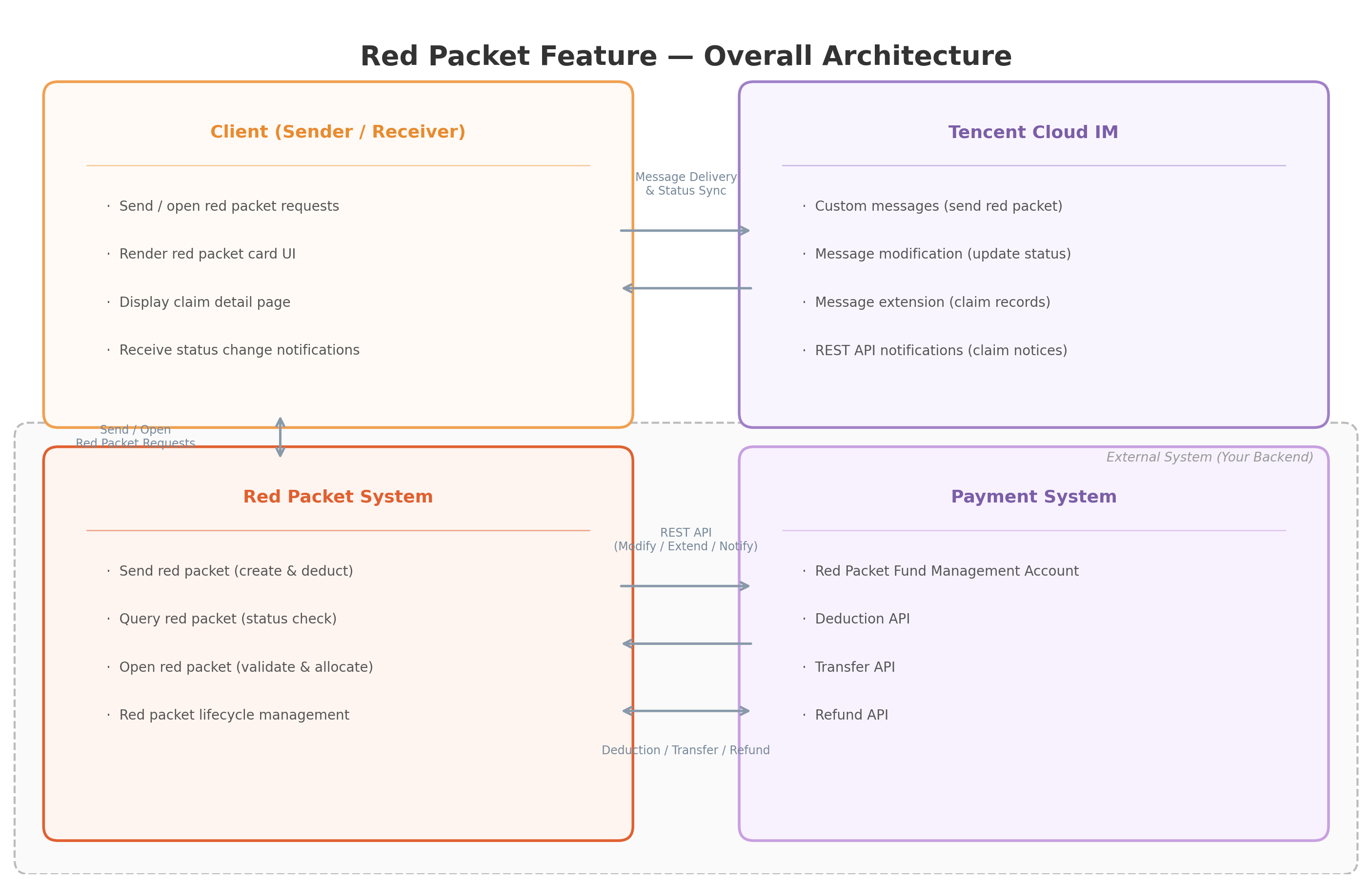

Overall Architecture

The system architecture includes four main components:



Component Responsibilities:
Component
Responsibility
Client (Sender/Receiver)
Initiates send/claim requests for red packets; displays red packet card UI.
Tencent Cloud Chat
Delivers messages, updates status, stores claim records, pushes claim notifications.
Red Packet System
Manages red packet lifecycle: creation, validation, opening, amount calculation.
Payment System
Handles funds: deduction, transfer, and refund operations.

Core Concepts and Data Structures

1. Custom Message Fields

Red packets are implemented as Chat Custom Messages. The payload includes the following fields:
Field
Type
Description
BusinessID
String
Message type identifier. Always set to "red_packet" for red packet messages.
packet_id
String
Unique identifier generated by the red packet system after a successful deduction. Written into the custom message payload via REST API to bind the Chat message to the red packet.
money_amount
Number
Red packet amount (used for one-on-one red packets).
best_wishes
String
Greeting message, for example: "Wishing you prosperity and good luck."
cover
String
URL for the red packet cover image.
status
String
Red packet status:
"Unopened" (not claimed)
"Opened"(claimed / partially claimed)
"None left" (fully claimed)
quantity
Number
(Group red packet only) Number of red packets available.
total
Number
(Group red packet only) Total amount across all red packets.
random_amount
Boolean
(Group red packet only) Indicates whether the red packet uses random amounts ("Luckiest Draw" mode).

One-on-One Red Packet Payload Example

{
  "BusinessID": "red_packet",
  "money_amount": 1.00,
  "best_wishes": "Happy New Year！",
  "cover": "https://example.com/cover.png",
  "status": "Unopened",
  "packet_id": "rp_20260301_abc123"
}

Group Red Packet Payload Example

{
  "BusinessID": "red_packet",
  "total": 2.00,
  "quantity": 3,
  "random_amount": true,
  "best_wishes": "Happy New Year！",
  "cover": "https://example.com/cover.png",
  "status": "Unopened",
  "packet_id": "rp_20260301_xyz789"
}

2. Message Extension Data (Claim Records)

Chat's Message Extension Data is used to store claim records for red packets:
Key
Value
Description
{userID}
{amount},{timestamp}
Each claim record is stored as a key-value pair.

Example

{
  "user_daniel": "1.40,1709312400",
  "user_anson": "0.60,1709312580"
}
The client reads message extension data to display the claim list on the red packet details page, including claimant, amount, and time.

3. Message Modification and Message Extension

The red packet workflow relies on two core Chat features: Message Modification and Message Extension. Together, they enable real-time synchronization of red packet status and distributed storage of claim records.

Message Modification

Message Modification allows the server to update the message content (MsgBody) after it has been sent. In the red packet scenario, this is used to update the status field on the red packet card (e.g., transitioning from "Unopened" to "Opened" or "None left"), ensuring all clients see the latest status.
C2C Message Modification: Use Modify C2C Message REST API, locate messages by From_Account + To_Account + MsgKey.
Group Message Modification: Use Modify Group Message REST API, locate messages by GroupId + MsgSeq.

Message Extension

Message Extension lets you attach key-value data to sent messages without altering the original content. In the red packet scenario, each user's claim record is stored as key = userID, value = amount,timestamp. Extensions are synchronized to all clients in real time.
C2C Message Extension: Use Set C2C Message Extension REST API, locate messages by From_Account + To_Account + MsgKey.
Group Message Extension: Use Set Group Message Extension REST API, locate messages by GroupId + MsgSeq.
To enable message extension data, set SupportMessageExtension to 1 when sending the message.
Capability
Use Case (Red Packet Scenario)
C2C Locating Parameters
Group Locating Parameters
Message Modification
Update red packet status (Unopened → Opened → None left)
From_Account + To_Account + MsgKey
GroupId + MsgSeq
Message Extension
Store claim records (key=userID, value=amount,timestamp)
From_Account + To_Account + MsgKey
GroupId + MsgSeq
Why use the REST API instead of a client API?
1. Avoid "paid but not sent": Sending a red packet includes a payment step. Your client should not deduct funds and then try to send the Chat message on its own.
If the client sends the message, delivery depends on the client's network/app state. You can end up with funds deducted but no message delivered.
If the server sends via REST API, you can keep the workflow consistent and recoverable: deduct funds → create packet_id → send message → persist the returned MsgKey / MsgSeq. If sending fails, you can retry (idempotently) or refund/rollback according to your business rules.
2. Race-free status updates: Claiming is highly concurrent. If multiple clients modify the same message, ordering is not guaranteed. For example, one request may set "None left" first and a later request may overwrite it back to "Opened". Server-side serialization ensures strict, irreversible state transitions ("Unopened" → "Opened" → "None left").
3. Single source of truth: The message status field is for UI display only and should be treated as untrusted. The red packet system is the source of truth for claimability, remaining amount, expiration, etc. When a user taps a red packet, the client should query the red packet system using packet_id and render based on the latest response. The message status is a best-effort snapshot.

One-on-One Red Packet

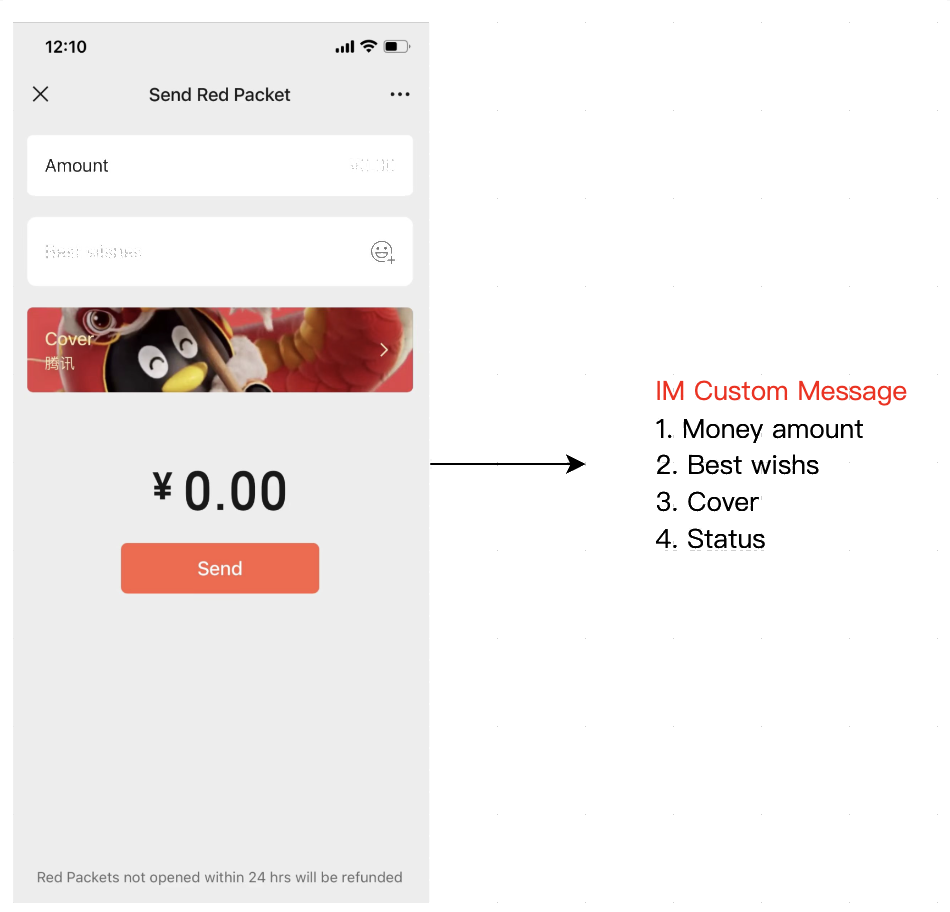

1. Sending a Red Packet

The sender taps the red packet entry in chat, enters the amount and greeting message, and optionally selects a cover image. These fields map directly to the custom message payload.




Implementation Steps

1. Client collects red packet details: amount, greeting message, and optional cover image.
2. Red Packet System calls the Payment System Deduction API to deduct funds from the sender and transfer them to the Packet Fund Management Account.
3. After the deduction succeeds, the Red Packet System generates a unique packet_id.
4. The Red Packet System server sends the red packet as a Custom Message to the receiver, using Send C2C Message REST API, with From_Account set to the sender user ID. This guarantees the message is sent only after funds are deducted.
Example request:
// POST https://console.tim.qq.com/v4/openim/sendmsg
{
  "SyncOtherMachine": 1,
  "From_Account": "sender_userid",
  "To_Account": "receiver_userid",
  "MsgRandom": 1287657,
  "MsgBody": [
    {
      "MsgType": "TIMCustomElem",
      "MsgContent": {
        "Data": "{\"BusinessID\":\"red_packet\",\"money_amount\":1.00,\"best_wishes\":\"Happy New Year！\",\"cover\":\"https://example.com/cover.png\",\"status\":\"Unopened\",\"packet_id\":\"rp_20260301_abc123\"}"
      }
    }
  ],
  "SupportMessageExtension": 1
}

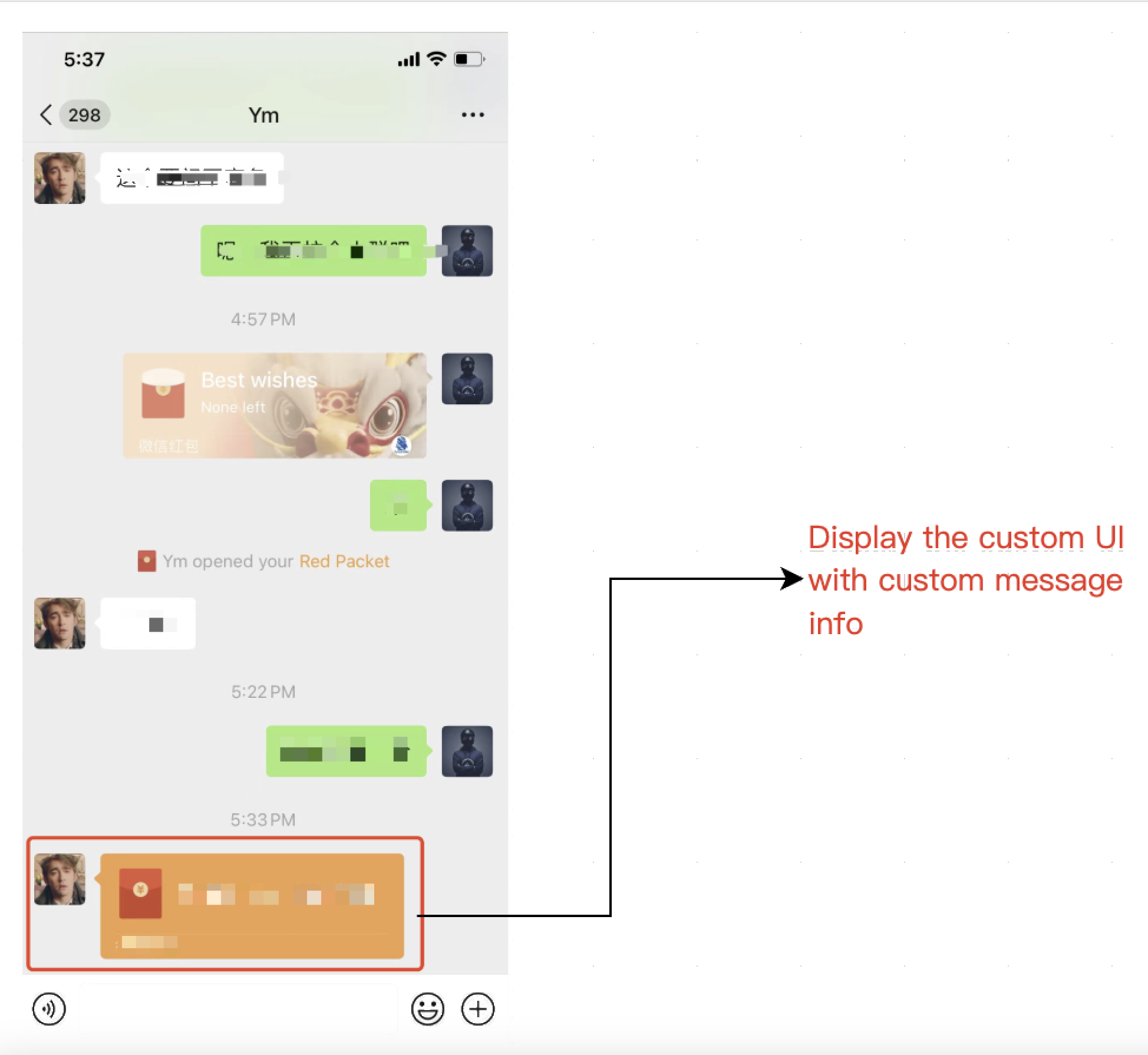

2. Red Packet Card Display in Chat

The red packet appears as a custom card in the chat list. The receiver can tap the card to claim the red packet. After claiming, a notification appears in the chat.

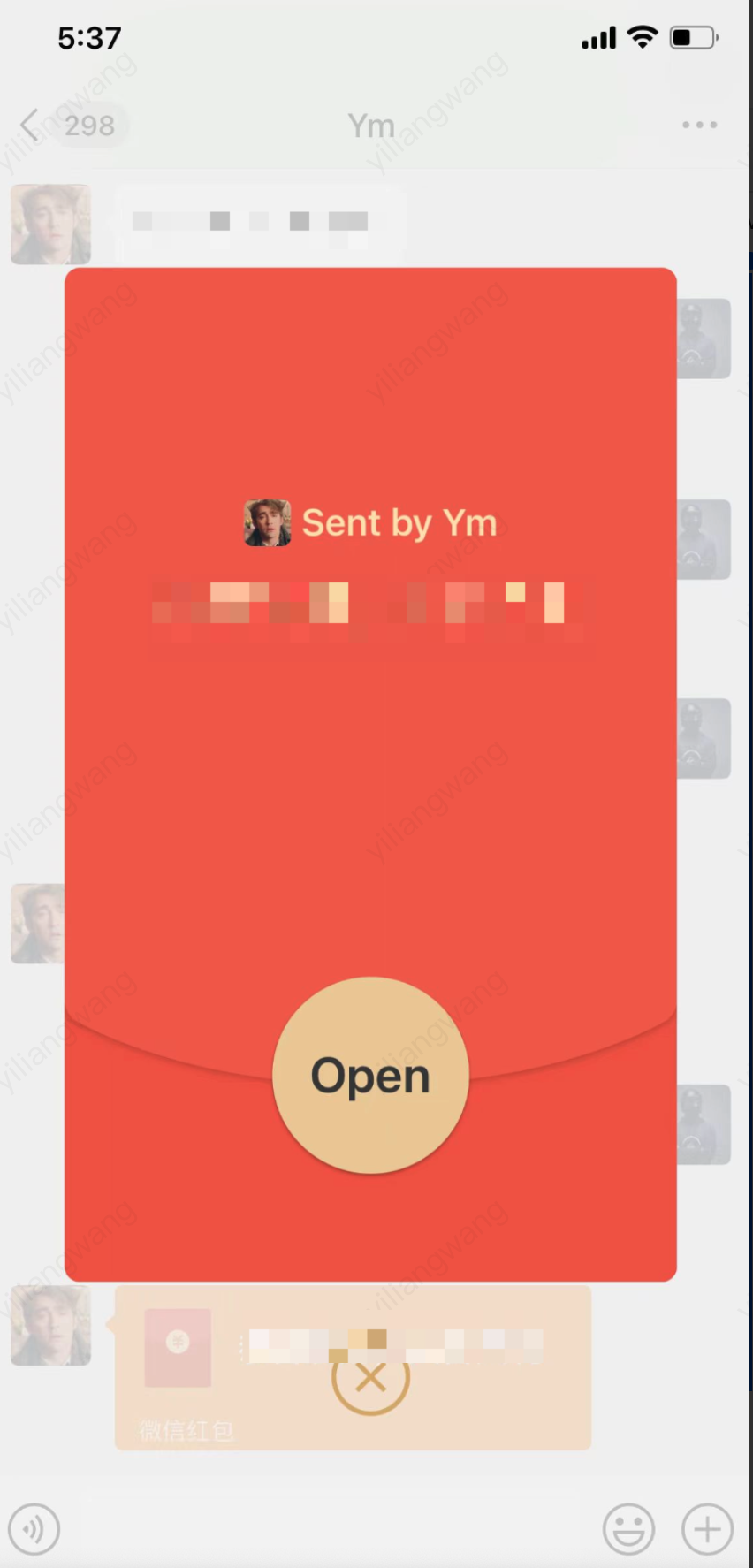

3. Opening a Red Packet

The receiver taps the red packet card to open a details screen showing sender information, the greeting message, and an Open button.




Implementation Steps

1. Receiver taps the red packet card and then taps Open.
2. Red Packet System validates the red packet status (already claimed, expired, etc.).
3. If valid, the Red Packet System calls the Payment System Transfer API to transfer the amount from the Packet Fund Management Account to the receiver.
4.
After a successful transfer, the Red Packet System server performs these actions (all via REST API for security):
Save claim record: The server writes the claim via Set Message Extension REST API, key = userID, value = amount,timestamp.
Update message status: The server updates status from "Unopened" to "Opened" via Message Modification REST API.
Notify sender: The server sends a notification message via Send C2C Message REST API, e.g., "XX claimed your red packet".

Updating Red Packet Message Status via REST API

The Red Packet System server updates the red packet status using Message Modification REST API:
{
  "From_Account": "sender_userid",
  "To_Account": "receiver_userid",
  "MsgKey": "msg_key_from_send_response",
  "MsgBody": [
    {
      "MsgType": "TIMCustomElem",
      "MsgContent": {
        "Data": "{\"BusinessID\":\"red_packet\",\"money_amount\":1.00,\"best_wishes\":\"Happy New Year！\",\"cover\":\"https://example.com/cover.png\",\"status\":\"Opened\",\"packet_id\":\"rp_20260301_abc123\"}"
      }
    }
  ]
}

Saving Claim Record via REST API

The Red Packet System server saves the claim record using Set Message Extension REST API:
{
  "From_Account": "sender_userid",
  "To_Account": "receiver_userid",
  "MsgKey": "msg_key_from_send_response",
  "OperateType": 1,
  "ExtensionList": [
    {
      "Key": "user_anson",
      "Value": "0.60,1709312580"
    }
  ]
}

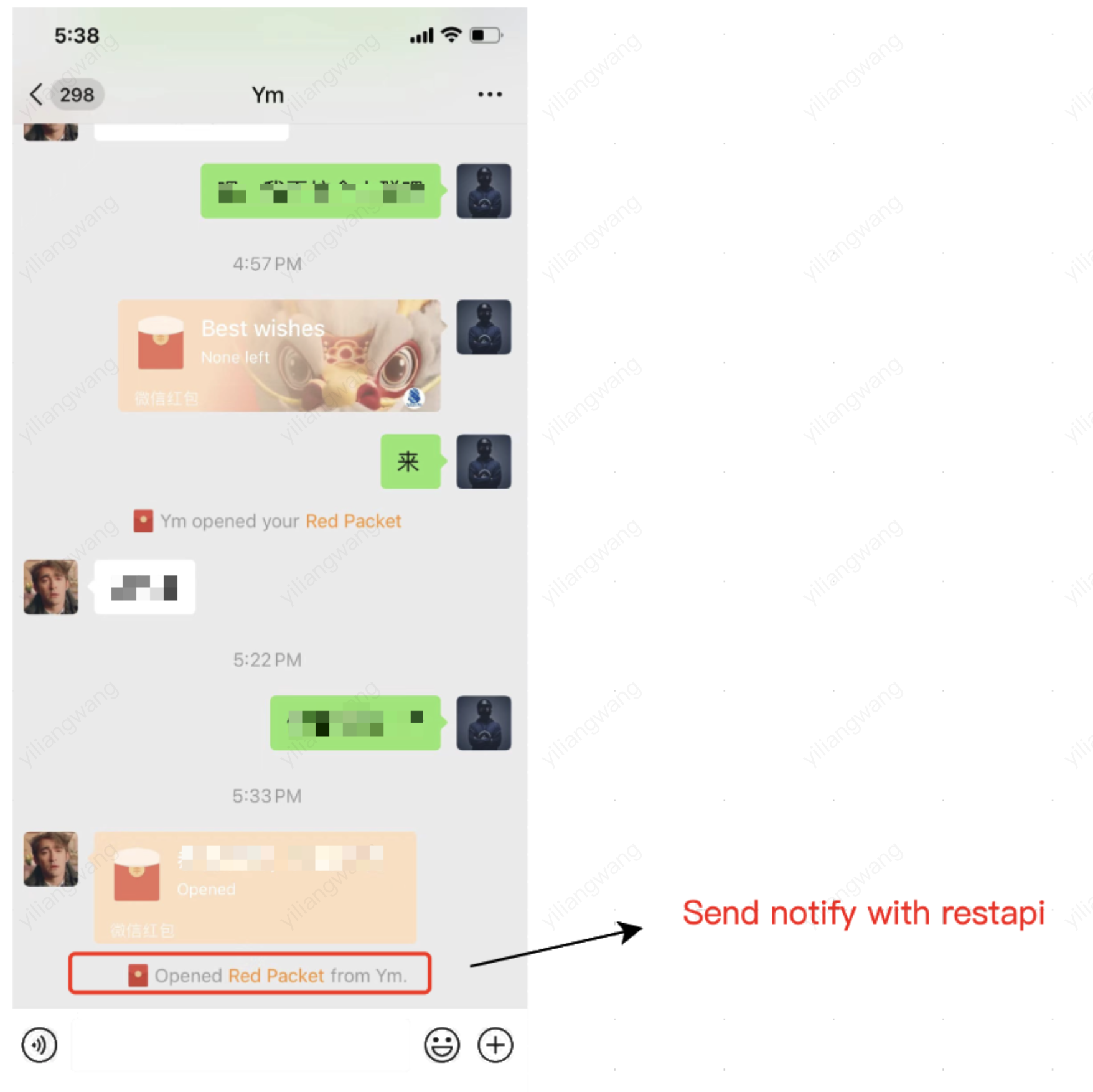

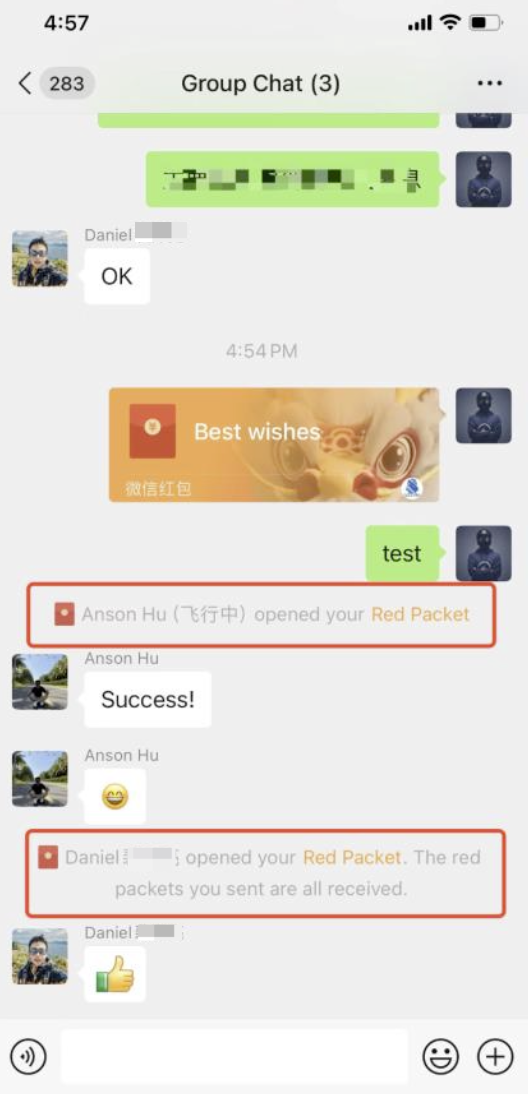

Sending Claim Notification via REST API

Use the server REST API to push claim notification messages to the sender:
One-on-One Red Packet: Use Send C2C Message REST API.
Group Red Packet: Use Send Group Message REST API.

Notification message example:

"Anson claimed your red packet"

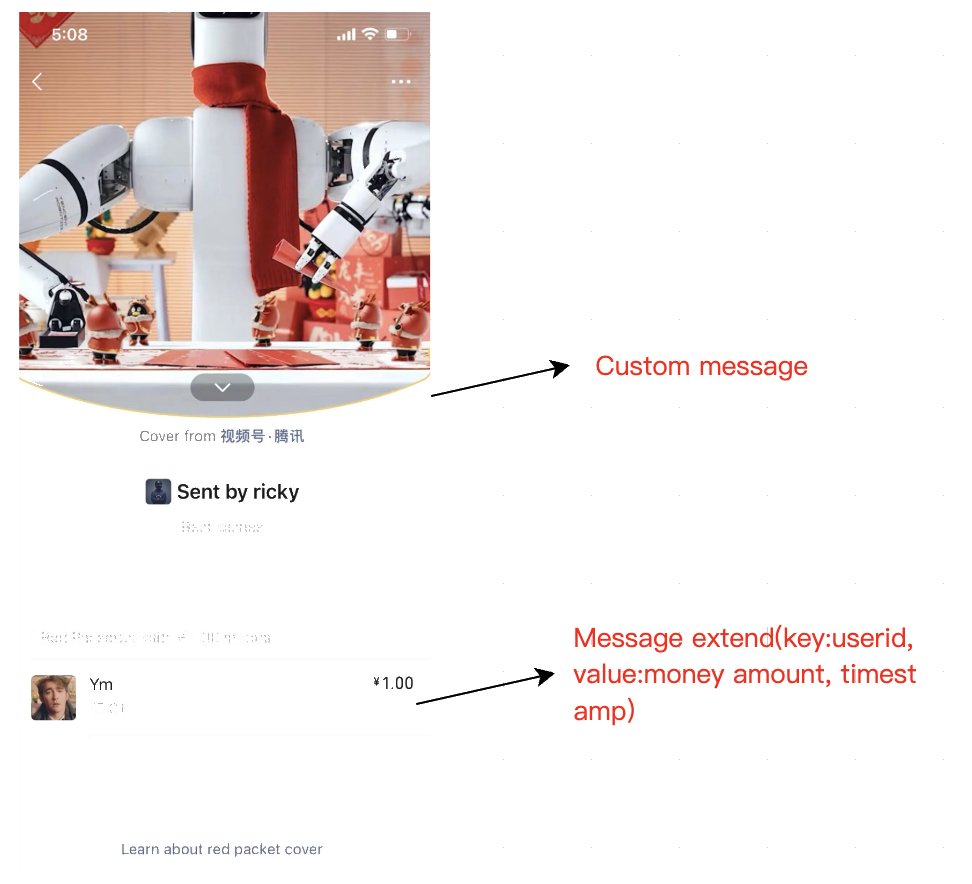

4. Red Packet Details Page

After a red packet is opened, the details page shows the cover image, sender, blessing message, total amount, and claim list. The claim list is retrieved from Message Extension Data.




Data Source

Displayed information includes:
Cover image, sender information, greeting message
Total amount
Claim list: claimant name, claimed amount, and claim time (from message extension data)

5. Complete Chat Workflow

The following diagram illustrates the complete workflow for one-on-one red packets, from sending to claiming, including status updates and claim notifications via REST API.




Group Red Packet

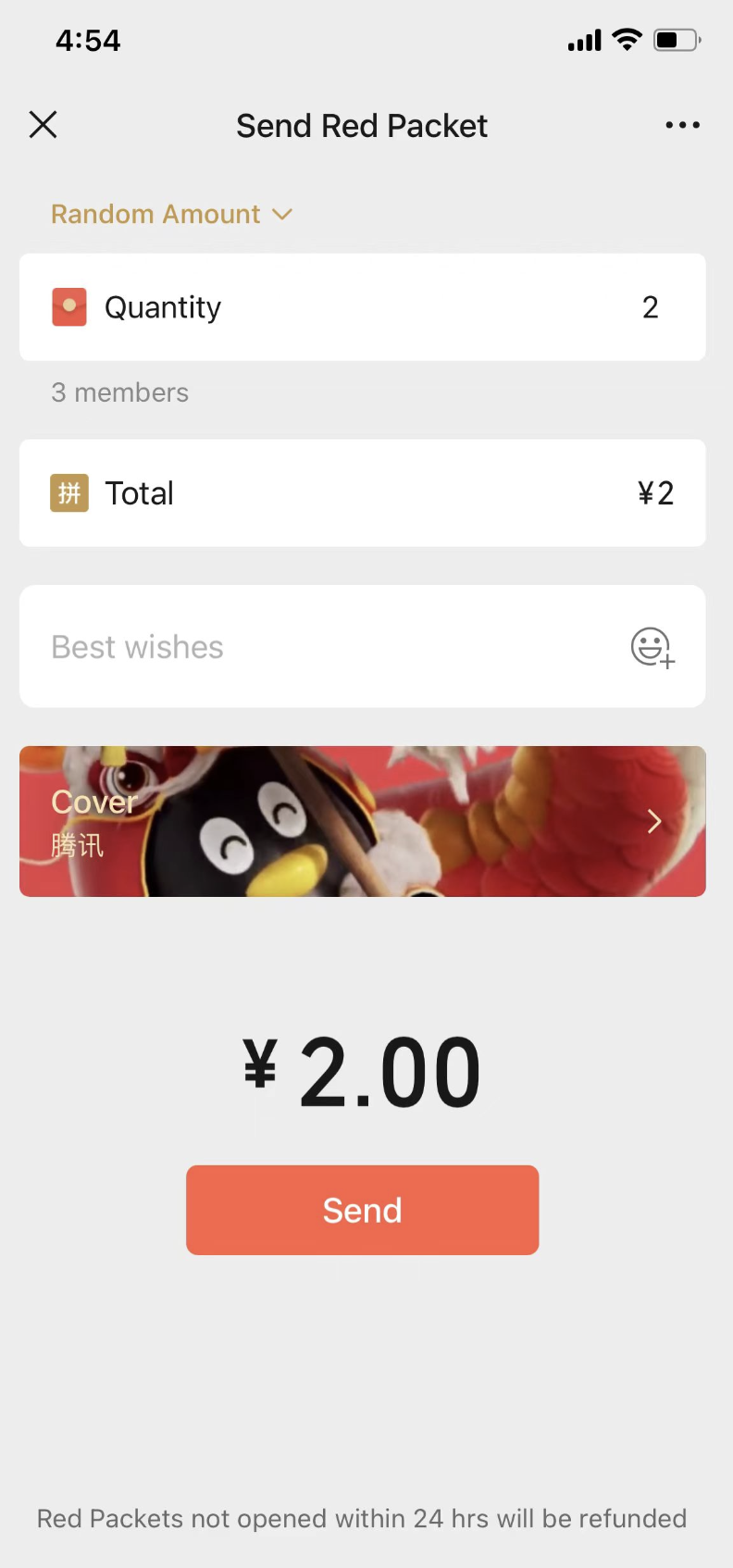

1. Sending a Group Red Packet

The sender selects random amount mode (Luckiest Draw), sets the quantity, total amount, greeting message, and cover. A tip at the bottom states "Red packets not claimed within 24 hours will be automatically refunded."




Implementation Steps

1. Client collects: total amount, quantity, greeting message, cover, and random amount flag.
2. Red Packet System calls the Payment System Deduction API to deduct the total amount.
3.
Red Packet System server sends the red packet as a custom message to the group using Send Group Message REST API, with From_Account set to sender user ID.

Example

The REST API request for group red packets is similar to the one-on-one scenario (see section 4.1), but uses Send Group Message REST API, sets GroupId to the target group, and adds quantity, total, and random_amount to the payload:
// POST https://console.tim.qq.com/v4/group_open_http_svc/send_group_msg
{
  "GroupId": "group_id",
  "From_Account": "sender_userid",
  "Random": 1287657,
  "MsgBody": [
    {
      "MsgType": "TIMCustomElem",
      "MsgContent": {
        "Data": "{\"BusinessID\":\"red_packet\",\"total\":2.00,\"quantity\":3,\"random_amount\":true,\"best_wishes\":\"Happy New Year！\",\"cover\":\"https://example.com/cover.png\",\"status\":\"Unopened\",\"packet_id\":\"rp_20260301_xyz789\"}"
      }
    }
  ],
  "SupportMessageExtension": 1
}

2. Claiming Group Red Packets

When a group member claims a red packet:
1. Red Packet System validates: Are any packets left? Has the user already claimed this red packet?
2. Red Packet System calculates the claim amount:
Random amount mode: Distribute funds randomly (a "double mean" algorithm is commonly used).
Last claim: The final claimant receives all remaining funds.
3. Red Packet System calls the Payment System Transfer API to transfer the calculated amount to the claimant.
4.
Red Packet System server saves the claim record via Set Group Message Extension REST API.
5.
Sends notification to sender via REST API:
Normal claim: "XX claimed your red packet"
Last claim: "XX claimed your red packet. All your red packets have been claimed."
6.
If all packets are claimed, Red Packet System server updates status to "None left" via Modify Group Message REST API.
All message modification, extension data updates, and notifications are handled by the Red Packet System server via REST API. Group chat uses dedicated group APIs with GroupId + MsgSeq parameters. Status transitions include "None left".

Updating Group Red Packet Status via REST API

For the final claim (all packets claimed), the Red Packet System server updates status to "None left":
{
  "GroupId": "group_id",
  "MsgSeq": 67890,
  "MsgBody": [
    {
      "MsgType": "TIMCustomElem",
      "MsgContent": {
        "Data": "{\"BusinessID\":\"red_packet\",\"total\":2.00,\"quantity\":3,\"random_amount\":true,\"best_wishes\":\"Happy New Year！\",\"cover\":\"https://example.com/cover.png\",\"status\":\"None left\",\"packet_id\":\"rp_20260301_xyz789\"}"
      }
    }
  ]
}

Saving Group Red Packet Claim Records via REST API

{
  "GroupId": "group_id",
  "MsgSeq": 67890,
  "OperateType": 1,
  "ExtensionList": [
    {
      "Key": "user_daniel",
      "Value": "1.40,1709312400"
    },
    {
      "Key": "user_anson",
      "Value": "0.10,1709312580"
    }
  ]
}

Sending Claim Notification via REST API (Group Red Packet)

Group red packets use Send Group Message REST API to push claim notifications in the group:
Normal claim: "Anson claimed your red packet"
Last claim: "Daniel claimed your red packet. All your red packets have been claimed."

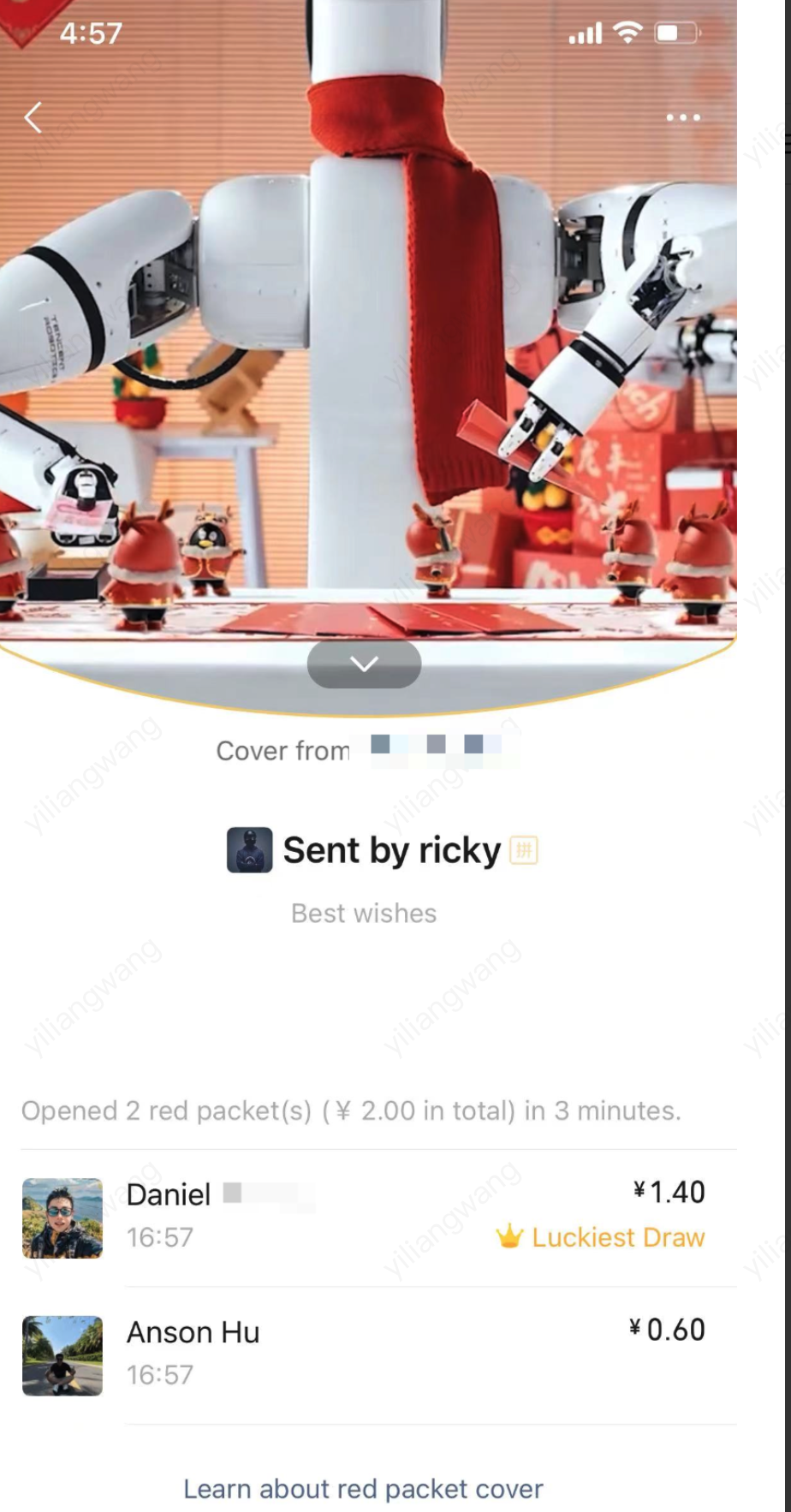

3. Group Red Packet Details Page

The group red packet details page displays the cover image, sender, blessing message, claim statistics, and claim list. The highest claim is marked as "Luckiest Draw".




Data Source

Displayed content includes:
Cover image, sender info, blessing message
Claim statistics (e.g., "Claimed 2 red packets, totaling $2.00, in 3 minutes")
Claim list: claimant name, avatar, claimed amount, claim time
Highest claim is labeled "Luckiest Draw"

Fetching Claimant Information

The message extension key is the claimant's userID. After retrieving the userID list from extension data, the client should call the Batch Get Group Member Info API to fetch avatars, nicknames, etc., for UI rendering.
Client: Call getGroupMembersInfo (Java / Swift) / Objective-C / C++), passing the extracted userID list to retrieve group member avatars (faceUrl), nicknames (nickName), etc., for the claim list UI.
Server: Alternatively, use Get Group Member Detailed Info REST API to batch fetch group member details.
Note:
Message Extension arrays support up to 300 elements, covering 99% of red packet scenarios. If the extension list exceeds 300, fetch claim details directly from your own red packet system rather than the extension.

4. Complete Group Chat Workflow

The diagram below shows the entire workflow for group red packets, from sending through all claims, including notifications for each claim and the "all red packets claimed" notice for the final claimant.




5. Differences Between Group and One-on-One Red Packets

Multiple claimants: Group red packets can be claimed by multiple members (up to quantity).
Amount distribution: In random mode, the red packet system calculates each claim amount randomly.
Status transitions: "Unopened" (not claimed) → "Opened" (partially claimed) → "None left" (all claimed).
Luckiest Draw: The member with the highest claim amount is highlighted as "Luckiest Draw" on the details page.

Payment System Integration

1. Packet Fund Management Account

Set up a dedicated Packet Fund Management Account to manage funds:
Send red packet: Deduct funds from the sender and store them temporarily in the fund management account.
Claim red packet: Transfer funds from the fund management account to the claimant.
Refund: Return unclaimed funds from the fund management account to the sender.

2. Payment System APIs

API
Invocation Timing
Description
Deduction API
Send red packet
Deduct funds from sender's balance to the fund management account.
Transfer API
Claim red packet
Transfer funds from the fund management account to the claimant.
Refund API
Refund on expiry (24h)
Return unclaimed funds to the sender after 24 hours.
Fund Flow API
Query/Audit
Retrieve transaction records for reconciliation and audits.

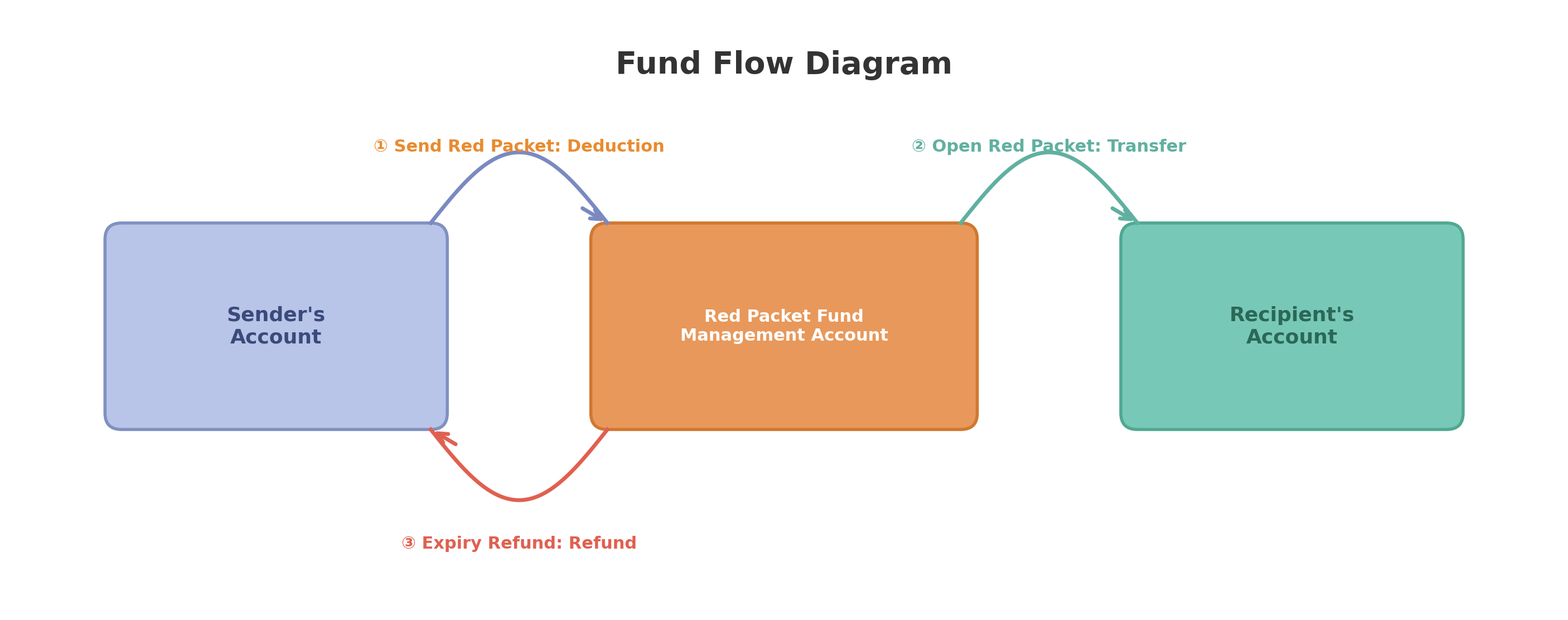

3. Fund Flow Diagram

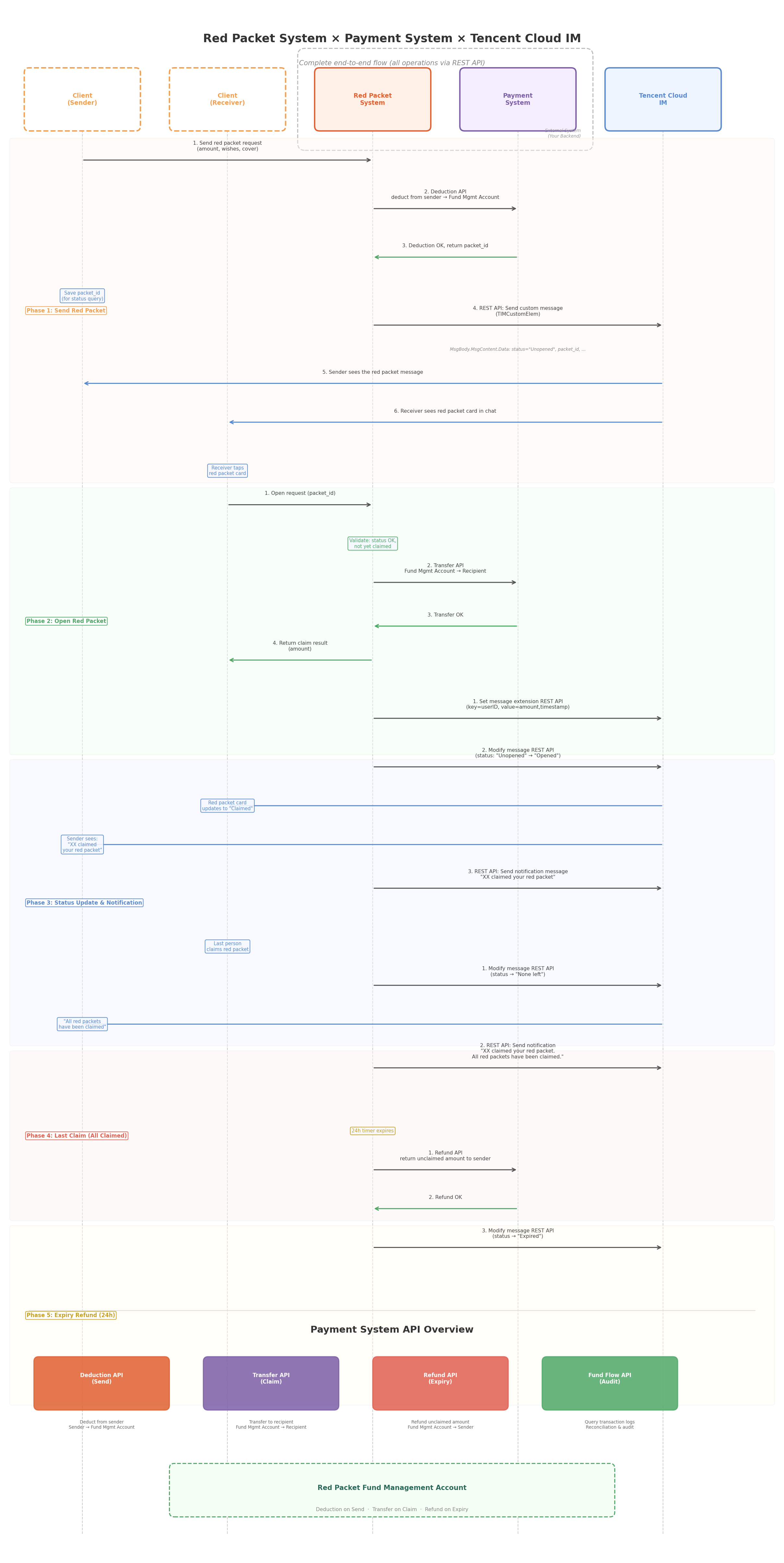

4. Complete System Workflow Diagram





Notes and Limitations

Category
Item
Description
General Rules
24-hour expiry refund
Funds not claimed within 24 hours are automatically refunded to the sender's account.
One claim per user
Each user can only claim the same red packet once; the system must validate before opening.
Status consistency
Keep red packet status synchronized across all clients using the message modification API.
Group Red Packet Specifics
Maximum claimants
Group red packets support up to 300 claimants (limited by message extension data capacity).
Concurrent claiming
The red packet system must safely handle concurrent claim requests. Use distributed locks or atomic operations to prevent over-claiming.
Random amount algorithm
In random mode, fairness and a minimum amount per packet must be ensured. "Double mean" algorithm is commonly used.
Luckiest Draw
The highest claimant is marked as "Luckiest Draw" in the details page.
Exception Handling
Deduction failure
Do not create the red packet or send a message; notify the sender of insufficient balance.
Transfer failure
Retry transfer. If failures persist, mark for manual reconciliation and do not update message status.
Message modification failure
Retry with exponential backoff. Status may be temporarily inconsistent, but funds are already processed.
Open red packet network timeout
Use idempotent design—identical packet_id + userid open requests must return the same result.
Security Best Practices
Server-side validation
All red packet operations (send, open, query) must be validated on the server. Never trust client-submitted amounts.
Idempotency design
Use packet_id + userid as the idempotency key when opening a red packet.
Rate limiting
Apply rate limiting to open red packet requests to prevent abuse.
Audit logs
Log all payment operations (deduction, transfer, refund) for reconciliation and dispute handling.
WebRTC Trtc Logo
Copyright © 2013-2026 Tencent RTC. All Rights Reserved.
  1. Privacy Policy
  3. Legal
  5. Cookie Policy
  7. Tencent Cloud
