Virtual Gifts（React Native）

GiftState is a dedicated module within AtomicXCore that manages gift interactions in live streaming rooms. This module enables you to implement a robust gift system in your live streaming application, supporting flexible monetization and enhanced audience engagement.

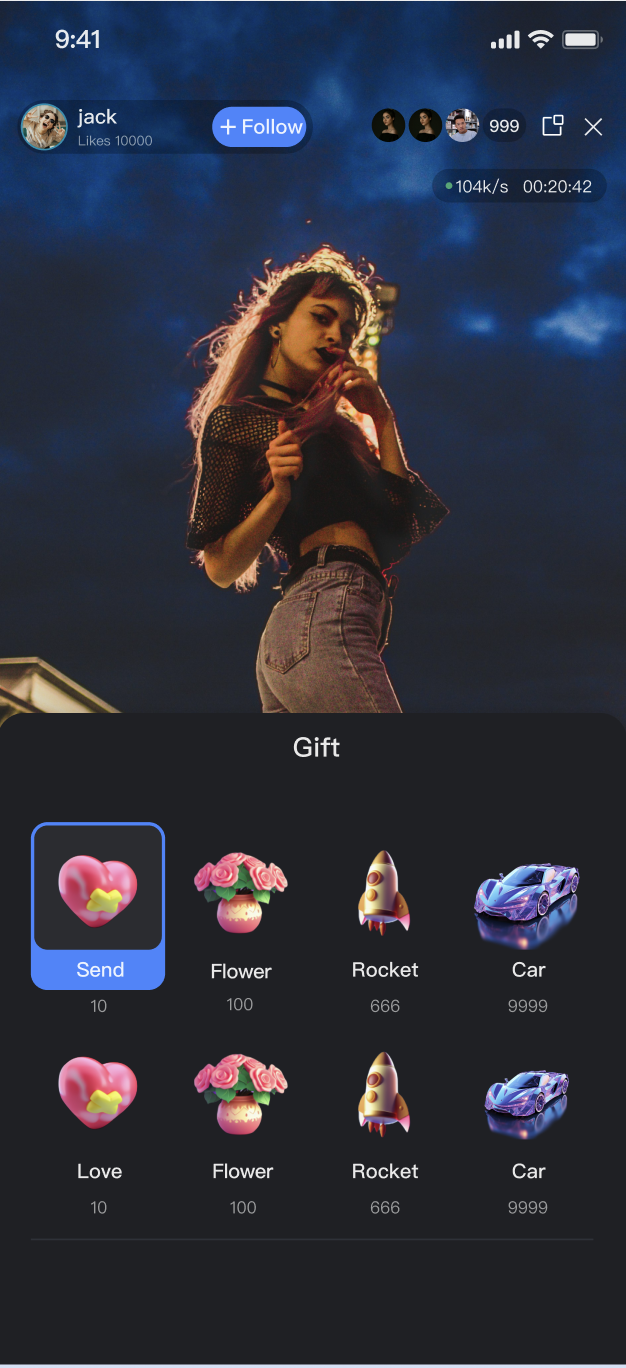

Gift Panel

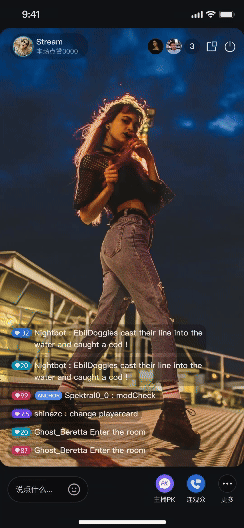

Barrage Gift
Full-Screen Gift
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
Core Features
Fetch Gift List: Retrieve gift panel data from your server, including gift categories and details.
Send Gifts: Audience members can select and send gifts to the host, specifying a quantity.
Gift Event Broadcast: Receive real-time gift events in the room, used for gift AR playback and live comment notifications.
Implementation Steps
Step 1: Integrate the Component
Note:
To use the Gift System, you must enable TUILiveKit Multi-Guest Edition or Large-Scale Live Edition. The number of configurable gifts depends on your package. For details, see the Gift System section in the Feature & Billing Description.
Live streaming: Refer to Quick Access for seamless integration with AtomicXCore and service access.
Voice chat room: Refer to Quick Access for integration with AtomicXCore and access completed.
Step 2: Initialize and Listen for Gift Events
Obtain the GiftState instance and set up listeners to handle gift events and gift list changes.
Implementation
1. Get Instance: Call useGiftState(liveID) to retrieve the GiftState instance for the current live room.
2. Subscribe to Events: Use addGiftListener to subscribe to the onReceiveGift event.
3. Listen to State: Monitor the reactive usableGifts list to update your UI.
Code Example
import { useEffect } from 'react';
import { useGiftState } from 'react-native-tuikit-atomic-x/lib/module/atomic-x/state/GiftState';
﻿
// Get GiftState instance by liveID
const { addGiftListener, removeGiftListener, usableGifts } = useGiftState(liveID);
﻿
useEffect(() => {
  const onReceiveGift = (event) => {
    const gift = JSON.parse(event.gift);
    const sender = JSON.parse(event.sender);
    console.log('Gift received', gift, 'Sender', sender);
    // Handle gift logic here, e.g., play SVGA gifts, show popups for other formats
  };
﻿
  addGiftListener('onReceiveGift', onReceiveGift);
﻿
  return () => {
    removeGiftListener('onReceiveGift', onReceiveGift);
  };
}, []);
﻿
// Listen for real-time changes in usableGifts to drive UI updates
useEffect(() => {
  console.log(usableGifts);
}, [usableGifts]);
Gift List Structure Parameters
GiftCategory Parameter Description
Parameter
Type
Description
categoryID
string
Unique identifier for the gift category.
name
string
Display name of the gift category.
desc
string
Description of the gift category.
extensionInfo
Record<string: string>
Extension info fields.
giftList
[string]
Array of Gift objects in this category.
Gift Parameter Description
Parameter
Type
Description
giftID
string
Unique identifier for the gift.
name
string
Display name of the gift.
desc
string
Description of the gift.
iconURL
string
Gift icon URL.
resourceURL
string
Gift AR animation resource URL.
level
number
Gift level.
coins
number
Gift price.
extensionInfo
Record<string: string>
Extension info fields.
Step 3: Fetch Gift List
Use the refreshUsableGifts method to retrieve the gift list from your server.
Implementation
1. Call API: Invoke refreshUsableGifts at the appropriate time (such as when the page loads).
2. Handle Callbacks: Optionally handle onSuccess and onError to track API results.
3. Receive Data: When the fetch succeeds, the updated usableGifts list is automatically available via the listener from Step 2.
Code Example
import { useEffect } from 'react';
import { useGiftState } from 'react-native-tuikit-atomic-x/lib/module/atomic-x/state/GiftState';
﻿
// Get GiftState instance by liveID
const { refreshUsableGifts } = useGiftState(liveID);
﻿
useEffect(() => {
  refreshUsableGifts({
    liveID: liveID, // Current live room liveID
    onSuccess: () => {
      console.log('Gift list fetched successfully');
      // State reactive data will update automatically on success
    },
    onError: (error) => {
      console.log('Failed to fetch gift list', error);
    },
  });
}, []);
Step 4: Send Gifts
When a user selects a gift in the gift panel and clicks Send, call the sendGift API.
Implementation
1. Get Parameters: Obtain the selected giftID and count from the UI.
2. Call API: Invoke the sendGift API.
3. Handle Callbacks: Handle failures (such as insufficient balance) in the onError callback. UI updates (animations, live comments) should be handled via the onReceiveGift event.
Code Example
import { useGiftState } from 'react-native-tuikit-atomic-x/lib/module/atomic-x/state/GiftState';
﻿
// Get GiftState instance by liveID
const { sendGift } = useGiftState(liveID);
﻿
// User sends a gift (function receives giftID as parameter)
const handleSendGift = (giftID) => {
  sendGift({
    liveID: liveID, // Current live room liveID
    giftID: giftID,
    count: 1,
    onSuccess: () => {
      console.log(`Gift ${giftID} sent successfully`);
    },
    onError: (error) => {
      console.log('Failed to send gift', error);
    },
  });
};
sendGift API Parameters
Parameter Name
Type
Description
liveID
string
The current live room's liveID.
giftID
string
Unique identifier of the gift.
count
number
Quantity to send.
onSuccess
Function
Callback for successful send.
onError
Function
Callback for failed send.
Advanced Features
The capabilities of GiftState are tightly coupled with your business backend. This section provides guidance on creating a dynamic, engaging gift system by combining server configuration and client-side implementation.
Gift Asset Configuration
Customize the available gift types, categories, names, icons, pricing, and animation effects for your live rooms to fit your operational and branding requirements.
Implementation
1. Server-Side Configuration: Use the LiveKit server REST API to manage gift information, categories, and multi-language support. See the Gift Configuration Guide.
2. Client Fetch: On the client, call refreshUsableGifts to retrieve configuration data.
3. UI Display: Use the retrieved List<GiftCategory> to populate the gift panel.

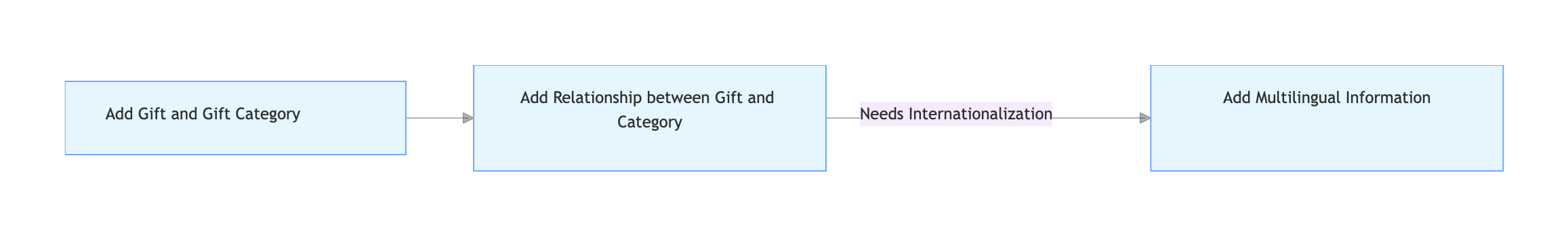

Configuration Sequence Diagram
﻿
Related REST API Interfaces Overview
Interface Category
Interface
Request Example
​Gift Management
Add Gift Information
﻿Example﻿
﻿
Delete Gift Information
﻿Example﻿
﻿
Query Gift Information
﻿Example﻿
Gift Category Management
Add Gift Category Information
﻿Example﻿
﻿
Delete Specific Gift Category Information
﻿Example﻿
﻿
Get Specific Gift Category Information
﻿Example﻿
Gift Relationship Management
Add Relationship between a Specific Gift Category and Gift
﻿Example﻿
﻿
Delete Relationship between a Specific Gift Category and Gift
﻿Example﻿
﻿
Get Gift Relationships under a Specific Gift Category
﻿Example﻿
Gift Multi-language Management
Add Gift Multi-language Information
﻿Example﻿
﻿
Delete Specific Gift Multi-language Information
﻿Example﻿
﻿
Get Gift Multi-language Information
﻿Example﻿
﻿
Add Gift Category Multi-language Information
﻿Example﻿
﻿
Delete Specific Gift Category Multi-language Information
﻿Example﻿
﻿
Get Gift Category Multi-language Information
﻿Example﻿
Billing and Gift Deduction Process
When an audience member sends a gift, their account balance must be sufficient, and the deduction must be completed before gift AR playback and broadcast.
Implementation
1. Backend Callback Configuration: Configure your billing system's callback URL in the LiveKit backend. See Callback Configuration Documentation.
2. Client Send: The client calls sendGift.
3. Backend Interaction: The LiveKit backend calls your callback URL; your billing system processes the deduction and returns the result.
4. Result Synchronization: If successful, AtomicXCore broadcasts the onReceiveGift event; if failed, the completion callback of sendGift receives an error.

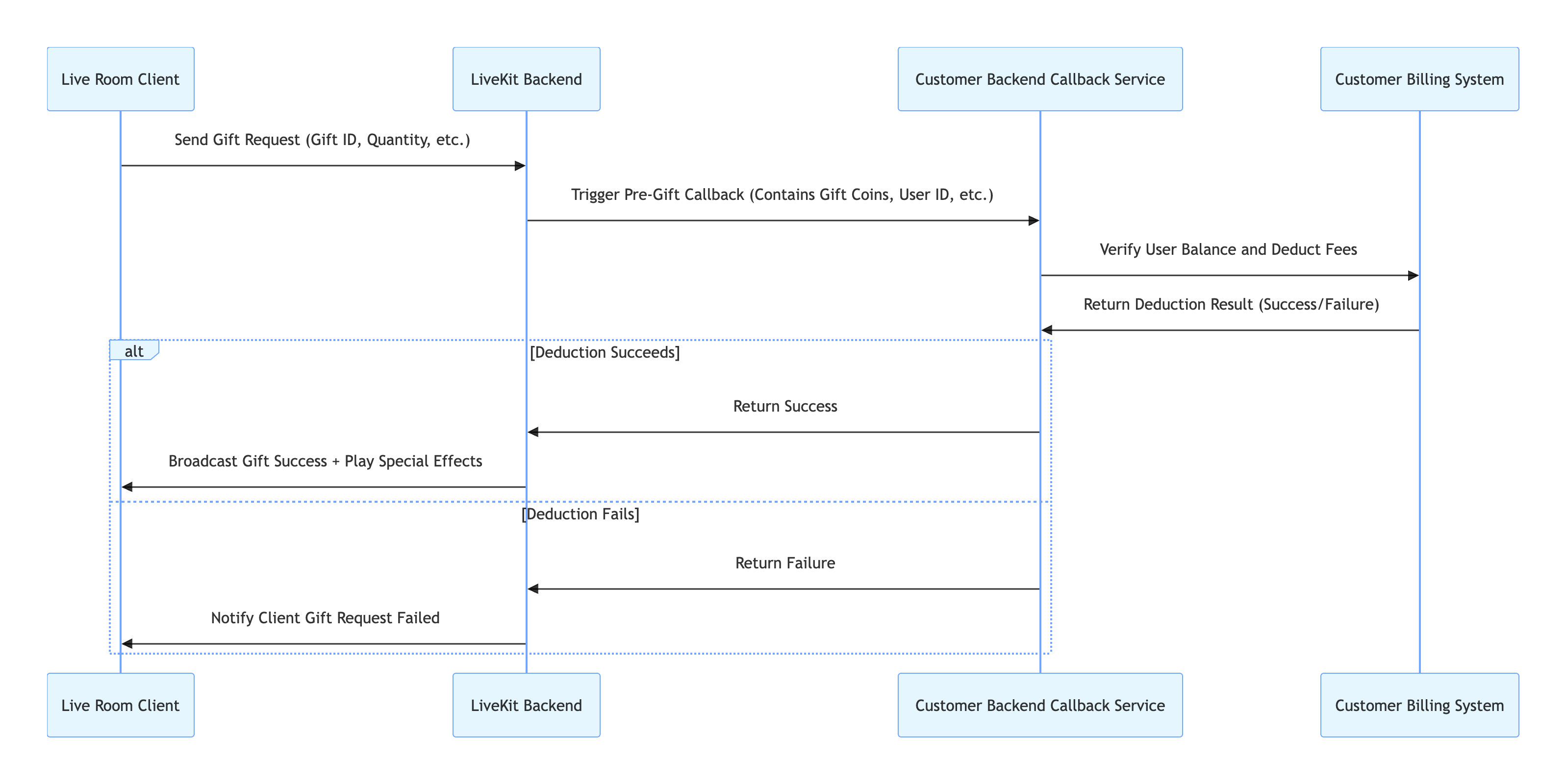

Call Flow Diagram
﻿
REST API Overview
API
Description
Request Example
Callback Configuration > Pre-Gift Send Callback
Your backend uses this callback to validate and allow gift sending.
﻿Call Example﻿
Implement Full-Screen Gift Animation Playback
When a user sends high-value gifts like "Rocket" or "Carnival" in the live room, play visually striking full-screen gift AR animations (such as SVGA) to energize the audience.
AtomicXCore includes an SVGA animation player for gift AR effects. Integrate it as follows.
Using SVGAAnimationView
1. Listen for Gift Events: Use addGiftListener to subscribe to the onReceiveGift event.
2. Parse and Play: When an onReceiveGift event is received, check if gift.resourceURL points to an SVGA file. If so, pass gift.resourceURL to SVGAAnimationView to play the animation.
Code Example
import { useEffect, useRef, useState } from 'react';
import { useGiftState } from 'react-native-tuikit-atomic-x/lib/module/atomic-x/state/GiftState';
import { SVGAAnimationView } from 'react-native-tuikit-atomic-x/lib/module/components/SVGAAnimationView';
﻿
// Get GiftState instance by liveID
const { addGiftListener, removeGiftListener } = useGiftState(liveID);
const svgaRef = useRef(null);
const [showSVGA, setShowSVGA] = useState(false);
﻿
useEffect(() => {
  const onReceiveGift = (event) => {
    const gift = JSON.parse(event.gift);
    if (gift.resourceURL) {
      setShowSVGA(true);
      setTimeout(() => {
        svgaRef.current?.startAnimation(gift.resourceURL);
      }, 100);
    }
  };
﻿
  addGiftListener('onReceiveGift', onReceiveGift);
﻿
  return () => {
    removeGiftListener('onReceiveGift', onReceiveGift);
  };
}, []);
﻿
// Add full-screen SVGA playback layer in JSX
{showSVGA ? (
  <SVGAAnimationView
    ref={svgaRef}
    style={{ position: 'absolute', top: 0, left: 0, right: 0, bottom: 0 }}
    onFinished={() => setShowSVGA(false)}
  />
) : null}
Display Gift Send Messages in Live Comments
When a user sends a gift, the animation is played and a system message appears in the live comments area, such as "[Audience Nickname] sent [Gift Name] x [Quantity]", visible to all viewers.
Implementation
1. Listen for Events: Use addGiftListener to subscribe to the onReceiveGift event.
2. Get Live Comments State: Use useBarrageState(liveID) to retrieve the instance for the current room.
3. Compose Message: Build a message struct with textContent (e.g., "[sender.userName] sent [gift.name]").
4. Insert Locally: Call barrageState.appendLocalTip(message: giftTip) to add the message to the local list.
Code Example
import { useEffect } from 'react';
import { useGiftState } from 'react-native-tuikit-atomic-x/lib/module/atomic-x/state/GiftState';
import { useBarrageState } from 'react-native-tuikit-atomic-x/lib/module/atomic-x/state/BarrageState';
﻿
// Get GiftState instance by liveID
const { addGiftListener, removeGiftListener } = useGiftState(liveID);
// Get BarrageState instance by liveID
const { appendLocalTip } = useBarrageState(liveID);
﻿
useEffect(() => {
  const onReceiveGift = (event) => {
    const gift = JSON.parse(event.gift);
    const sender = JSON.parse(event.sender);
    console.log('Gift received', gift, 'Sender', sender);
    appendLocalTip({
      liveID: liveID, // Current live room liveID
      message: {
        textContent: `${sender.userName || sender.userID} sent ${gift.name || gift.giftID}`,
        sender: {
          userID: sender.userID || '',
          userName: sender.userName || '',
          avatarURL: sender.avatarURL || '',
        },
        messageType: 0,
        sequence: Math.floor(Date.now() / 1000),
        timestampInSecond: Math.floor(Date.now() / 1000),
        liveID: liveID,
      },
      onSuccess: () => {},
      onError: (error) => {
        console.log('Failed to insert gift live comment:', error);
      },
    });
  };
﻿
  addGiftListener('onReceiveGift', onReceiveGift);
﻿
  return () => {
    removeGiftListener('onReceiveGift', onReceiveGift);
  };
}, []);
API Documentation
For detailed information about all public interfaces, properties, and methods of GiftState and related classes, refer to the API documentation provided with AtomicXCore. The relevant Stores referenced in this guide are:
State
Feature Description
API Documentation
GiftState
Gift interaction: fetch gift list, send/receive gifts, listen for gift events (including sender and gift details).
API Documentation
BarrageState
Live comments: send text/custom comments, maintain comment list, real-time state updates.
API Documentation
FAQs
The gift list in GiftState is empty. What should I do?
You need to call refreshUsableGifts() to fetch the gift list from your business backend. Gift data must be configured via your backend's REST API.
How do I implement multilingual gift display (e.g., Chinese, English)?
GiftState provides the setLanguage(language: string) method. Call this before refreshUsableGifts, passing the target language code (such as "en" or "zh-CN"). The server will return gift names and descriptions in the specified language.
I called sendGift to send a gift, but the gift animation played twice. Why?
The onReceiveGift event is broadcast to all room members, including the sender. If you trigger UI updates both in the onSuccess callback of sendGift and in the onReceiveGift event handler, you'll see duplicated effects.
Best Practice: Handle UI updates (like playing animations or showing live comment prompts) only in the onReceiveGift event handler. Use the onError callback of sendGift to notify users of failures (such as "Send failed" or "Insufficient balance").
Where is the gift deduction logic implemented?
Gift deduction is managed entirely by your custom billing system. AtomicXCore connects to your backend via callback. When the client calls sendGift, your backend completes the deduction and returns the result to the AtomicXCore backend, which then decides whether to broadcast the gift event.
Will gift notifications be blocked by mute or frequency control?
No. Gift notifications (onReceiveGift event) are not affected by mute or message frequency control and are reliably delivered.
What should I do if gift animation playback lags?
Check the size of your SVGA files. The basic animation player recommends files under 10MB. If the file is too large or the animation is complex, consider using the advanced effects player provided by TUILiveKit for optimal performance.

Parameter	Type	Description
`categoryID`	`string`	Unique identifier for the gift category.
`name`	`string`	Display name of the gift category.
`desc`	`string`	Description of the gift category.
`extensionInfo`	`Record<string: string>`	Extension info fields.
`giftList`	`[string]`	Array of Gift objects in this category.

Parameter	Type	Description
`giftID`	`string`	Unique identifier for the gift.
`name`	`string`	Display name of the gift.
`desc`	`string`	Description of the gift.
`iconURL`	`string`	Gift icon URL.
`resourceURL`	`string`	Gift AR animation resource URL.
`level`	`number`	Gift level.
`coins`	`number`	Gift price.
`extensionInfo`	`Record<string: string>`	Extension info fields.

Parameter Name	Type	Description
`liveID`	`string`	The current live room's `liveID`.
`giftID`	`string`	Unique identifier of the gift.
`count`	`number`	Quantity to send.
`onSuccess`	`Function`	Callback for successful send.
`onError`	`Function`	Callback for failed send.

Virtual Gifts（React Native）

Core Features

Implementation Steps

Step 1: Integrate the Component

Step 2: Initialize and Listen for Gift Events

Implementation

Code Example

Gift List Structure Parameters

Step 3: Fetch Gift List

Implementation

Code Example

Step 4: Send Gifts

Implementation

Code Example

`sendGift` API Parameters

Advanced Features

Gift Asset Configuration

Implementation

Configuration Sequence Diagram

Related REST API Interfaces Overview

Billing and Gift Deduction Process

Implementation

Call Flow Diagram

REST API Overview

Implement Full-Screen Gift Animation Playback

Using SVGAAnimationView

Code Example

Display Gift Send Messages in Live Comments

Implementation

Code Example

API Documentation

FAQs

The gift list in `GiftState` is empty. What should I do?

How do I implement multilingual gift display (e.g., Chinese, English)?

I called sendGift to send a gift, but the gift animation played twice. Why?

Where is the gift deduction logic implemented?

Will gift notifications be blocked by mute or frequency control?

What should I do if gift animation playback lags?

Interface Category	Interface	Request Example
Gift Management	Add Gift Information	Example
		Delete Gift Information	Example
		Query Gift Information	Example
Gift Category Management	Add Gift Category Information	Example
		Delete Specific Gift Category Information	Example
		Get Specific Gift Category Information	Example
Gift Relationship Management	Add Relationship between a Specific Gift Category and Gift	Example
		Delete Relationship between a Specific Gift Category and Gift	Example
		Get Gift Relationships under a Specific Gift Category	Example
Gift Multi-language Management	Add Gift Multi-language Information	Example
		Delete Specific Gift Multi-language Information	Example
		Get Gift Multi-language Information	Example
		Add Gift Category Multi-language Information	Example
		Delete Specific Gift Category Multi-language Information	Example
		Get Gift Category Multi-language Information	Example

API	Description	Request Example
Callback Configuration > Pre-Gift Send Callback	Your backend uses this callback to validate and allow gift sending.	Call Example

State	Feature Description	API Documentation
GiftState	Gift interaction: fetch gift list, send/receive gifts, listen for gift events (including sender and gift details).	API Documentation
BarrageState	Live comments: send text/custom comments, maintain comment list, real-time state updates.	API Documentation

Gift Panel	Barrage Gift	Full-Screen Gift
