Run Sample Demo

This article will guide you on how to quickly run through the Audio and Video Call Demo. By following this document, you can have the Demo up and running in 10 minutes, and ultimately experience an Audio and Video Call feature with a complete UI interface.

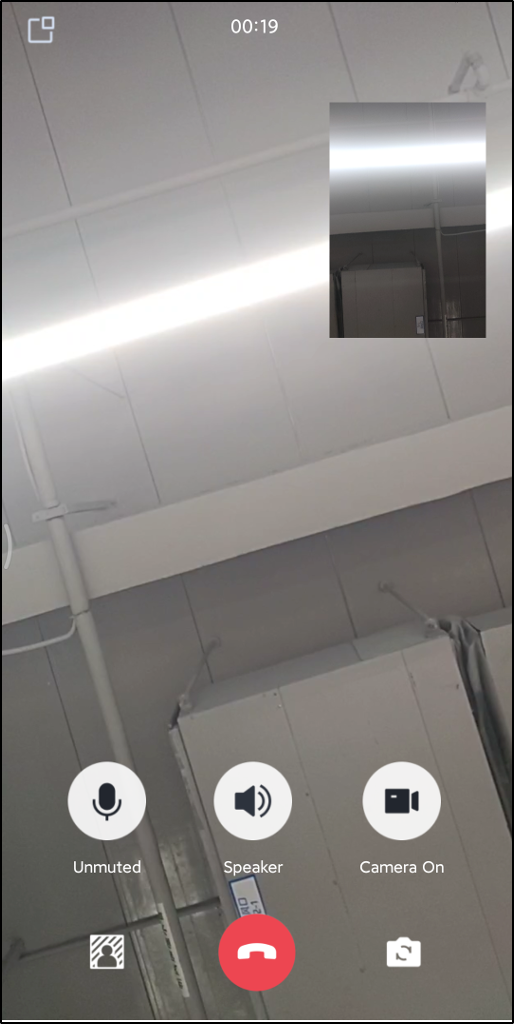

Caller

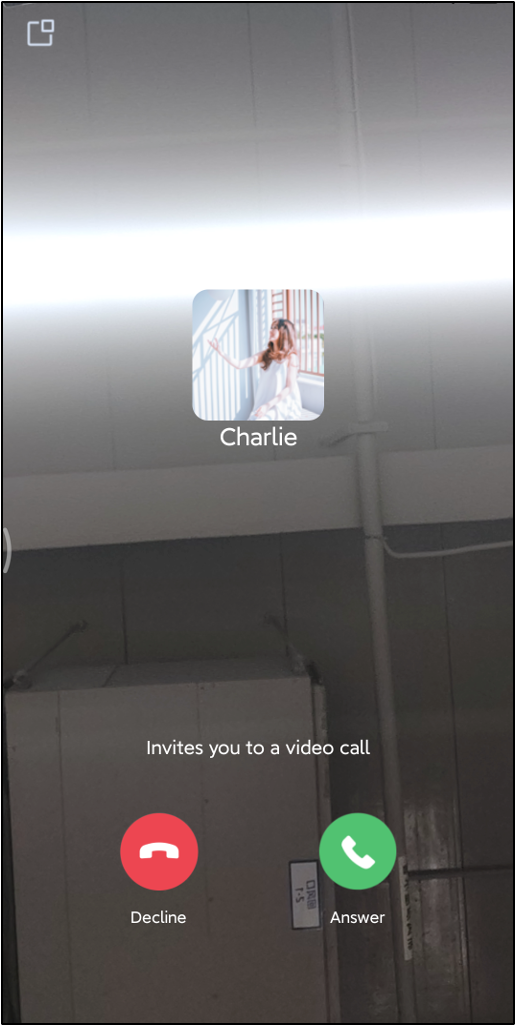

Callee







Environment preparations

Android 5.0 (SDK API level 21) or above.
Gradle 4.2.1 or later.
Two Android 5.0 or newer devices.

Step 1: Download the Demo

1. Download the TUICallKit Demo source code from GitHub, or directly run the following command in the command line:

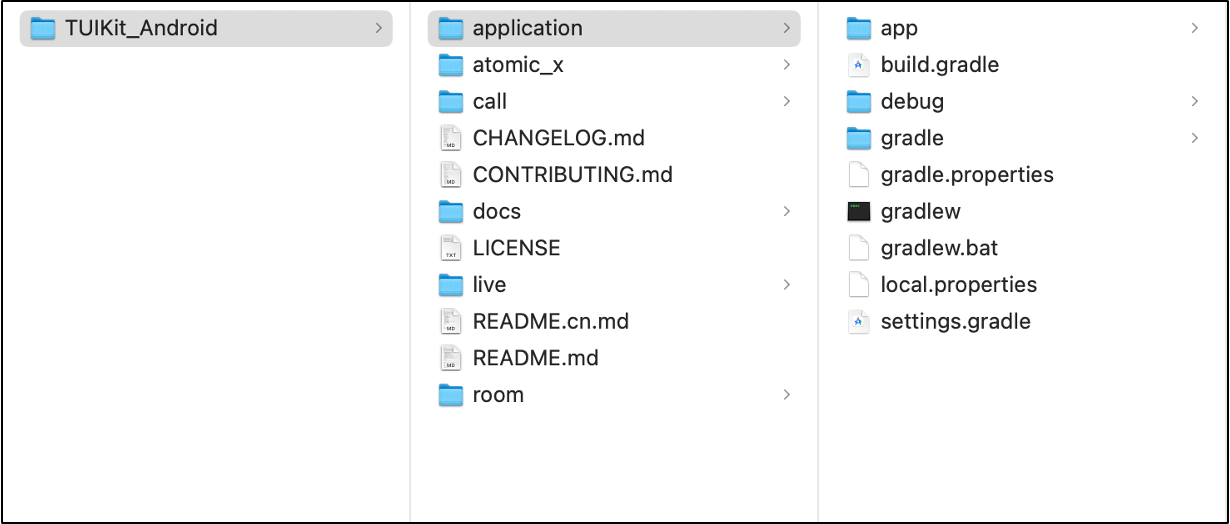

2. Open the TUICallKit Android project through Android Studio:




Step 2: Configure the Demo

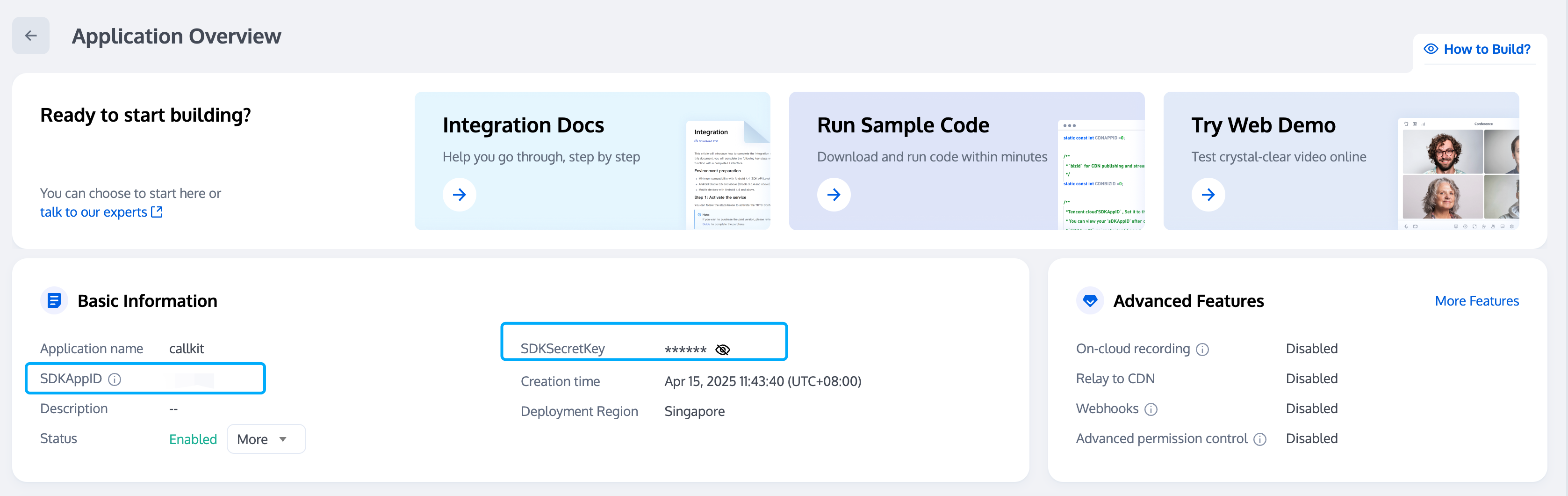

1. Activate the TRTC service, obtain the SDKAppID and SDKSecretKey.

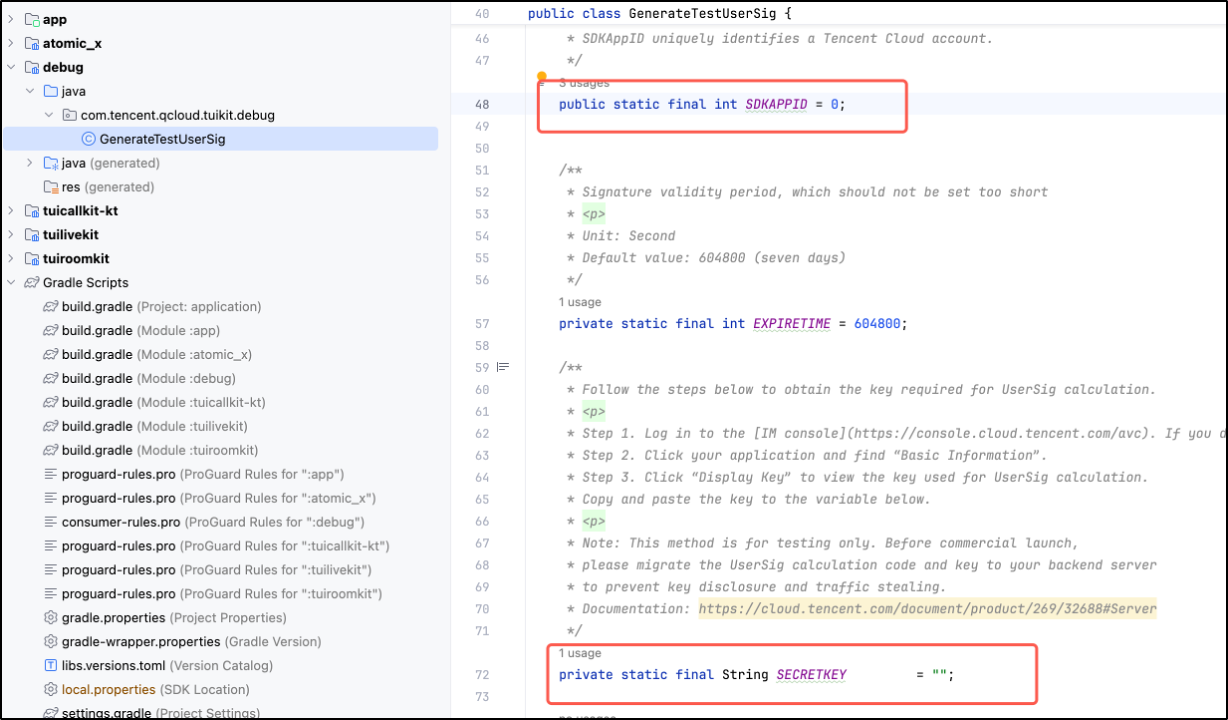

2. Open the Android/debug/src/main/java/com/tencent/qcloud/tuikit/debug/GenerateTestUserSig.java file, and enter the SDKAppID and SDKSecretKey obtained when activating the service:




Step 3: Running the Demo

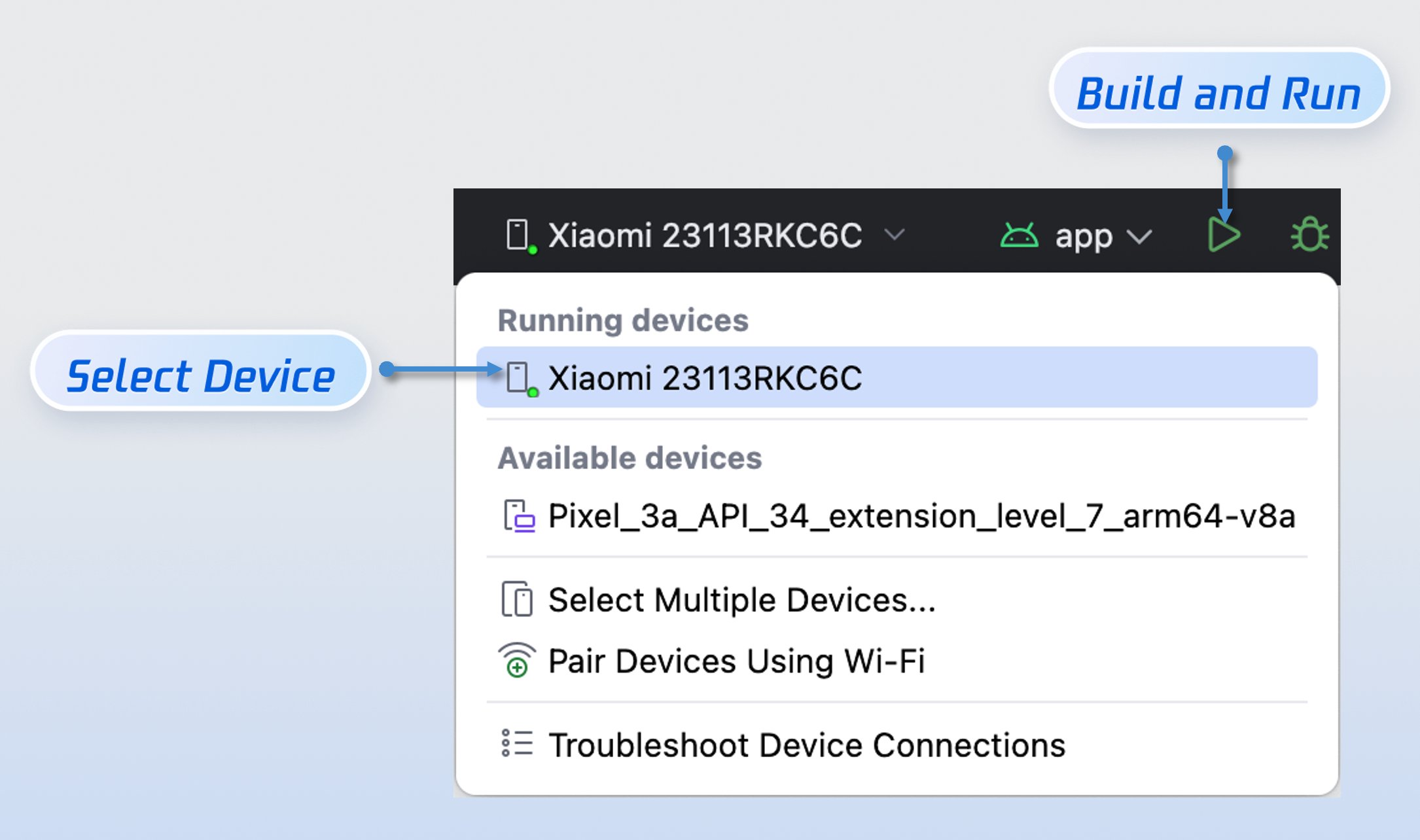

1. In the top right corner of Android Studio, select the device you want to run the Demo on as shown below:



2. After selecting, click Run to execute the TUICallKit Android Demo on the target device.
3. Once the Demo successfully runs on the device, you can initiate a call by following these steps:

Make the first call

Note:
To experience the complete audio and video calling process, please log into the Demo on two devices as two different users, with one acting as the caller and the other as the callee.

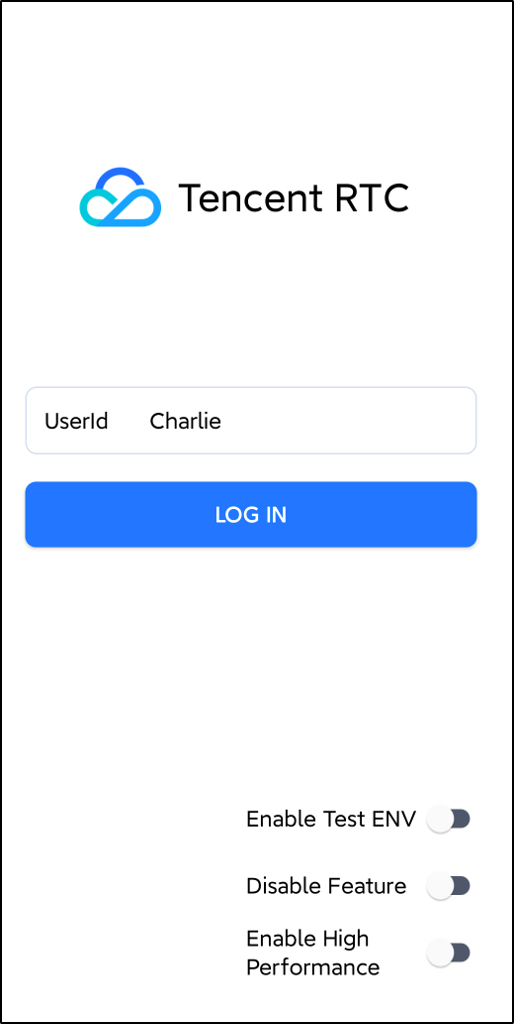

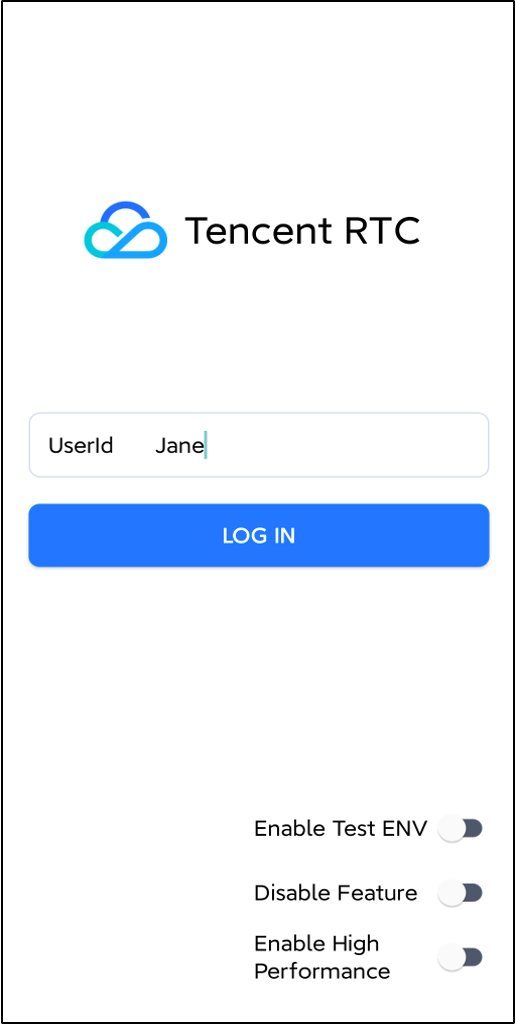

1. Log in & Signup

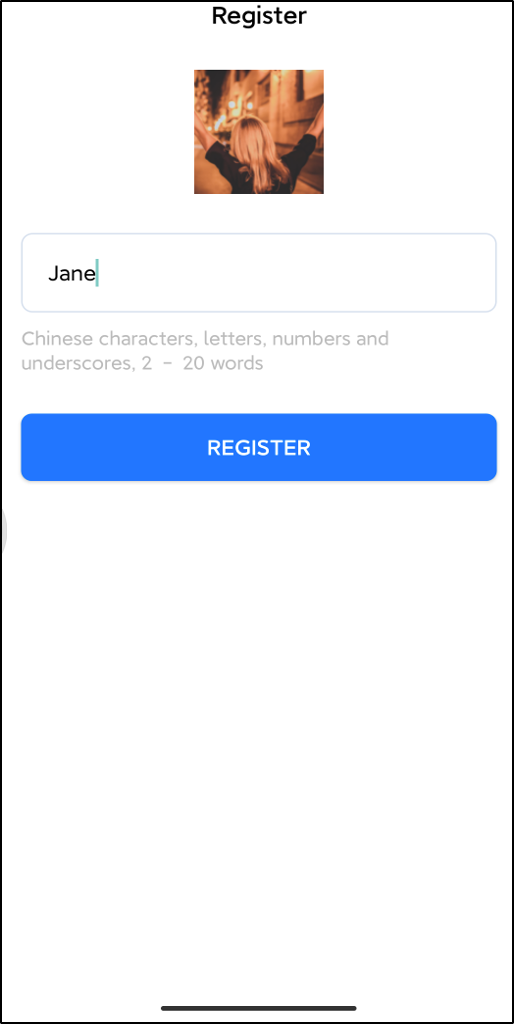

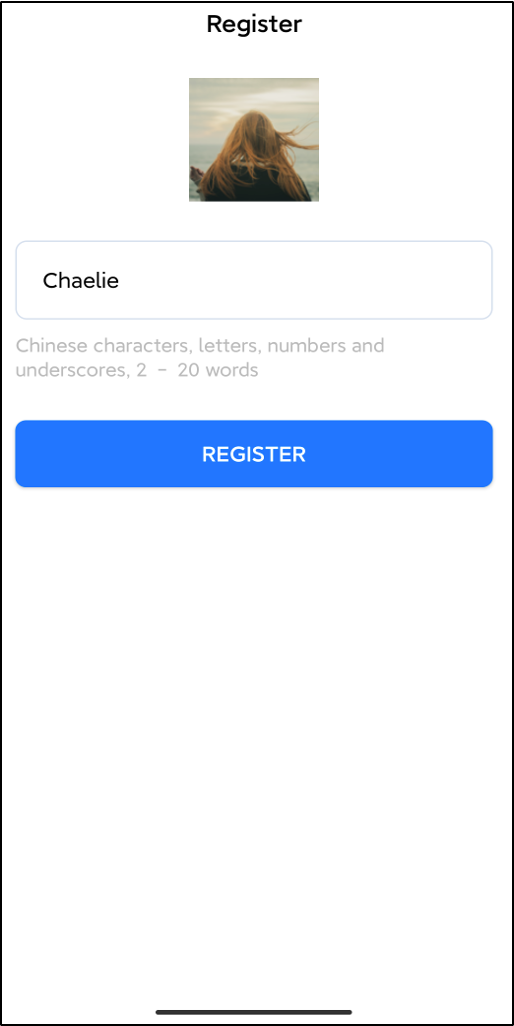

Please enter the ID at the User ID. If your current User ID has not been used before, you will be taken to the Signup screen, where you can set your own avatar and nickname.



Note:
Try to avoid setting your User ID to simple strings like "1", "123", "111", as TRTC does not support the same User ID being logged into from multiple devices. Such User IDs like "1", "123", "111" are easily occupied by your colleagues during collaborative development, leading to login failures. Therefore, we recommend setting highly recognizable User IDs while debugging.
2. Make a phone call

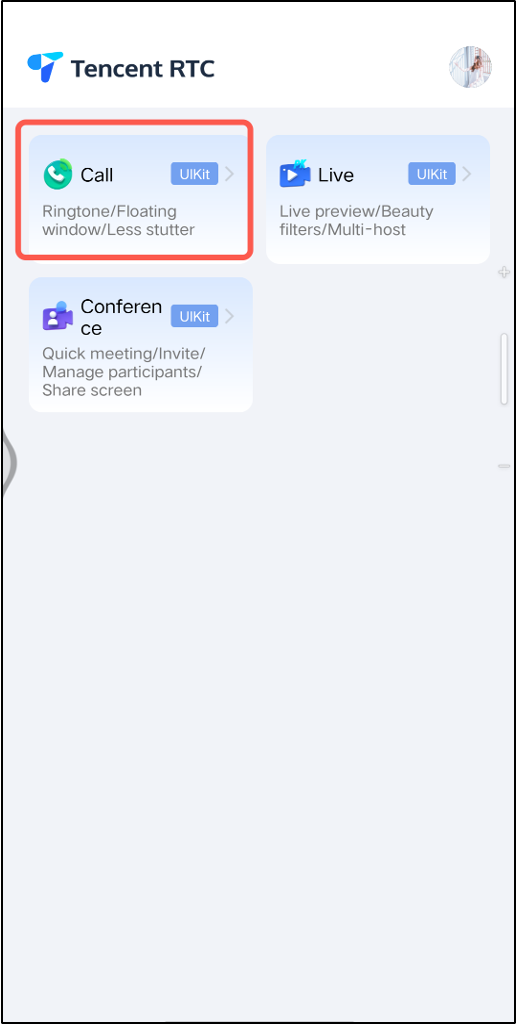

2.1 The caller should click 1V1 Call on the interface, enter the callee's User ID in the pop-up interface, and select the desired call type.
2.2 Click Initiate Call.
